Connectors

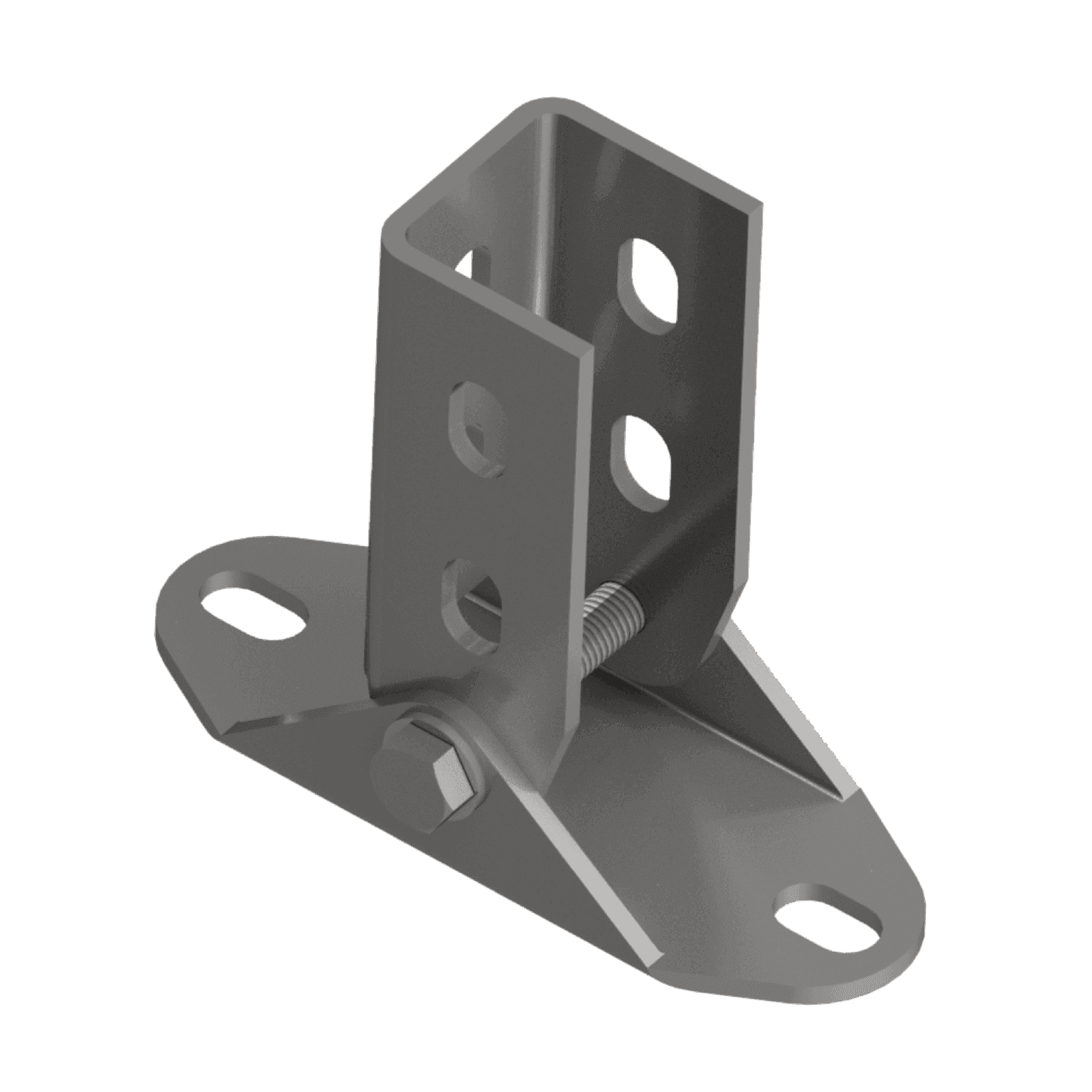

FXR Variable Saddle Flange
Variable supporting flange for FXR Mounting Rails
- Finish
- Galvanized, HDG
- Variants
- 4
Application
- Ideal for bracing installation for FXR Mounting Rail structures and seismic support installations.
- Structural connection of FXR Mounting Rails with any supporting material
- Suitable for inclined roof/ceilings in PEB and RCC structures
Features & benefits
Increased flexibility during installation
Ease of installation with less components
Pre-assembled for rapid installation.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Design | Surface Finish | RFQ |
|---|---|---|---|---|
| FX-2310 | FXR Variable Saddle Flange (2+2) – 41|21 – 41|62 | (2+2) | Galvanized | |
| FX-2311 | FXR Variable Saddle Flange (1+1) – 41|21 – 41|62 | (1+1) | HDG | |
| FX-2839 | FXR Variable Saddle Flange (1+1) – 41|21 – 41|62 | (1+1) | Galvanized | |
| FX-2840 | FXR Variable Saddle Flange (2+2) – 41|21 – 41|62 | (2+2) | HDG |
