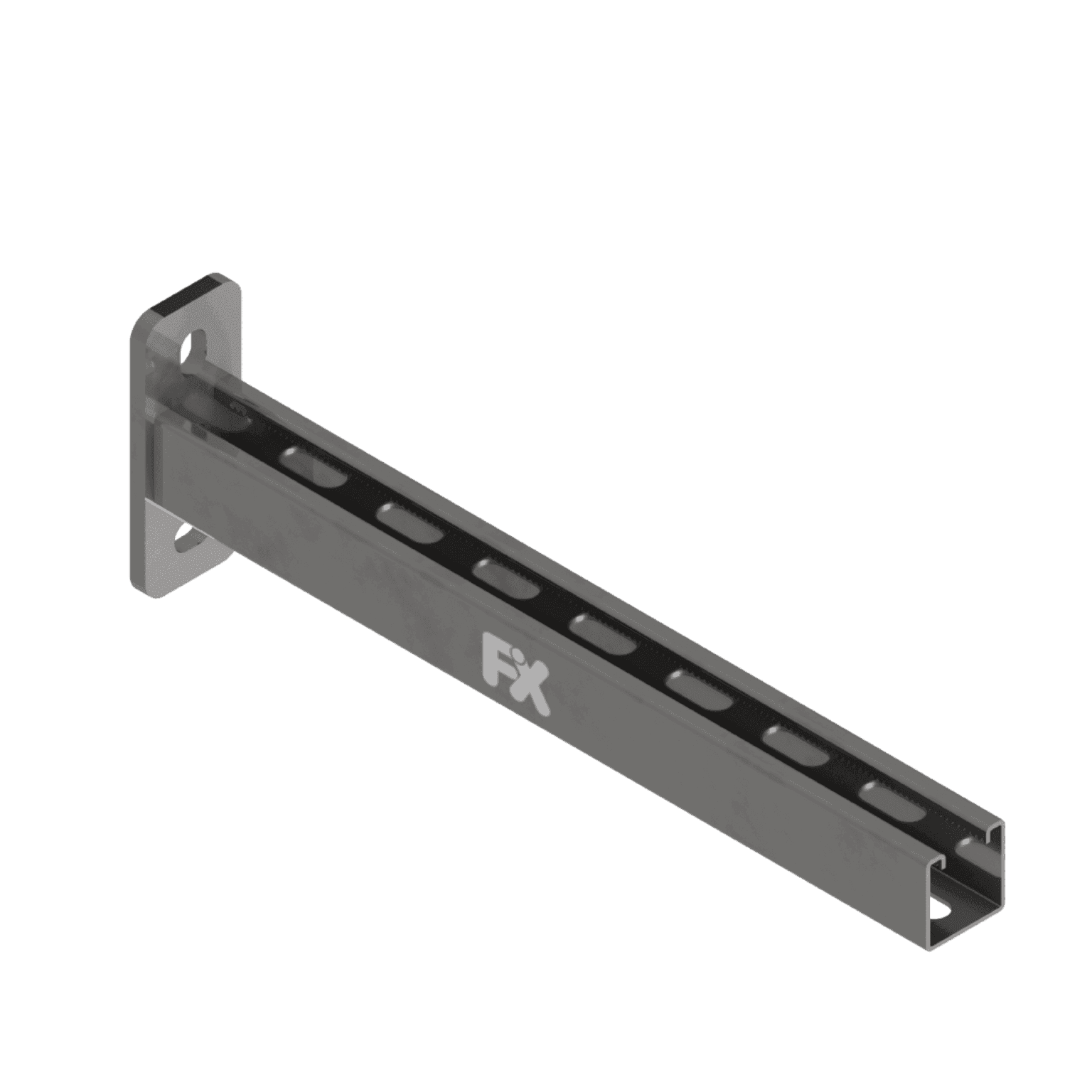

FXR Cantilever Bracket

Pre Fabricated Cantilever Bracket

Finish: Galvanized, HDG
Length: 150 – 1000
Variants: 28

Add variants to RFQ Datasheet Talk to engineering

Application

Fastening light to medium-duty ventilation ducts, plumbing & firefighting pipes and cable trays as a cantilever support structure
Supporting structures for suspended services
Suitable for Trench and Tunnel application.

Features & benefits

Easy to install with less components

Available in variable lengths (Upto 1.040 m) for supporting different services installations

Serrated profiles ensures secured connections with the FXR Rail nut

Article list

Variants & article numbers

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchProfileLength (mm)Surface Finish

28 of 28

Article no.	Description	Profile	Length (mm)	Surface Finish
FX-2230	FXR Cantilever Bracket 41\|21\|2, 150 mm	41\|21\|2.0	150	Galvanized
FX-2231	FXR Cantilever Bracket 41\|21\|2, 150 mm	41\|21\|2.0	150	HDG
FX-2232	FXR Cantilever Bracket 41\|21\|2, 250 mm	41\|21\|2.0	250	Galvanized
FX-2233	FXR Cantilever Bracket 41\|21\|2, 250 mm	41\|21\|2.0	250	HDG
FX-2234	FXR Cantilever Bracket 41\|21\|2, 350 mm	41\|21\|2.0	350	Galvanized
FX-2235	FXR Cantilever Bracket 41\|21\|2, 350 mm	41\|21\|2.0	350	HDG
FX-2242	FXR Cantilever Bracket 41\|21\|2, 400 mm	41\|21\|2.0	400	Galvanized
FX-2243	FXR Cantilever Bracket 41\|21\|2, 400 mm	41\|21\|2.0	400	HDG
FX-2250	FXR Cantilever Bracket 41\|41\|2, 150 mm	41\|41\|2.0	150	Galvanized
FX-2251	FXR Cantilever Bracket 41\|41\|2, 150 mm	41\|41\|2.0	150	HDG
FX-2252	FXR Cantilever Bracket 41\|41\|2, 250 mm	41\|41\|2.0	250	Galvanized
FX-2253	FXR Cantilever Bracket 41\|41\|2, 250 mm	41\|41\|2.0	250	HDG
FX-2254	FXR Cantilever Bracket 41\|41\|2, 350 mm	41\|41\|2.0	350	Galvanized
FX-2255	FXR Cantilever Bracket 41\|41\|2, 350 mm	41\|41\|2.0	350	HDG
FX-2256	FXR Cantilever Bracket 41\|41\|2, 550 mm	41\|41\|2.0	550	Galvanized
FX-2257	FXR Cantilever Bracket 41\|41\|2, 550 mm	41\|41\|2.0	550	HDG
FX-2258	FXR Cantilever Bracket 41\|41\|2, 650 mm	41\|41\|2.0	650	Galvanized
FX-2259	FXR Cantilever Bracket 41\|41\|2, 650 mm	41\|41\|2.0	650	HDG
FX-2260	FXR Cantilever Bracket 41\|41\|2, 750 mm	41\|41\|2.0	750	Galvanized
FX-2261	FXR Cantilever Bracket 41\|41\|2, 750 mm	41\|41\|2.0	750	HDG
FX-2262	FXR Cantilever Bracket 41\|41\|2, 400 mm	41\|41\|2.0	400	Galvanized
FX-2263	FXR Cantilever Bracket 41\|41\|2, 400 mm	41\|41\|2.0	400	HDG
FX-2264	FXR Cantilever Bracket 41\|41\|2, 500 mm	41\|41\|2.0	500	Galvanized
FX-2265	FXR Cantilever Bracket 41\|41\|2, 500 mm	41\|41\|2.0	500	HDG
FX-2266	FXR Cantilever Bracket 41\|41\|2, 800 mm	41\|41\|2.0	800	Galvanized
FX-2267	FXR Cantilever Bracket 41\|41\|2, 800 mm	41\|41\|2.0	800	HDG
FX-2268	FXR Cantilever Bracket 41\|41\|2, 1000 mm	41\|41\|2.0	1000	Galvanized
FX-2269	FXR Cantilever Bracket 41\|41\|2, 1000 mm	41\|41\|2.0	1000	HDG
