Brackets

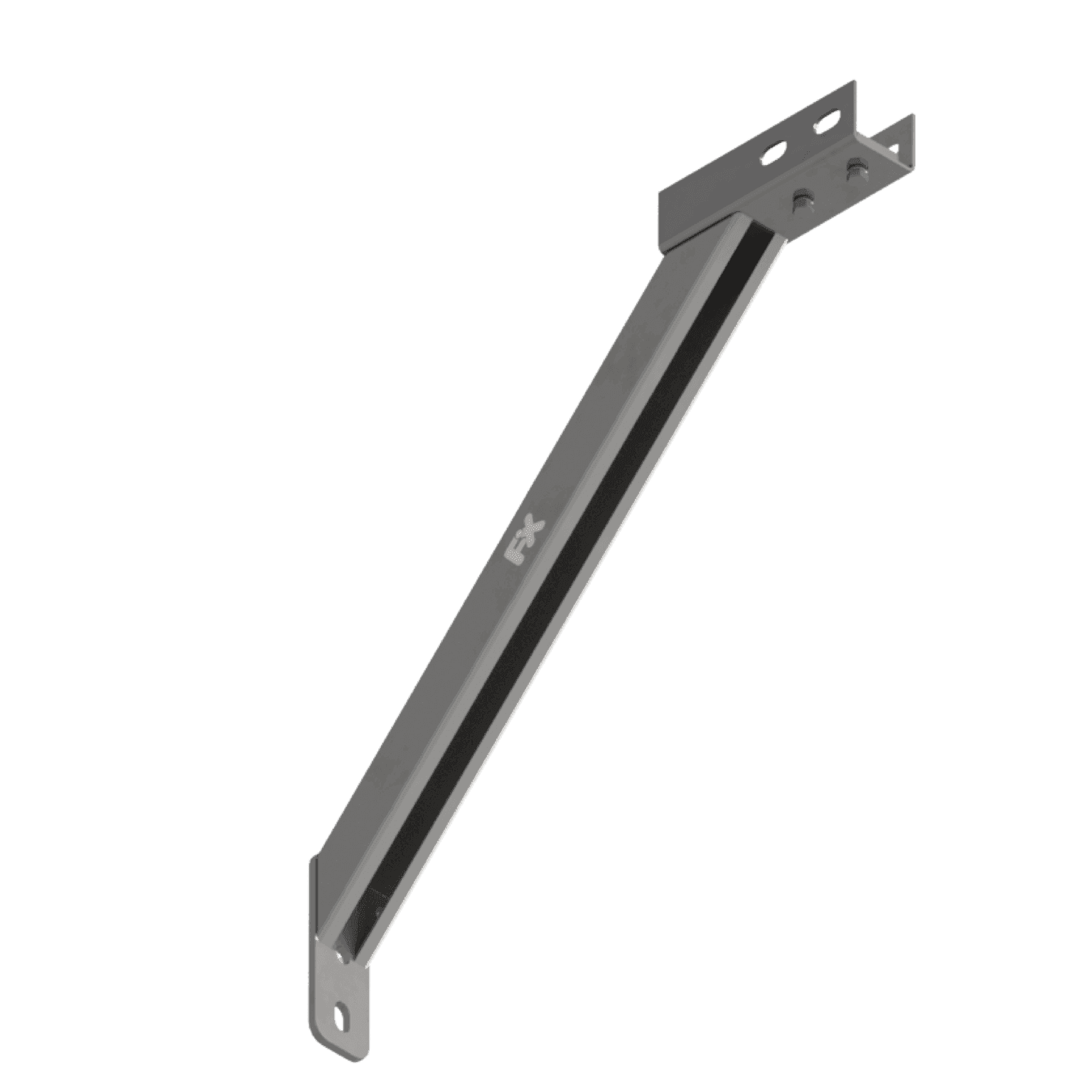

FXR Bracket Support
Pre Fabricated Bracket to support cantilever Loads
- Finish
- Galvanized, HDG
- Length
- 440 – 900
- Variants
- 4
Application
- Bracing for FXR Mounting Rails structures for carrying higher loads
- Supporting installation of medium to heavy-duty ventilation ducts, plumbing & firefighting pipes and cable trays
Features & benefits
Easy to install with less components
Prefabricated for rapid installation
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Length (mm) | Surface Finish | RFQ |
|---|---|---|---|---|
| FX-2270 | FXR Bracket support, 440 mm | 440 | Galvanized | |
| FX-2271 | FXR Bracket support, 440 mm | 440 | HDG | |
| FX-2272 | FXR Bracket support, 900 mm | 900 | Galvanized | |
| FX-2273 | FXR Bracket support, 900 mm | 900 | HDG |
