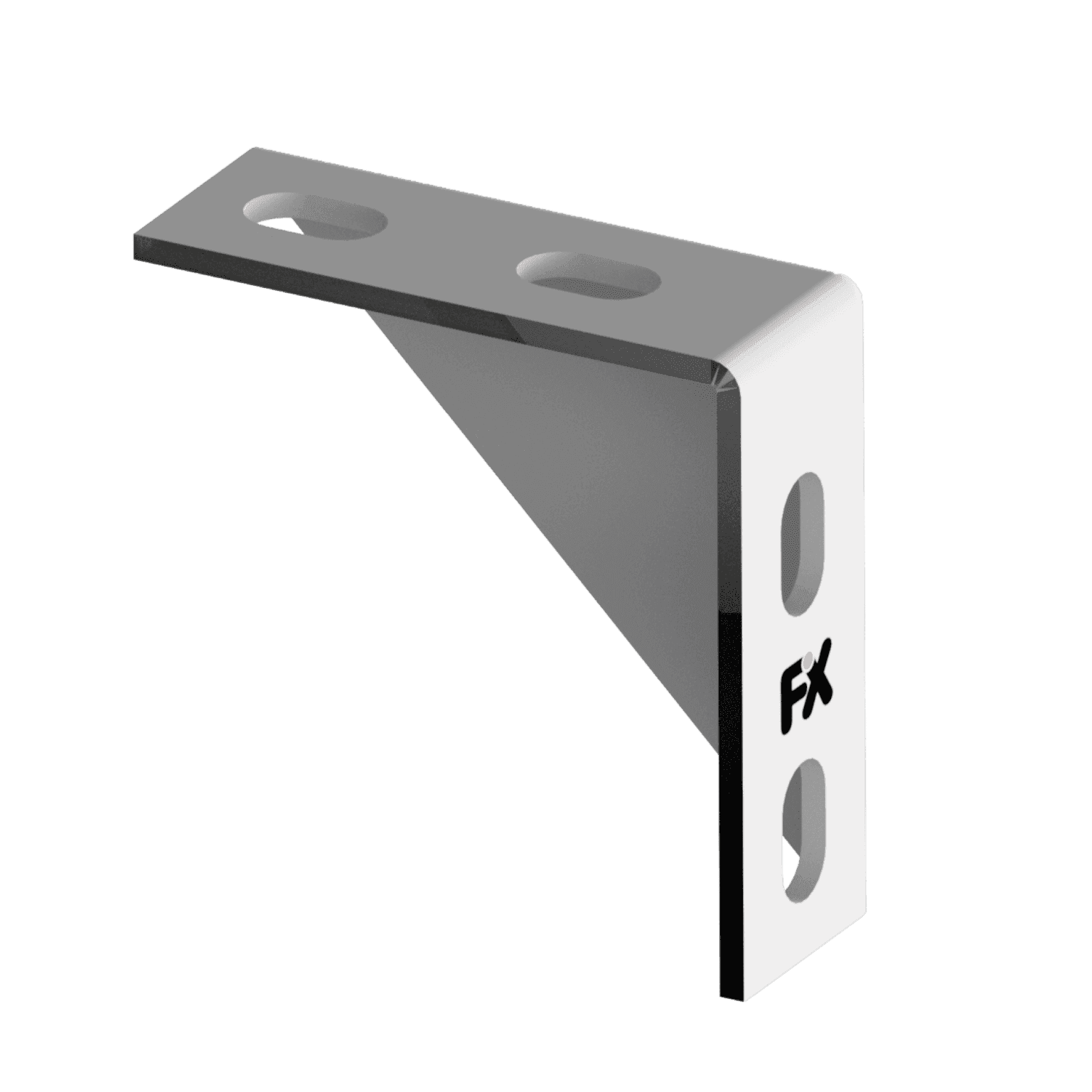

FXR Angle Bracket
Supporting bracket for FXR mounting Rails
- Finish
- Galvanized, HDG
- Variants
- 8
Application
- Building frame structures using FXR Mounting Rails
- Structural connection of FXR mounting rails with any supporting material
Features & benefits
Easy to install with less components
Strengthening of FXR Mounting Rail connections
For increased strength requirements, it is possible to bolt angle brackets together.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
8 of 8
| Article no. | Description | Design | Surface Finish | RFQ |
|---|---|---|---|---|
| FX-2220 | FXR Angle Bracket 100 x 100 x 4 | 100 x 100 x 4 | Galvanized | |
| FX-2221 | FXR Angle Bracket 100 x 100 x 4 | 100 x 100 x 4 | HDG | |
| FX-2222 | FXR Angle Bracket 207 x 165 x 4 | 207 x 165 x 4 | Galvanized | |
| FX-2223 | FXR Angle Bracket 207 x 165 x 4 | 207 x 165 x 4 | HDG | |
| FX-2224 | FXR Angle Bracket 200 x 200 x 4 | 200 x 200 x 4 | Galvanized | |
| FX-2225 | FXR Angle Bracket 200 x 200 x 4 | 200 x 200 x 4 | HDG | |
| FX-2226 | FXR Angle Bracket 200 x 200 x 6 | 200 x 200 x 6 | Galvanized | |
| FX-2227 | FXR Angle Bracket 200 x 200 x 6 | 200 x 200 x 6 | HDG |
