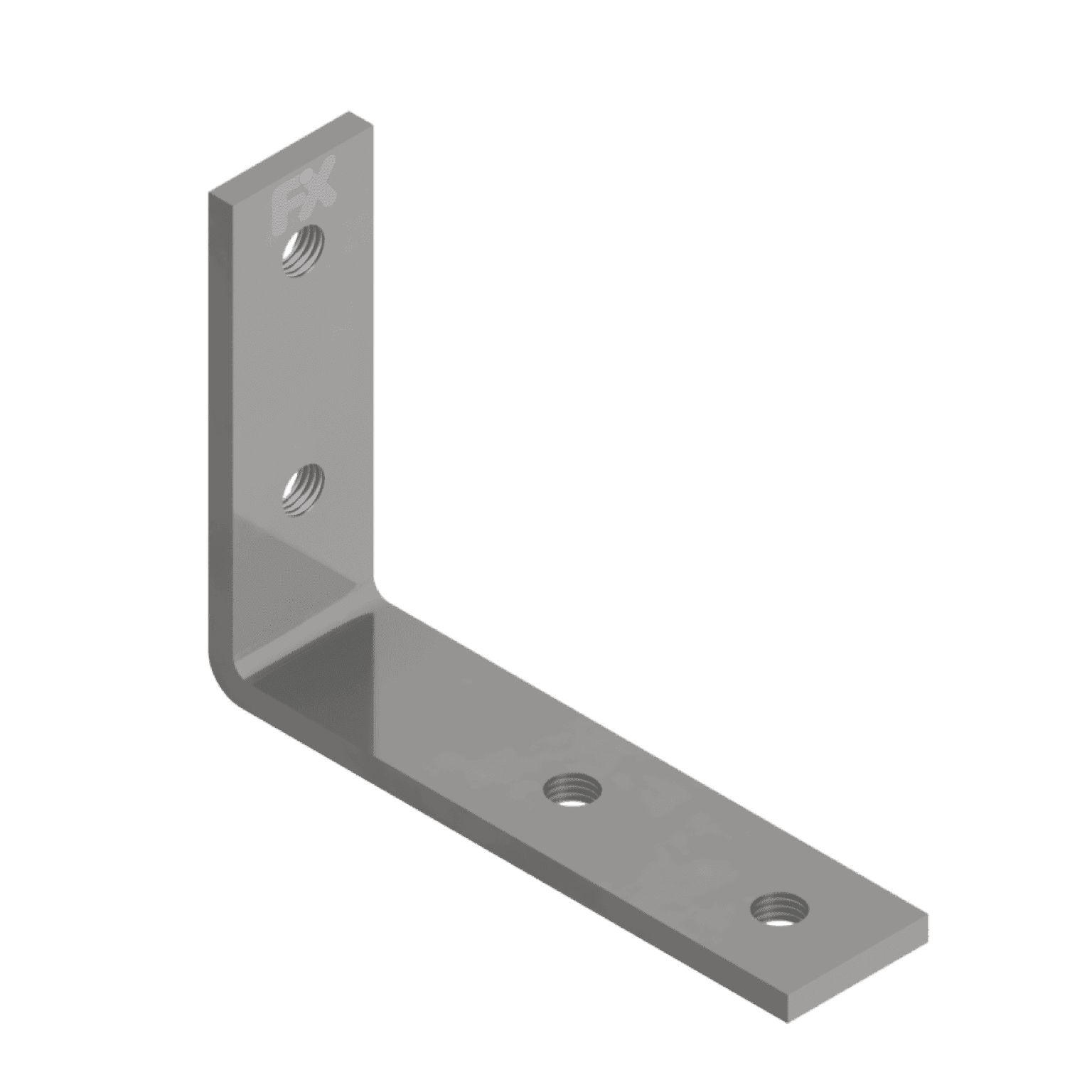

FXR Mounting Angle 90 (Internal)
Connection element for 90° internal connections of FXR Mounting Rails
- Finish
- Galvanized, HDG
- Variants
- 4
Application
- Building frame structures using FXR Mounting Rails
- Structural connection of FXR Mounting Rails
- Suitable for cable tray and ducting
- Connecting FXR Mounting Rails internally at right angles
Features & benefits
Cost saving due to lower usage of FXR Mounting Rails
Quick and efficient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Angle | Design | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|---|
| FX-2831 | FXR Mounting Angle 90° (2+1) Internal | 90° | (2+1) | (2+1) Internal | Galvanized | |
| FX-2832 | FXR Mounting Angle 90° (2+1) Internal | 90° | (2+1) | (2+1) Internal | HDG | |
| FX-2837 | FXR Mounting Angle 90° (2+2) Internal | 90° | (2+2) | (2+2) Internal | Galvanized | |
| FX-2838 | FXR Mounting Angle 90° (2+2) Internal | 90° | (2+2) | (2+2) Internal | HDG |
Downloads
Datasheets
