Connectors

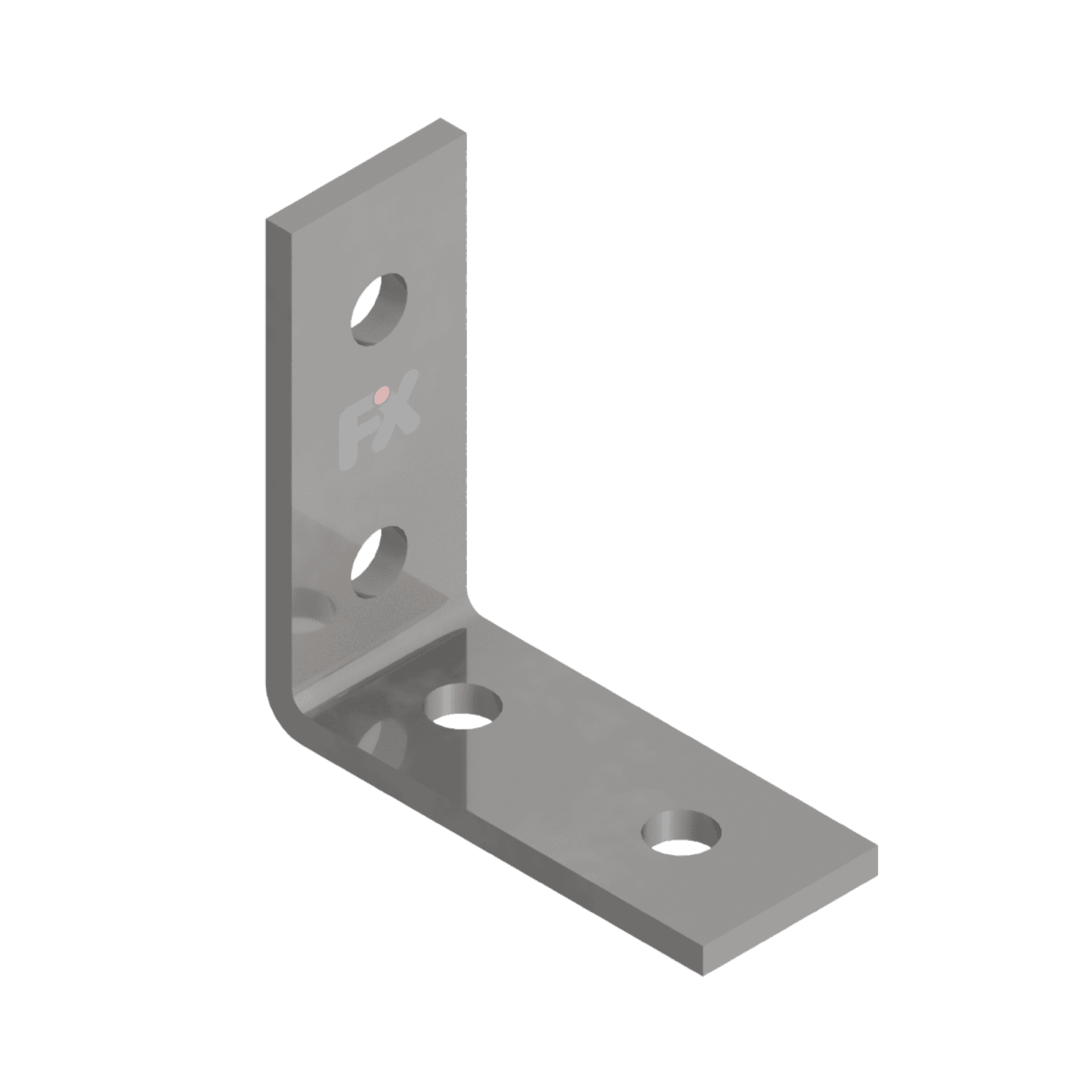

FXR Mounting Angle 90
Connection element for 90° connections of FXR Mounting Rails
- Finish
- Galvanized, HDG
- Variants
- 6
Application
- Building frame structures using FXR Mounting Rails
- Structural connection of FXR Mounting Rails
- Connecting FXR Mounting Rails at right angles
Features & benefits
Quick and efficient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
6 of 6
| Article no. | Description | Angle | Design | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|---|
| FX-2279 | FXR Mounting Angle 90° (1+1) | 90° | (1+1) | (1+1) | Galvanized | |
| FX-2280 | FXR Mounting Angle 90° (1+1) | 90° | (1+1) | (1+1) | HDG | |
| FX-2281 | FXR Mounting Angle 90° (2+1) | 90° | (2+1) | (2+1) | Galvanized | |
| FX-2282 | FXR Mounting Angle 90° (2+1) | 90° | (2+1) | (2+1) | HDG | |
| FX-2283 | FXR Mounting Angle 90° (2+2) | 90° | (2+2) | (2+2) | Galvanized | |
| FX-2284 | FXR Mounting Angle 90° (2+2) | 90° | (2+2) | (2+2) | HDG |
Downloads
Datasheets
