Connectors

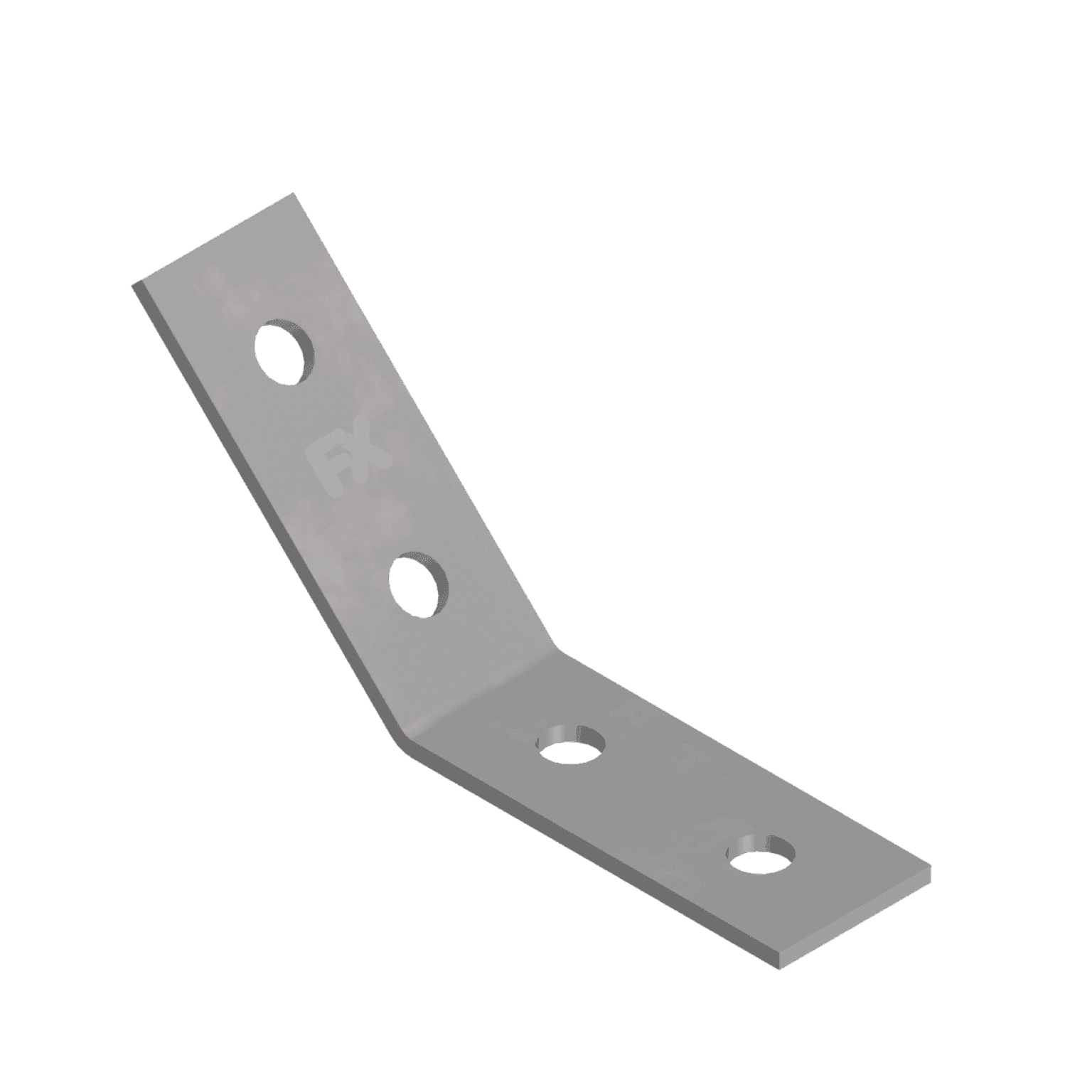

FXR Mounting Angle 135
Connection element for 135° connections of FXR Mounting Rails
- Finish
- Galvanized, HDG
- Variants
- 4
Application
- Building frame structures using FXR Mounting Rails
- Structural connection of FXR Mounting Rails
- Suitable for Seismic bracing installation
- Connecting FXR Mounting Rails at 45°/135° angles
Features & benefits
Quick and efficient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Angle | Design | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|---|
| FX-2286 | FXR Mounting Angle 135° (2+1) | 135° | (2+1) | (2+1) 41|21 - 41|124 | Galvanized | |
| FX-2287 | FXR Mounting Angle 135° (2+2) | 135° | (2+2) | (2+2) 41|21 - 41|124 | Galvanized | |
| FX-2288 | FXR Mounting Angle 135° (2+1) | 135° | (2+1) | (2+1) 41|21 - 41|124 | HDG | |
| FX-2289 | FXR Mounting Angle 135° (2+2) | 135° | (2+2) | (2+2) 41|21 - 41|124 | HDG |
