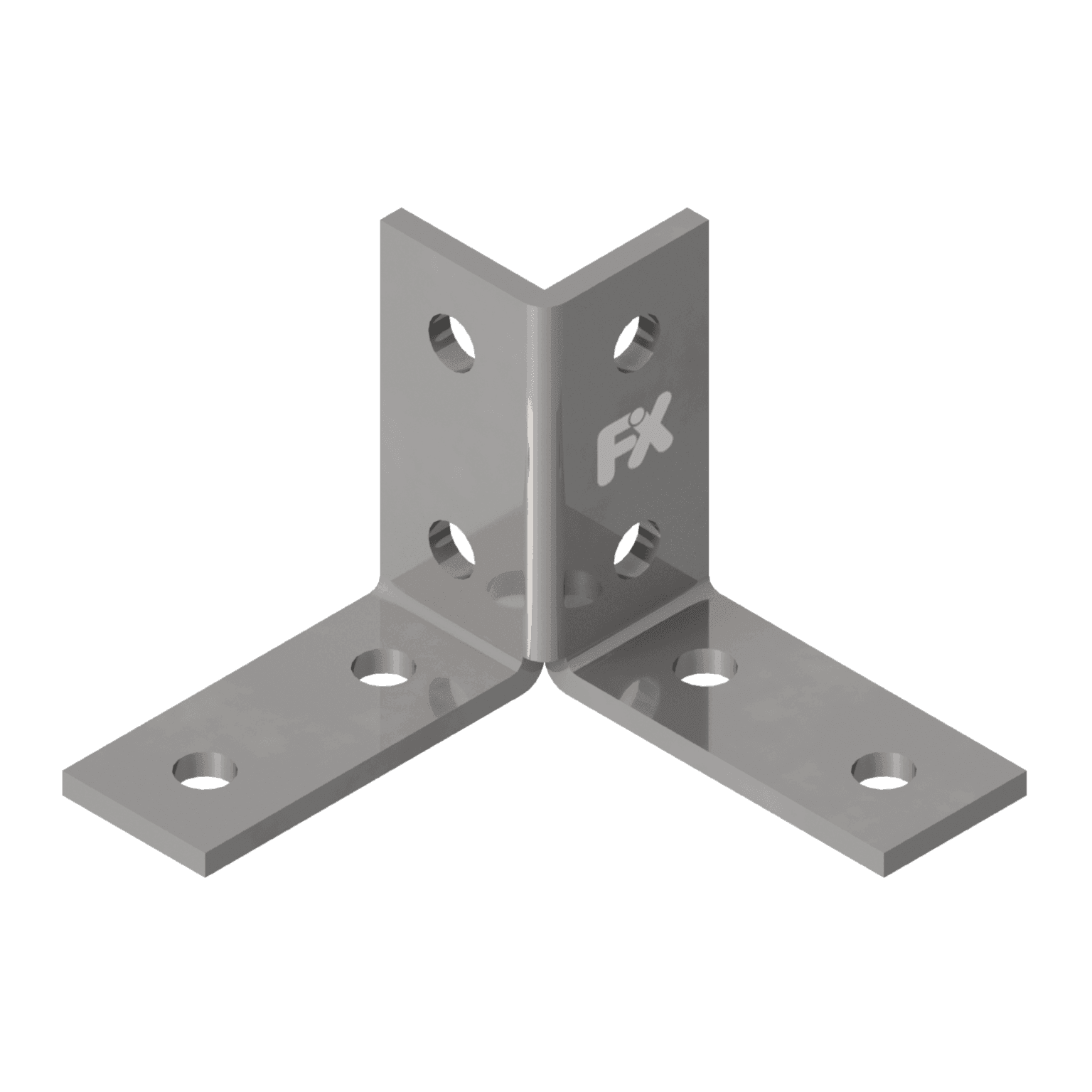

FXR Lateral Angle Connector (2+2)
Fixing element for lateral connection of FXR mounting Rails
- Finish
- Galvanized, HDG
- Variants
- 4
Application
- Building 2-Dimensional and 3-Dimensional frame structures using FXR Mounting Rails
- Structural connection of FXR Mounting Rails
Features & benefits
Easy to install with less components
Quick and efficient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Design | Orientation | Surface Finish | RFQ |
|---|---|---|---|---|---|
| FX-2326 | FX Lateral Angle Connector (2+2) – Double sided | (2+2) | Double sided | Galvanized | |
| FX-2327 | FX Lateral Angle Connector (2+2) – Double sided | (2+2) | Double sided | HDG | |
| FX-2328 | FX Lateral Angle Connector (2+2) – Three sided | (2+2) | Three sided | Galvanized | |
| FX-2329 | FX Lateral Angle Connector (2+2) – Three sided | (2+2) | Three sided | HDG |
