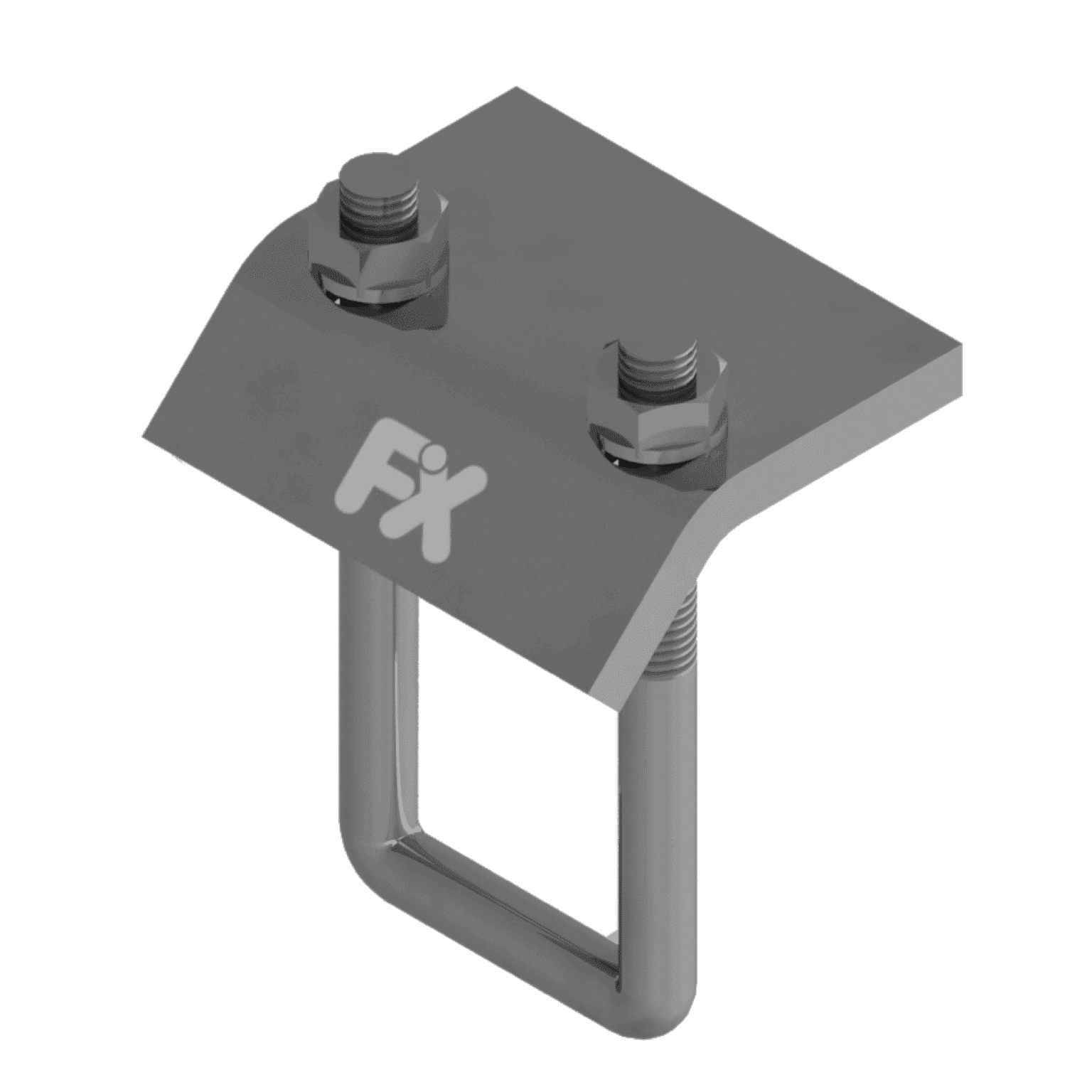

FXR Girder Cleat

Name: FXR Girder Cleat
Brand: Fixotec
SKU: FX-FXR-GIRDER-CLEAT

Connection element for attachment of FXR Mounting Rails to steel girders

Application

Features & benefits

Easy to install, Pre-assembled Kit

Enables secured transfer of loads from FXR Mounting Rail to steel girders

Allows adjustment of FXR Mounting Rail along and across the supporting beam

Suitable for Flange thicknesses of common steel girder profiles

Article list

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchThreadProfileSurface Finish

14 of 14

Article no.	Description	Thread	Profile	Surface Finish
FX-2344	FXR Girder Cleat M8 – 41\|21	M8	41\|21	Galvanized
FX-2345	FXR Girder Cleat M8 – 41\|21	M8	41\|21	HDG
FX-2346	FXR Girder Cleat M8 – 41\|41, 41\|62	M8	41\|41, 41\|62	Galvanized
FX-2347	FXR Girder Cleat M8 – 41\|41, 41\|62	M8	41\|41, 41\|62	HDG
FX-2348	FXR Girder Cleat M8 – 41\|82	M8	41\|82	Galvanized
FX-2349	FXR Girder Cleat M8 – 41\|82	M8	41\|82	HDG
FX-2350	FXR Girder Cleat M10 – 41\|41, 41\|62	M10	41\|41, 41\|62	Galvanized
FX-2351	FXR Girder Cleat M10 – 41\|41, 41\|62	M10	41\|41, 41\|62	HDG
FX-2352	FXR Girder Cleat M10 – 41\|82, 41\|124	M10	41\|82, 41\|124	Galvanized
FX-2353	FXR Girder Cleat M10 – 41\|82, 41\|124	M10	41\|82, 41\|124	HDG
FX-2354	FXR Girder Cleat M12 – 60\|70	M12	60\|70	Galvanized
FX-2355	FXR Girder Cleat M12 – 60\|70	M12	60\|70	HDG
FX-2356	FXR Girder Cleat M12 – 41\|82, 41\|124	M12	41\|82, 41\|124	Galvanized
FX-2357	FXR Girder Cleat M12 – 41\|82, 41\|124	M12	41\|82, 41\|124	HDG
