U Bolt

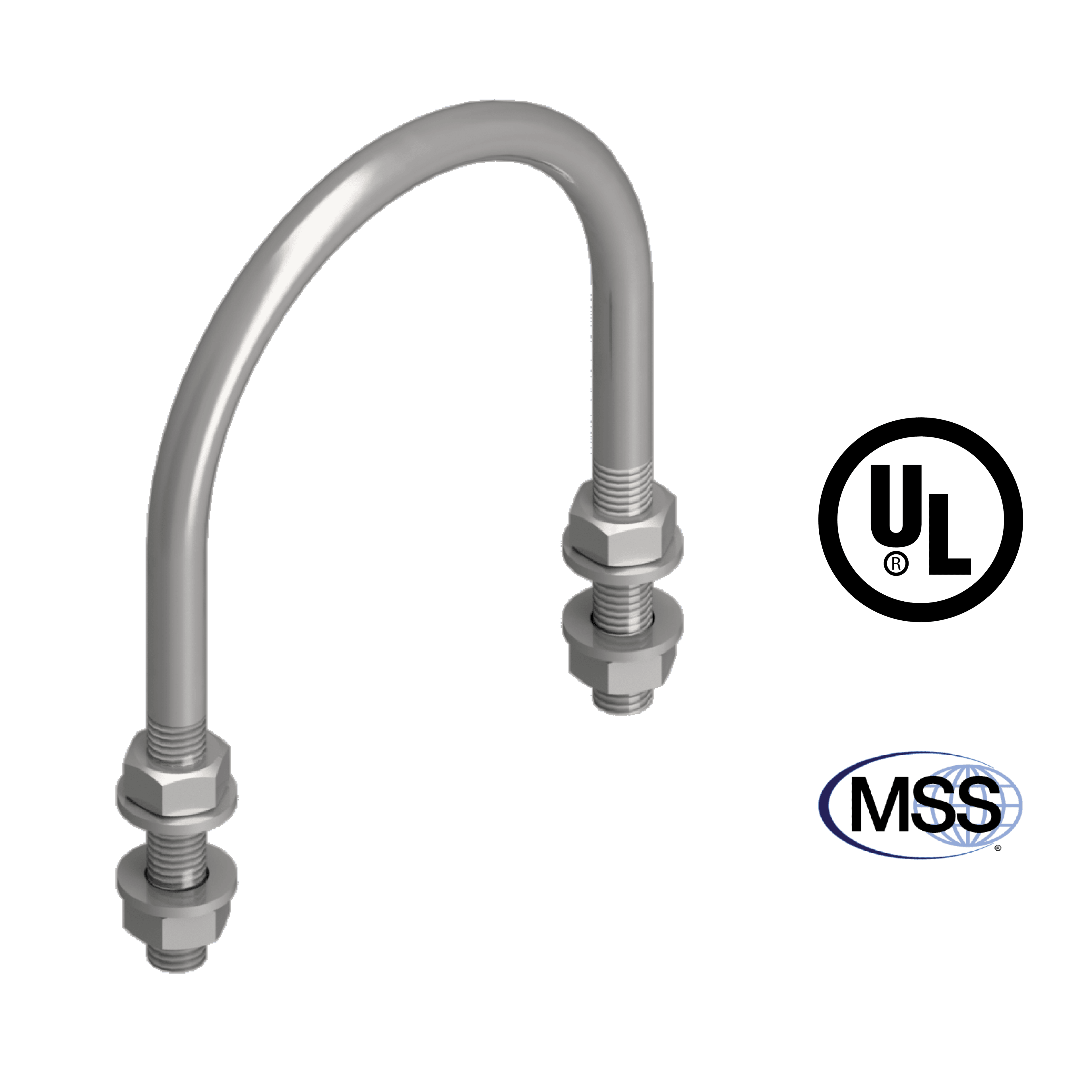

U-shaped bolt with threaded ends

Thread: M10, M12, M16, M20, M22
Pipe size: 1 1/2" – 8"
Variants: 22

Add variants to RFQ Datasheet Talk to engineering

Application

Flexible and adjustable installation of heavy duty industrial and commercial pipes

Features & benefits

Complies with Manufacturer’s Standardization Society – MSS-SP-58 and MSS-SP-69 (Type 24)

Approved by Underwriters Laboratories (UL)

One piece design enable high load carrying capacity

Supplied together with two/four nuts and two washers

Minimal contact surface between U-bolt and pipe

Article list

Variants & article numbers

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchThreadPipe size (inch)

22 of 22

Article no.	Description	Thread	Pipe size (inch)
FX-2060	FX U-Bolt, M10, 1/2′′, MSS SP-58 & SP-69 (Type 24), UL	M10	1/2"
FX-2063	FX U-Bolt, M10, 3/4′′, MSS SP-58 & SP-69 (Type 24), UL	M10	3/4"
FX-2064	FX U-Bolt, M10, 1′′, MSS SP-58 & SP-69 (Type 24), UL	M10	1"
FX-2065	FX U-Bolt, M10, 1 1/4′′, MSS SP-58 & SP-69 (Type 24), UL	M10	1 1/4"
FX-2066	FX U-Bolt, M10, 1 1/2′′, MSS SP-58 & SP-69 (Type 24), UL	M10	1 1/2"
FX-2067	FX U-Bolt, M10, 2′′, MSS SP-58 & SP-69 (Type 24), UL	M10	2"
FX-2068	FX U-Bolt, M10, 2 1/2′′, MSS SP-58 & SP-69 (Type 24), UL	M10	2 1/2"
FX-2069	FX U-Bolt, M10, 3′′, MSS SP-58 & SP-69 (Type 24), UL	M10	3"
FX-2070	FX U-Bolt, M12, 3′′, MSS SP-58 & SP-69 (Type 24), UL	M12	3"
FX-2071	FX U-Bolt, M10, 4′′, MSS SP-58 & SP-69 (Type 24), UL	M10	4"
FX-2072	FX U-Bolt, M12, 4′′, MSS SP-58 & SP-69 (Type 24), UL	M12	4"
FX-2073	FX U-Bolt, M10, 5′′, MSS SP-58 & SP-69 (Type 24), UL	M10	5"
FX-2074	FX U-Bolt, M12, 5′′, MSS SP-58 & SP-69 (Type 24), UL	M12	5"
FX-2075	FX U-Bolt, M12, 6′′, MSS SP-58 & SP-69 (Type 24), UL	M12	6"
FX-2076	FX U-Bolt, M16, 6′′, MSS SP-58 & SP-69 (Type 24), UL	M16	6"
FX-2077	FX U-Bolt, M12, 8′′, MSS SP-58 & SP-69 (Type 24), UL	M12	8"
FX-2078	FX U-Bolt, M16, 8′′, MSS SP-58 & SP-69 (Type 24), UL	M16	8"
FX-2079	FX U-Bolt, M12, 10′′, MSS SP-58 & SP-69 (Type 24), UL	M12	10"
FX-2080	FX U-Bolt, M16, 10′′, MSS SP-58 & SP-69 (Type 24), UL	M16	10"
FX-2081	FX U-Bolt, M20, 10′′, MSS SP-58 & SP-69 (Type 24), UL	M20	10"
FX-2082	FX U-Bolt, M20, 12′′, MSS SP-58 & SP-69 (Type 24), UL	M20	12"
FX-2083	FX U-Bolt, M22, 12′′, MSS SP-58 & SP-69 (Type 24), UL	M22	12"
