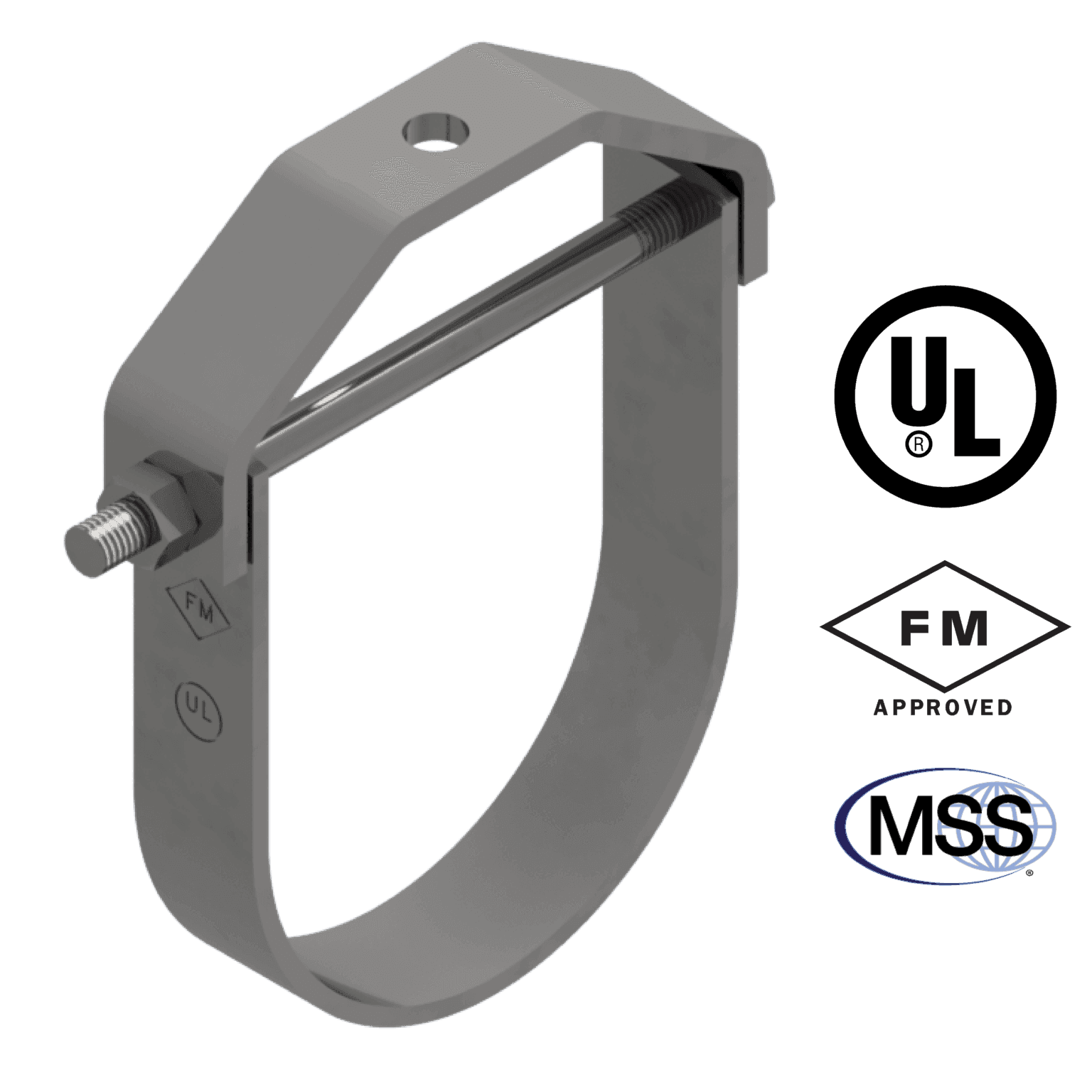

Clevis Hanger

Pipe Attachment consisting of a clevis type top bolted to a formed steel bottom strap

Application

Installation of suspended heavy duty firefighting sprinkler and chilled water pipes

Features & benefits

Approved by Factory Mutual (FM) and Underwriters Laboratories (UL)

Complies with Manufacturer’s Standardization Society – MSS-SP-58 and MSS-SP-69 (Type 1)

Allows vertical pipe alignment after installation

Can be provided with noise insulating high quality EPDM lining

Can be provided with load distributing metal sleeve

Article list

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchPipe size (inch)

20 of 20

Article no.	Description	Pipe size (inch)
FX-2023	FX Clevis Hanger M10, 1-1/2′′, MSS SP-58 & SP-69(Type 1), FM, UL	1 1/2"
FX-2024	FX Clevis Hanger M10, 1-1/4′′, MSS SP-58 & SP-69(Type 1), FM, UL	1 1/4"
FX-2025	FX Clevis Hanger M10, 1′′, MSS SP-58 & SP-69(Type 1), FM, UL	1"
FX-2026	FX Clevis Hanger M10, 1/2′′, MSS SP-58 & SP-69(Type 1), UL	1/2"
FX-2027	FX Clevis Hanger M24, 10′′, MSS SP-58 & SP-69(Type 1)	10"
FX-2028	FX Clevis Hanger M24, 12′′, MSS SP-58 & SP-69(Type 1)	12"
FX-2029	FX Clevis Hanger M24, 14′′, MSS SP-58 & SP-69(Type 1)	14"
FX-2030	FX Clevis Hanger M30, 16′′, MSS SP-58 & SP-69(Type 1)	16"
FX-2031	FX Clevis Hanger M30, 18′′, MSS SP-58 & SP-69(Type 1)	18"
FX-2032	FX Clevis Hanger M12, 2-1/2′′, MSS SP-58 & SP-69(Type 1), FM, UL	2 1/2"
FX-2033	FX Clevis Hanger M10, 2′′, MSS SP-58 & SP-69(Type 1), FM, UL	2"
FX-2034	FX Clevis Hanger M30, 20′′, MSS SP-58 & SP-69(Type 1)	20"
FX-2035	FX Clevis Hanger M30, 22′′, MSS SP-58 & SP-69(Type 1)	22"
FX-2036	FX Clevis Hanger M30, 24′′, MSS SP-58 & SP-69(Type 1)	24"
FX-2037	FX Clevis Hanger M12, 3′′, MSS SP-58 & SP-69(Type 1), FM, UL	3"
FX-2038	FX Clevis Hanger M10, 3/4′′, MSS SP-58 & SP-69(Type 1), FM, UL	3/4"
FX-2039	FX Clevis Hanger M16, 4′′, MSS SP-58 & SP-69(Type 1), FM, UL	4"
FX-2040	FX Clevis Hanger M16, 5′′, MSS SP-58 & SP-69(Type 1), FM, UL	5"
FX-2041	FX Clevis Hanger M20, 6′′, MSS SP-58 & SP-69(Type 1), FM, UL	6"
FX-2042	FX Clevis Hanger M20, 8′′, MSS SP-58 & SP-69(Type 1), FM, UL	8"
