SRS Heavy (with and without lining)
Single Bossed

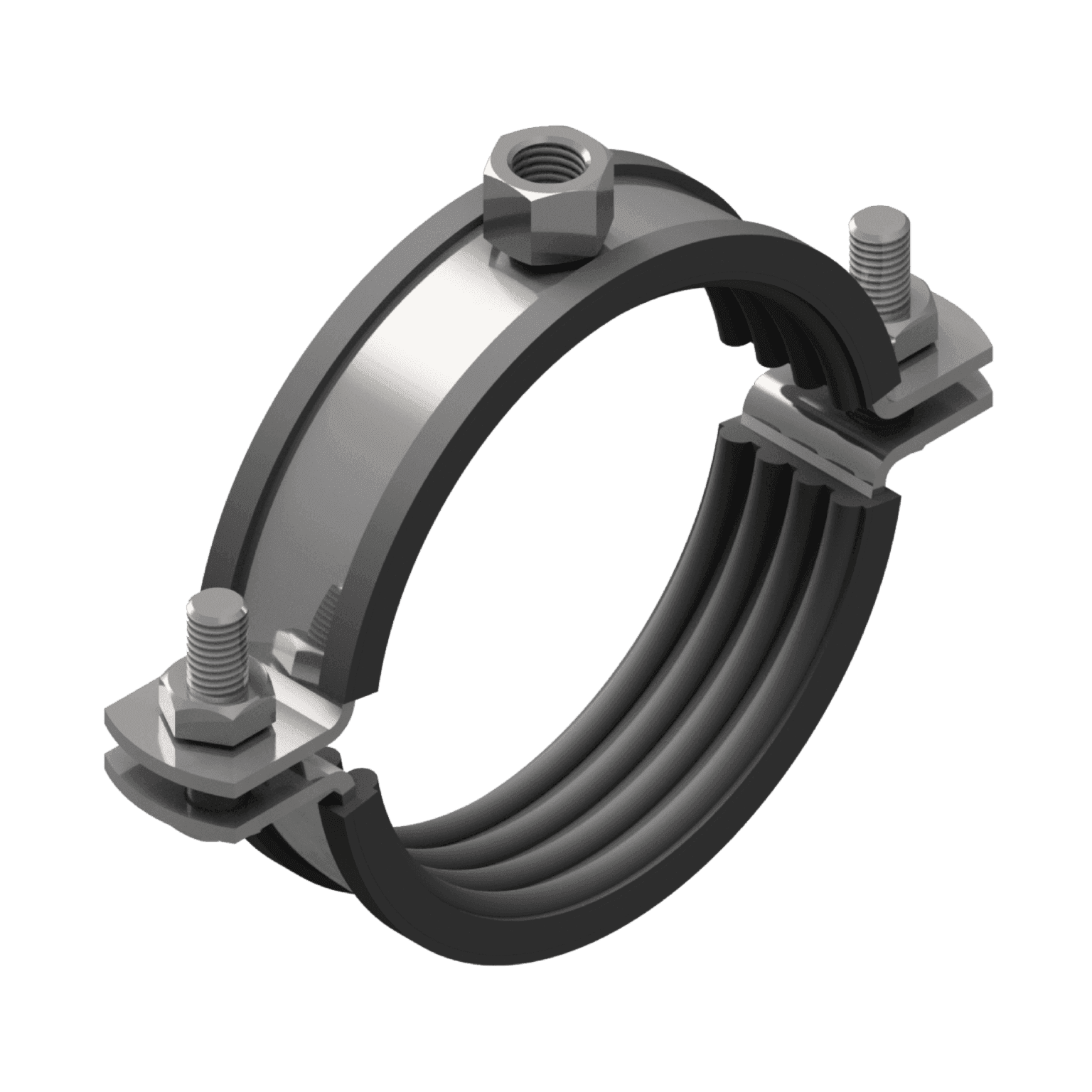

SRS Heavy (with and without lining)

Two piece single bossed clamp with strong clamping bolts and noise insulating rubber lining

Finish
Galvanized
Thread
M12, M16
Variants
60
Add variants to RFQDatasheetTalk to engineering

Application

  • Installation of heavy duty industrial pipes
  • Suitable for installation of cast iron and ductile iron pipes
  • Suitable for stand-off Installations of pipes

Features & benefits

Connection socket provides higher bending resistance or stand off pipe installations

Ideally to be used with threaded pipe and base plate for stand off pipe installations

Strong clamping bolts offers enhanced flexibility in accomdating higher variation of pipe diameters and higher loads

Dual nut allows multiple threaded attachments

Reinforced rib design provides enhanced strength

Noise insulating and temperature resistant EPDM lining

Article list

Variants & article numbers

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

60 of 60

Article no.DescriptionLiningThreadClamping RangeSurface FinishRFQ
FX-4173FX SRS Heavy, M12, 1/4′′, (12-17)With LiningM1212 - 17Galvanized
FX-4174FX SRS Heavy, M12, 1/2′′, (21-28)With LiningM1221 - 28Galvanized
FX-4175FX SRS Heavy, M12, 3/4′′, (25-32)With LiningM1225 - 32Galvanized
FX-4176FX SRS Heavy, M12, 1′′, (33-40)With LiningM1233 - 40Galvanized
FX-4177FX SRS Heavy, M12, 1 1/4′′, (41-48)With LiningM1241 - 48Galvanized
FX-4178FX SRS Heavy, M12, 1 1/2′′, (48-56)With LiningM1248 - 56Galvanized
FX-4179FX SRS Heavy, M12, 57 mm, (53-59)With LiningM1253 - 59Galvanized
FX-4180FX SRS Heavy, M12, 2′′, (60-69)With LiningM1260 - 69Galvanized
FX-4181FX SRS Heavy, M12, 70 mm, (67-75)With LiningM1267 - 75Galvanized
FX-4182FX SRS Heavy, M12, 2 1/2′′, (75-81)With LiningM1275 - 81Galvanized
FX-4183FX SRS Heavy, M12, 83 mm, (83-91)With LiningM1283 - 91Galvanized
FX-4184FX SRS Heavy, M12, 3′′, (87-95)With LiningM1287 - 95Galvanized
FX-4185FX SRS Heavy, M12, 102 mm, (95-104)With LiningM1295 - 104Galvanized
FX-4186FX SRS Heavy, M12, 110 mm, (102-112)With LiningM12102 - 112Galvanized
FX-4187FX SRS Heavy, M12, 4′′, (109-119)With LiningM12109 - 119Galvanized
FX-4188FX SRS Heavy, M16, 125 mm, (122-138)With LiningM16122 - 138Galvanized
FX-4189FX SRS Heavy, M16, 133 mm, (128-141)With LiningM16128 - 141Galvanized
FX-4190FX SRS Heavy, M16, 5′′, (136-147)With LiningM16136 - 147Galvanized
FX-4191FX SRS Heavy, M16, 160 mm, (153-164)With LiningM16153 - 164Galvanized
FX-4192FX SRS Heavy, M16, 6′′, (164-174)With LiningM16164 - 174Galvanized
FX-4193FX SRS Heavy, M16, 200 mm, (196-209)With LiningM16196 - 209Galvanized
FX-4194FX SRS Heavy, M16, 8′′, (214-226)With LiningM16214 - 226Galvanized
FX-4195FX SRS Heavy, M16, 240 mm, (240-250)With LiningM16240 - 250Galvanized
FX-4196FX SRS Heavy, M16, 10′′, (266-274)With LiningM16266 - 274Galvanized
FX-4197FX SRS Heavy, M16, 12′′, (308-324)With LiningM16308 - 324Galvanized
FX-4198FX SRS Heavy, M16, 14′′, (340-356)With LiningM16340 - 356Galvanized
FX-4199FX SRS Heavy, M16, 380 mm, (374-390)With LiningM16374 - 390Galvanized
FX-4200FX SRS Heavy, M16, 16′′, (393-409)With LiningM16393 - 409Galvanized
FX-4201FX SRS Heavy, M16, 18′′, (444-460)With LiningM16444 - 460Galvanized
FX-4202FX SRS Heavy, M16, 20′′, (497-512)With LiningM16497 - 512Galvanized
FX-4208FX SRS Heavy w/o Lining, M12, 1/2′′, (18-23)Without LiningM1218 - 23Galvanized
FX-4209FX SRS Heavy w/o lining, M12, 3/4′′, (26-31)Without LiningM1226 - 31Galvanized
FX-4210FX SRS Heavy w/o lining M12, 1′′, (31-37)Without LiningM1231 - 37Galvanized
FX-4211FX SRS Heavy w/o lining M12, 1 1/4′′, (38-44)Without LiningM1238 - 44Galvanized
FX-4212FX SRS Heavy w/o lining M12, 1 1/2′′, (46-53)Without LiningM1246 - 53Galvanized
FX-4213FX SRS Heavy w/o lining M12, 57 mm, (54-60)Without LiningM1254 - 60Galvanized
FX-4214FX SRS Heavy w/o lining M12, 2′′, (60-68)Without LiningM1260 - 68Galvanized
FX-4215FX SRS Heavy w/o lining M12, 70 mm, (66-73)Without LiningM1266 - 73Galvanized
FX-4216FX SRS Heavy w/o lining M12, 2 1/2′′, (74-81)Without LiningM1274 - 81Galvanized
FX-4217FX SRS Heavy w/o lining M12, 83 mm, (82-88)Without LiningM1282 - 88Galvanized
FX-4218FX SRS Heavy w/o lining M12, 3′′, (88-97)Without LiningM1288 - 97Galvanized
FX-4219FX SRS Heavy w/o lining M12, 93 mm, (93-100)Without LiningM1293 - 100Galvanized
FX-4220FX SRS Heavy w/o lining M12, 102 mm, (101-109)Without LiningM12101 - 109Galvanized
FX-4221FX SRS Heavy w/o lining M12, 4′′, (110-118)Without LiningM12110 - 118Galvanized
FX-4222FX SRS Heavy w/o lining M12, 125 mm, (116-126)Without LiningM12116 - 126Galvanized
FX-4223FX SRS Heavy w/o lining M16, 133 mm, (130- 141)Without LiningM16130- 141Galvanized
FX-4224FX SRS Heavy w/o lining M16, 5′′, (136-145)Without LiningM16136 - 145Galvanized
FX-4225FX SRS Heavy w/o lining M16, 144 mm, (144-154)Without LiningM16144 - 154Galvanized
FX-4226FX SRS Heavy w/o lining M16, 6′′, (160-169)Without LiningM16160 - 169Galvanized
FX-4227FX SRS Heavy w/o lining M16, 170 mm, (170-180)Without LiningM16170 - 180Galvanized
FX-4228FX SRS Heavy w/o lining M16, 212 mm, (202-214)Without LiningM16202 - 214Galvanized
FX-4229FX SRS Heavy w/o lining M16, 8′′, (219-230)Without LiningM16219 - 230Galvanized
FX-4230FX SRS Heavy w/o lining M16, 245 mm, (245-255)Without LiningM16245 - 255Galvanized
FX-4231FX SRS Heavy w/o lining M16, 10′′, (273-283)Without LiningM16273 - 283Galvanized
FX-4232FX SRS Heavy w/o lining M16, 12′′, (317-333)Without LiningM16317 - 333Galvanized
FX-4233FX SRS Heavy w/o lining M16, 14′′, (349-365)Without LiningM16349 - 365Galvanized
FX-4234FX SRS Heavy w/o lining M16, 380 mm, (380-396)Without LiningM16380 - 396Galvanized
FX-4235FX SRS Heavy w/o lining M16, 16′′, (398-414)Without LiningM16398 - 414Galvanized
FX-4236FX SRS Heavy w/o lining M16, 18′′, (450-466)Without LiningM16450 - 466Galvanized
FX-4237FX SRS Heavy w/o lining M16, 20′′, (501-517)Without LiningM16501 - 517Galvanized

Downloads

Datasheets

SRS HeavyDATASHEET · SRS-Heavy.pdf · 297 KBSRS HeavyDATASHEET · SRS-Heavy.pdf · 309 KBSRS Heavy without LiningDATASHEET · SRS-Heavy-without-Lining.pdf · 459 KBSRS Heavy without LiningDATASHEET · SRS-Heavy-without-Lining.pdf · 314 KB
