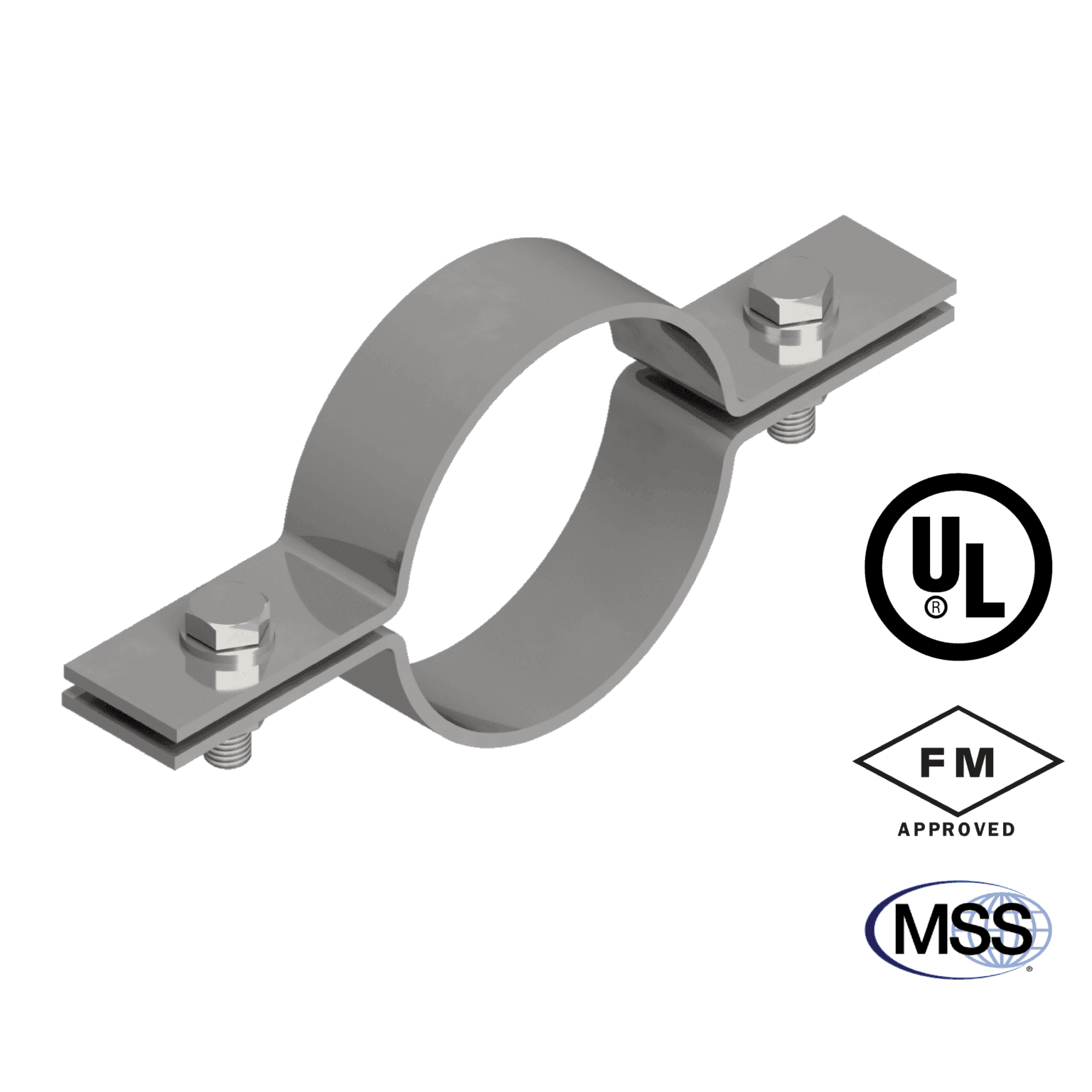

Riser Clamp
Pipe Hanger or Pipe Support connected to the Riser
- Pipe size
- 1 1/2" – 8"
- Variants
- 20
Application
- Installation of vertical riser pipes
Features & benefits
Complies with Manufacturer’s Standardization Society – MSS-SP-58 and MSS-SP-69 (Type 8)
Approved by Factory Mutual (FM) and Underwriters Laboratories (UL)
Acts as a rigid support or guide for vertical pipes
Allows transfer of vertical loads to building structure
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
20 of 20
| Article no. | Description | Pipe size (inch) | RFQ |
|---|---|---|---|
| FX-2003 | FX Riser Clamp 1 1/2′′, MSS SP-58 & SP-69(Type 8), FM, UL | 1 1/2" | |
| FX-2004 | FX Riser Clamp 1 1/4′′, MSS SP-58 & SP-69(Type 8), FM, UL | 1 1/4" | |
| FX-2005 | FX Riser Clamp 1′′, MSS SP-58 & SP-69(Type 8), FM, UL | 1" | |
| FX-2006 | FX Riser Clamp 1/2′′, MSS SP-58 & SP-69(Type 8), UL | 1/2" | |
| FX-2007 | FX Riser Clamp 10′′, MSS SP-58 & SP-69(Type 8), UL | 10" | |
| FX-2008 | FX Riser Clamp 12′′, MSS SP-58 & SP-69(Type 8), UL | 12" | |
| FX-2009 | FX Riser Clamp 14′′, MSS SP-58 & SP-69(Type 8) | 14" | |
| FX-2010 | FX Riser Clamp 16′′, MSS SP-58 & SP-69(Type 8) | 16" | |
| FX-2011 | FX Riser Clamp 18′′, MSS SP-58 & SP-69(Type 8) | 18" | |
| FX-2012 | FX Riser Clamp 2 1/2′′, MSS SP-58 & SP-69(Type 8), FM, UL | 2 1/2" | |
| FX-2013 | FX Riser Clamp 2′′, MSS SP-58 & SP-69(Type 8), FM, UL | 2" | |
| FX-2014 | FX Riser Clamp 20′′, MSS SP-58 & SP-69(Type 8) | 20" | |
| FX-2015 | FX Riser Clamp 24′′, MSS SP-58 & SP-69(Type 8) | 24" | |
| FX-2016 | FX Riser Clamp 3 1/2′′, MSS SP-58 & SP-69(Type 8), FM, UL | 3 1/2" | |
| FX-2017 | FX Riser Clamp 3′′, MSS SP-58 & SP-69(Type 8), FM, UL | 3" | |
| FX-2018 | FX Riser Clamp 3/4′′, MSS SP-58 & SP-69(Type 8), FM, UL | 3/4" | |
| FX-2019 | FX Riser Clamp 4′′, MSS SP-58 & SP-69(Type 8), FM, UL | 4" | |
| FX-2020 | FX Riser Clamp 5′′, MSS SP-58 & SP-69(Type 8), FM, UL | 5" | |
| FX-2021 | FX Riser Clamp 6′′, MSS SP-58 & SP-69(Type 8), FM, UL | 6" | |
| FX-2022 | FX Riser Clamp 8′′, MSS SP-58 & SP-69(Type 8), FM, UL | 8" |
Downloads
Datasheets
