Swivel Hanger

Name: Swivel Hanger
Brand: Fixotec
SKU: FX-SWIVEL-HANGER

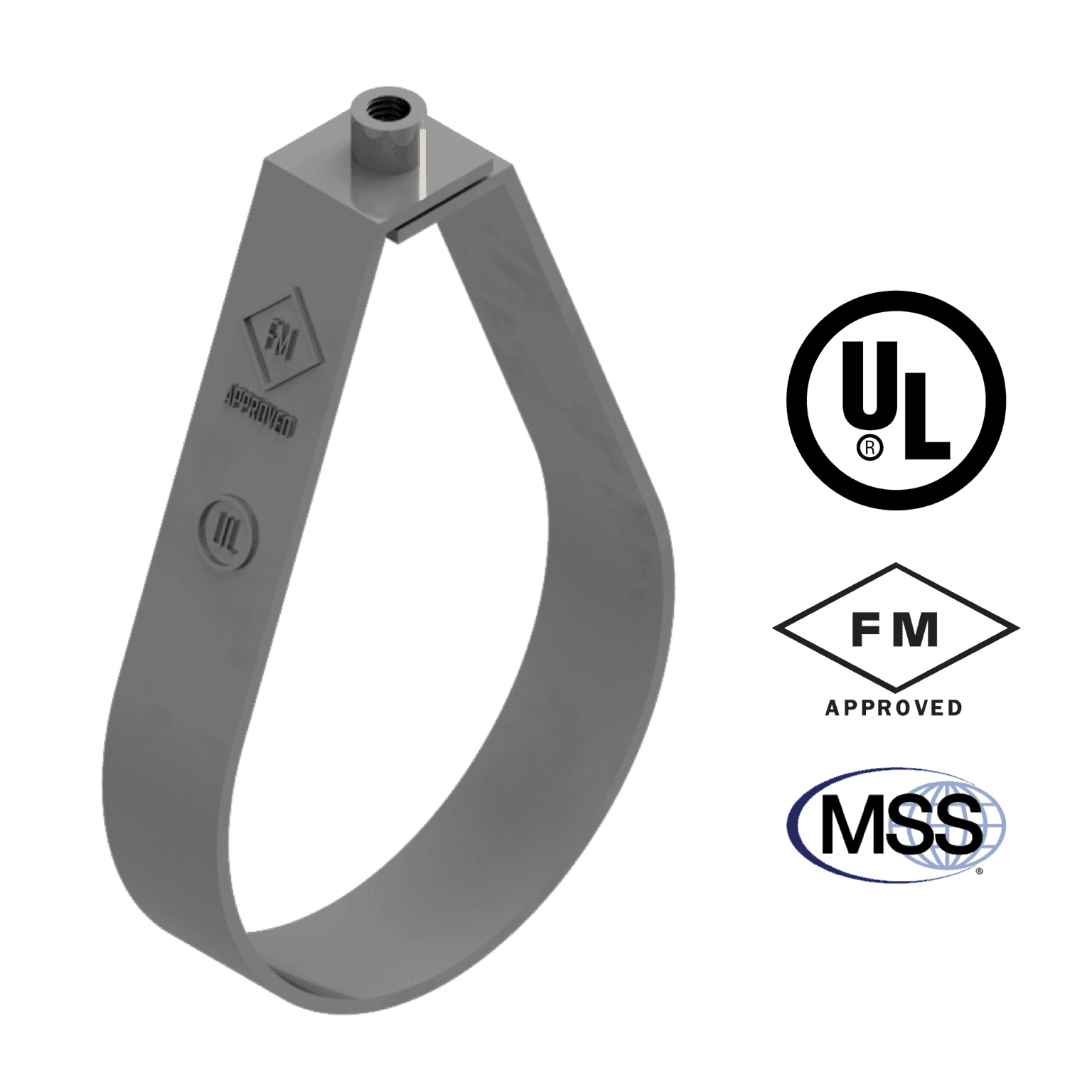

Pipe Attachment consisting of a formed steel Strap and a knurled swivel nut

Application

Features & benefits

Easy to install without any tools

Approved by Factory Mutual (FM) and Underwriters Laboratories (UL)

Complies with Manufacturer’s Standardization Society – MSS-SP-58 and MSS-SP-69 (Type 10)

Knurled swivel nut allows vertical pipe alignment during and after installation

Can be provided with noise insulating high quality EPDM lining

Article list

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchPipe size (inch)

13 of 13

Article no.	Description	Pipe size (inch)
FX-2045	FX Swivel Hanger, M10, 1-1/2′′, MSS SP-58 & SP-69(Type 10), FM, UL	1 1/2"
FX-2046	FX Swivel Hanger, M10, 1-1/4′′, MSS SP-58 & SP-69(Type 10), FM, UL	1 1/4"
FX-2047	FX Swivel Hanger, M10, 1′′, MSS SP-58 & SP-69(Type 10), FM, UL	1"
FX-2048	FX Swivel Hanger, M10, 1/2′′, MSS SP-58 & SP-69(Type 10), UL	1/2"
FX-2049	FX Swivel Hanger, M10, 2-1/2′′, MSS SP-58 & SP-69(Type 10), FM, UL	2 1/2"
FX-2050	FX Swivel Hanger, M10, 2′′, MSS SP-58 & SP-69(Type 10), FM, UL	2"
FX-2051	FX Swivel Hanger, M10, 3-1/2′′, MSS SP-58 & SP-69(Type 10), FM, UL	3 1/2"
FX-2052	FX Swivel Hanger, M10, 3′′, MSS SP-58 & SP-69(Type 10), FM, UL	3"
FX-2053	FX Swivel Hanger, M10, 3/4′′, MSS SP-58 & SP-69(Type 10), FM, UL	3/4"
FX-2054	FX Swivel Hanger, M10, 4′′, MSS SP-58 & SP-69(Type 10), FM, UL	4"
FX-2055	FX Swivel Hanger, M12, 5′′, MSS SP-58 & SP-69(Type 10), FM, UL	5"
FX-2056	FX Swivel Hanger, M12, 6′′, MSS SP-58 & SP-69(Type 10), FM, UL	6"
FX-2057	FX Swivel Hanger, M12, 8′′, MSS SP-58 & SP-69(Type 10), FM, UL	8"
