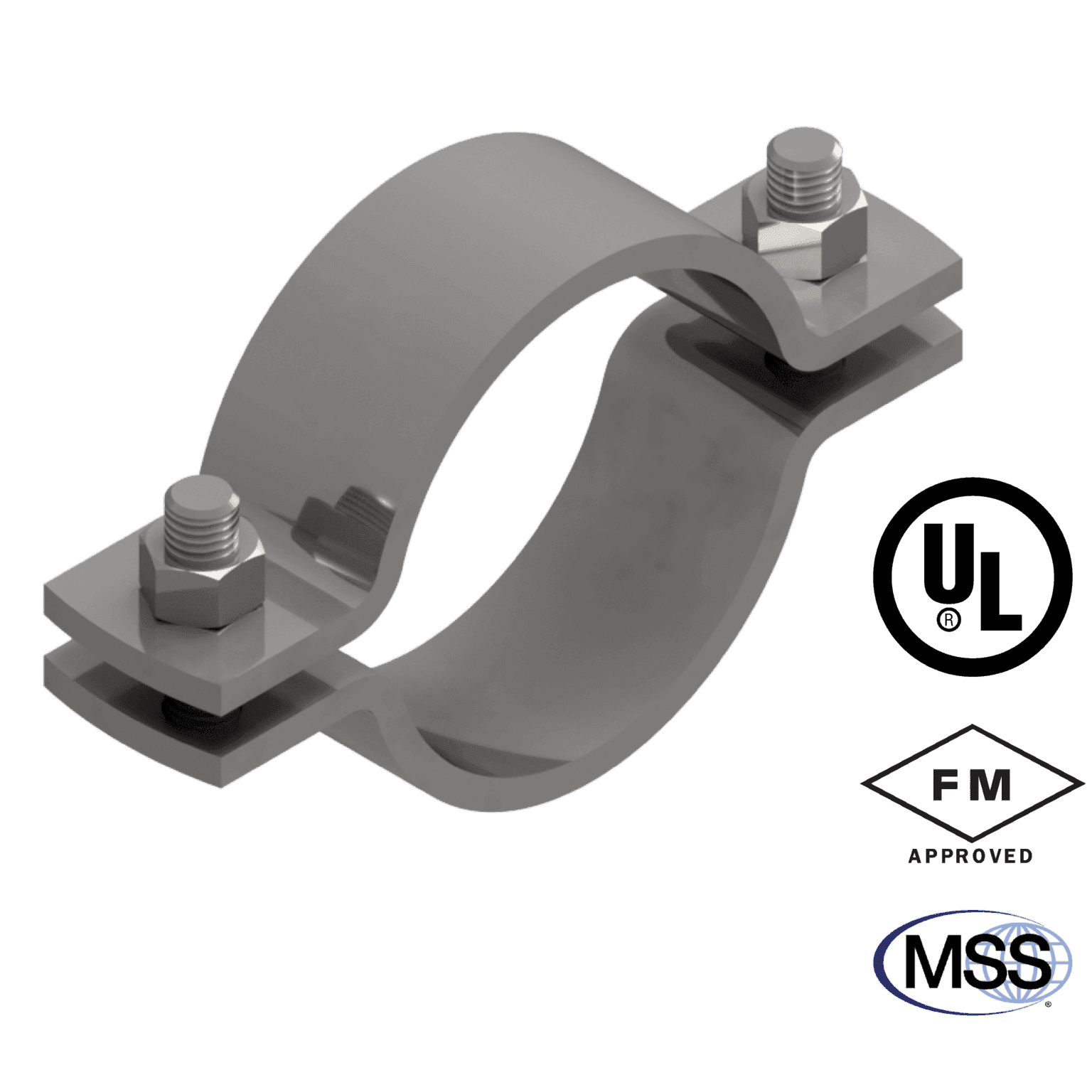

SRS Standard
Two piece special clamp with strong clamping bolts
- Pipe size
- 1" – 8"
- Variants
- 20
Application
- Installation of horizontal heavy duty pipes
- Suitable for distribution of heavy loads when mounting pipes with longer spans
Features & benefits
Approved by Factory Mutual (FM) and Underwriters Laboratories (UL)
Complies with Manufacturer’s Standardization Society – MSS-SP-58 and MSS-SP-69 (Type 4)
Two clamping bolts offers enhanced flexibility in accomdating higher variation of pipe diameters
Two clamping bolts offers enhanced strength and stability
Heavy duty design results in higher load carrying capcity
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
20 of 20
| Article no. | Description | Pipe size (inch) | RFQ |
|---|---|---|---|
| FX-1981 | FX SRS Standard, 1-1/2′′, MSS SP-58 & SP-69(Type 4), FM, UL | 11/2" | |
| FX-1982 | FX SRS Standard, 1-1/4′′, MSS SP-58 & SP-69(Type 4), FM, UL | 11/4" | |
| FX-1983 | FX SRS Standard, 1′′, MSS SP-58 & SP-69(Type 4), FM, UL | 1" | |
| FX-1984 | FX SRS Standard, 1/2′′, MSS SP-58 & SP-69(Type 4), UL | 1/2" | |
| FX-1985 | FX SRS Standard, 10′′, MSS SP-58 & SP-69(Type 4), UL | 10" | |
| FX-1986 | FX SRS Standard, 12′′, MSS SP-58 & SP-69(Type 4), UL | 12" | |
| FX-1987 | FX SRS Standard, 14′′, MSS SP-58 & SP-69(Type 4) | 14" | |
| FX-1988 | FX SRS Standard, 16′′, MSS SP-58 & SP-69(Type 4) | 16" | |
| FX-1989 | FX SRS Standard, 18′′, MSS SP-58 & SP-69(Type 4) | 18" | |
| FX-1990 | FX SRS Standard, 2-1/2′′, MSS SP-58 & SP-69(Type 4), FM, UL | 21/2" | |
| FX-1991 | FX SRS Standard, 2′′, MSS SP-58 & SP-69(Type 4), FM, UL | 2" | |
| FX-1992 | FX SRS Standard, 20′′, MSS SP-58 & SP-69(Type 4) | 20" | |
| FX-1993 | FX SRS Standard, 24′′, MSS SP-58 & SP-69(Type 4) | 24" | |
| FX-1994 | FX SRS Standard, 3-1/2′′, MSS SP-58 & SP-69(Type 4), FM, UL | 31/2" | |
| FX-1995 | FX SRS Standard, 3′′, MSS SP-58 & SP-69(Type 4), FM, UL | 3" | |
| FX-1996 | FX SRS Standard, 3/4′′, MSS SP-58 & SP-69(Type 4), FM, UL | 3/4" | |
| FX-1997 | FX SRS Standard, 4′′, MSS SP-58 & SP-69(Type 4), FM, UL | 4" | |
| FX-1998 | FX SRS Standard, 5′′, MSS SP-58 & SP-69(Type 4), FM, UL | 5" | |
| FX-1999 | FX SRS Standard, 6′′, MSS SP-58 & SP-69(Type 4), FM, UL | 6" | |
| FX-2000 | FX SRS Standard, 8′′, MSS SP-58 & SP-69(Type 4), FM, UL | 8" |
Downloads
Datasheets
