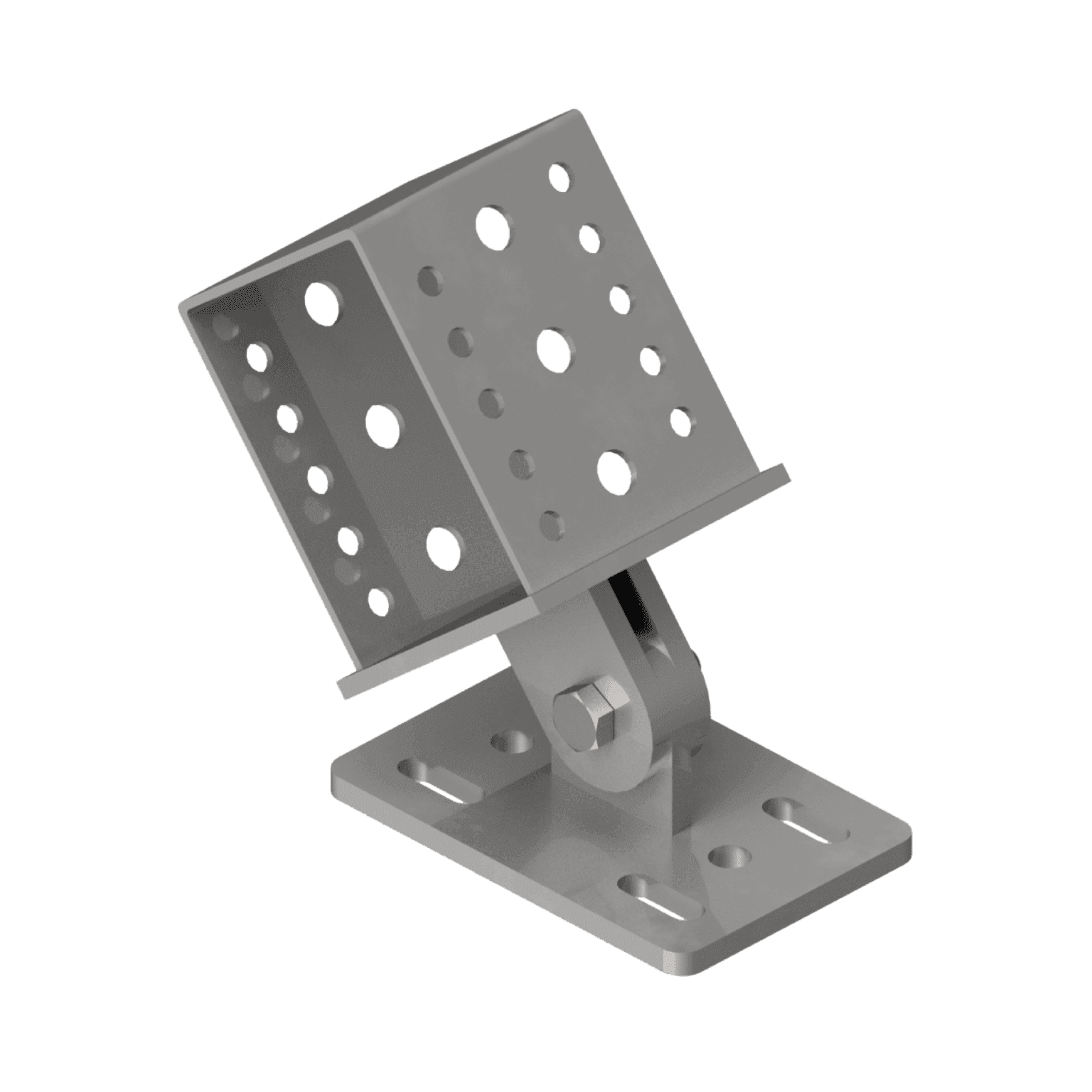

FXT Variable Saddle Flange
Variable supporting flange for FXT Heavy Rail Profiles
Application
- Ideal for bracing installation for FXT Heavy Rail Profile structures and seismic support installations
- Structural connection of FXT Heavy Rail Profiles with any supporting material
Features & benefits
Increased flexibility during installation
Prefabricated for rapid installation
Secured anchoring of FXT Heavy Rail Profiles with base
High load bearing capacity owing to special material properties and design
Hot-dip galvanized in accordance to EN 1461 assures higher corrosion protection and provides flexibility of using in Indoors as well as outdoors
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
6 of 6
| Article no. | Description | Design | Profile | RFQ |
|---|---|---|---|---|
| FX-4132 | FXT Variable Saddle Flange, 80|80, Heavy | Heavy | 80|80 | |
| FX-4133 | FXT Variable Saddle Flange, 100|120, Heavy | Heavy | 100|120 | |
| FX-4134 | FXT Variable Saddle Flange, 100|100, Heavy | Heavy | 100|100 | |
| FX-4135 | FXT Variable Saddle Flange, 80|80 | N Heavy | 80|80 | |
| FX-4136 | FXT Variable Saddle Flange, 100|120 | N Heavy | 100|120 | |
| FX-4137 | FXT Variable Saddle Flange, 100|100 | N Heavy | 100|100 |
Downloads
Datasheets
