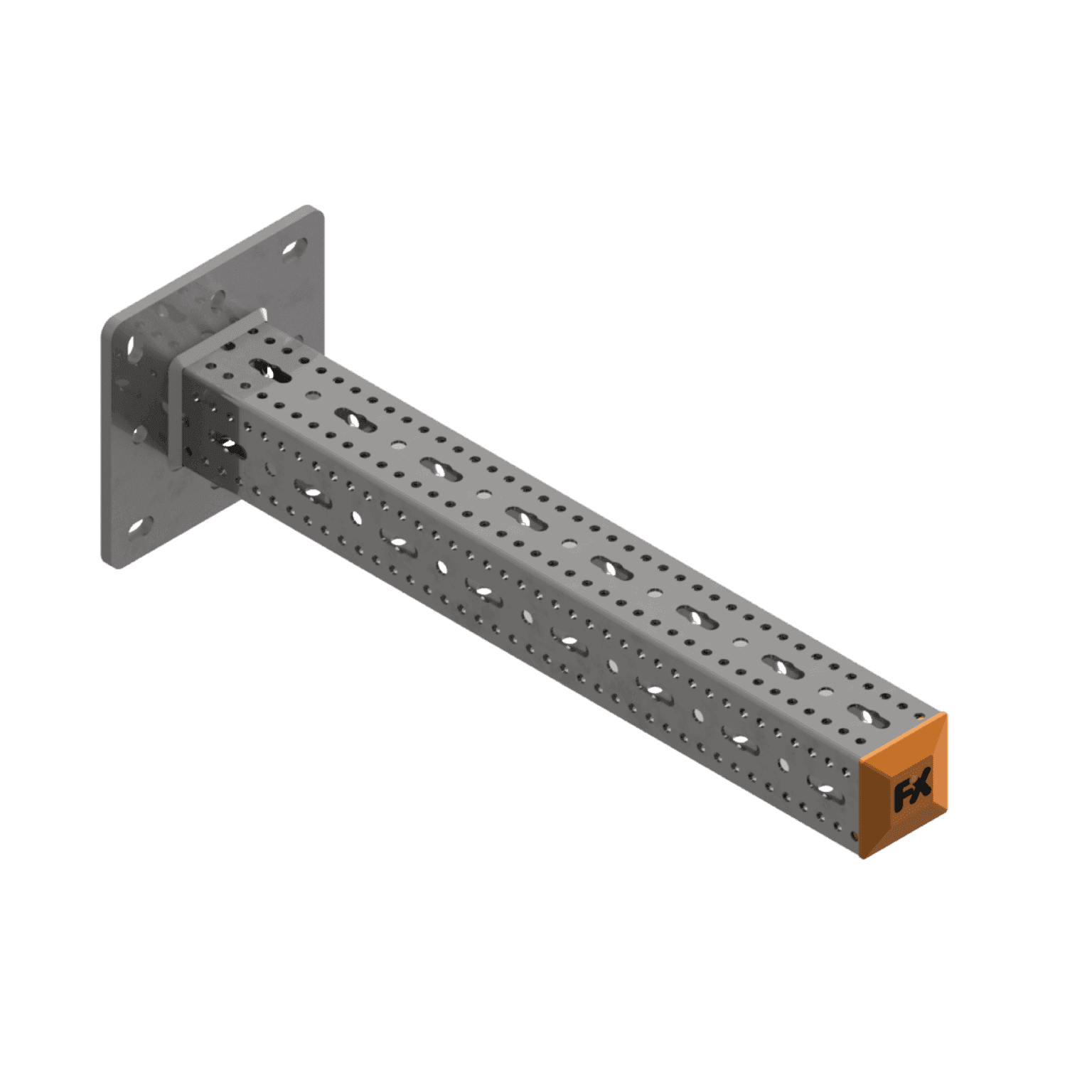

FXT Cantilever Bracket
Pre Fabricated Cantilever Bracket
- Length
- 500 – 1500
- Variants
- 12
Application
- Installation of pipelines in industrial construction, plant building construction and heavy-duty service as a cantilever support structure
- Supporting structures for heavy suspended services
Features & benefits
Easy to install with FXT Self threading bolts
Available in variable lengths (Upto 1.500 m) for supporting different services installations
High load bearing capacity owing to special material properties and design
Hot-dip galvanized in accordance to EN 1461 assures higher corrosion protection and provides flexibility of using in Indoors as well as outdoors
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
12 of 12
| Article no. | Description | Profile | Length (mm) | RFQ |
|---|---|---|---|---|
| FX-2714 | FXT Cantilever Bracket, 100|100|3, 1500 mm | 100|100|3 | 1500 | |
| FX-2715 | FXT Cantilever Bracket, 100|100|3, 500 mm | 100|100|3 | 500 | |
| FX-2716 | FXT Cantilever Bracket, 100|100|3, 1000 mm | 100|100|3 | 1000 | |
| FX-2717 | FXT Cantilever Bracket, 100|120|4, 1500 mm | 100|120|4 | 1500 | |
| FX-2718 | FXT Cantilever Bracket, 100|120|4, 500 mm | 100|120|4 | 500 | |
| FX-2719 | FXT Cantilever Bracket, 100|120|4, 1000 mm | 100|120|4 | 1000 | |
| FX-2720 | FXT Cantilever Bracket, 100|150|4, 1500 mm | 100|150|4 | 1500 | |
| FX-2721 | FXT Cantilever Bracket, 100|150|4, 500 mm | 100|150|4 | 500 | |
| FX-2722 | FXT Cantilever Bracket, 100|150|4, 1000 mm | 100|150|4 | 1000 | |
| FX-2723 | FXT Cantilever Bracket, 80|80|3, 1500 mm | 80|80|3 | 1500 | |
| FX-2724 | FXT Cantilever Bracket, 80|80|3, 500 mm | 80|80|3 | 500 | |
| FX-2725 | FXT Cantilever Bracket, 80|80|3, 1000 mm | 80|80|3 | 1000 |
