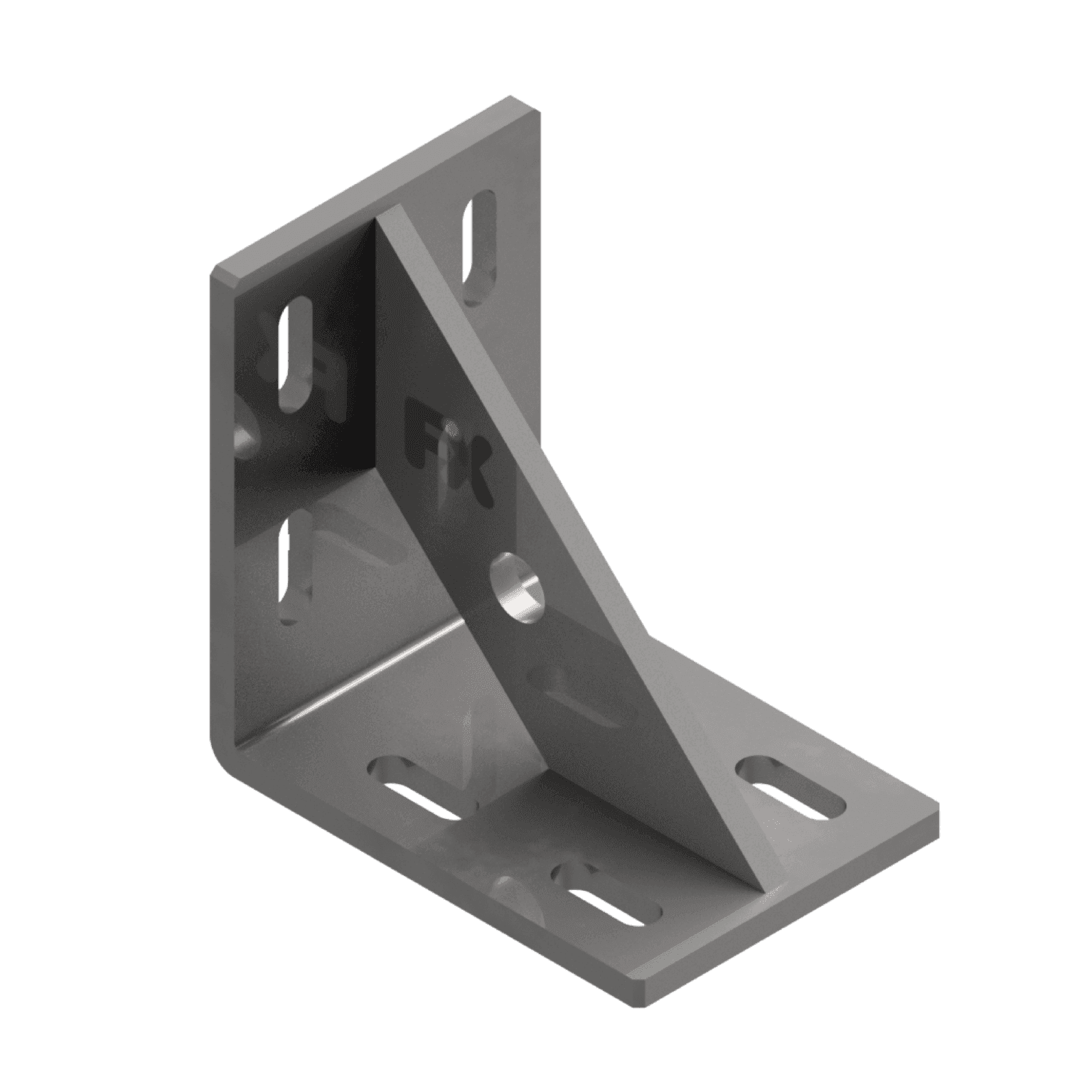

FXT Angle Bracket
Supporting bracket for FXT Heavy Rail Profiles
Application
- Building frame structures using FXT Heavy Rail Profiles
- Structural connection of FXT Heavy Rail Profiles with any supporting material
Features & benefits
Easy to install with FXT Self threading bolts
Strengthening of FXT Heavy Rail Profile connections
High load bearing capacity owing to special material properties and design
Hot-dip galvanized in accordance to EN 1461 assures higher corrosion protection and provides flexibility of using in Indoors as well as outdoors
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
5 of 5
| Article no. | Description | Profile | RFQ |
|---|---|---|---|
| FX-2707 | FXT Angle Bracket 120x140x100x8 | 100|100, 100|120 | |
| FX-2708 | FXT Angle Bracket 100x140x8 | 100|100, 100|120, 100|150 | |
| FX-2709 | FXT Angle Bracket 120x140x120x8 | 100|120 | |
| FX-2710 | FXT Angle Bracket 80x140x6 | 80|80 | |
| FX-2711 | FXT Angle Bracket 100x140x80x6 | 80|80, 100|100 |
Downloads
Datasheets
