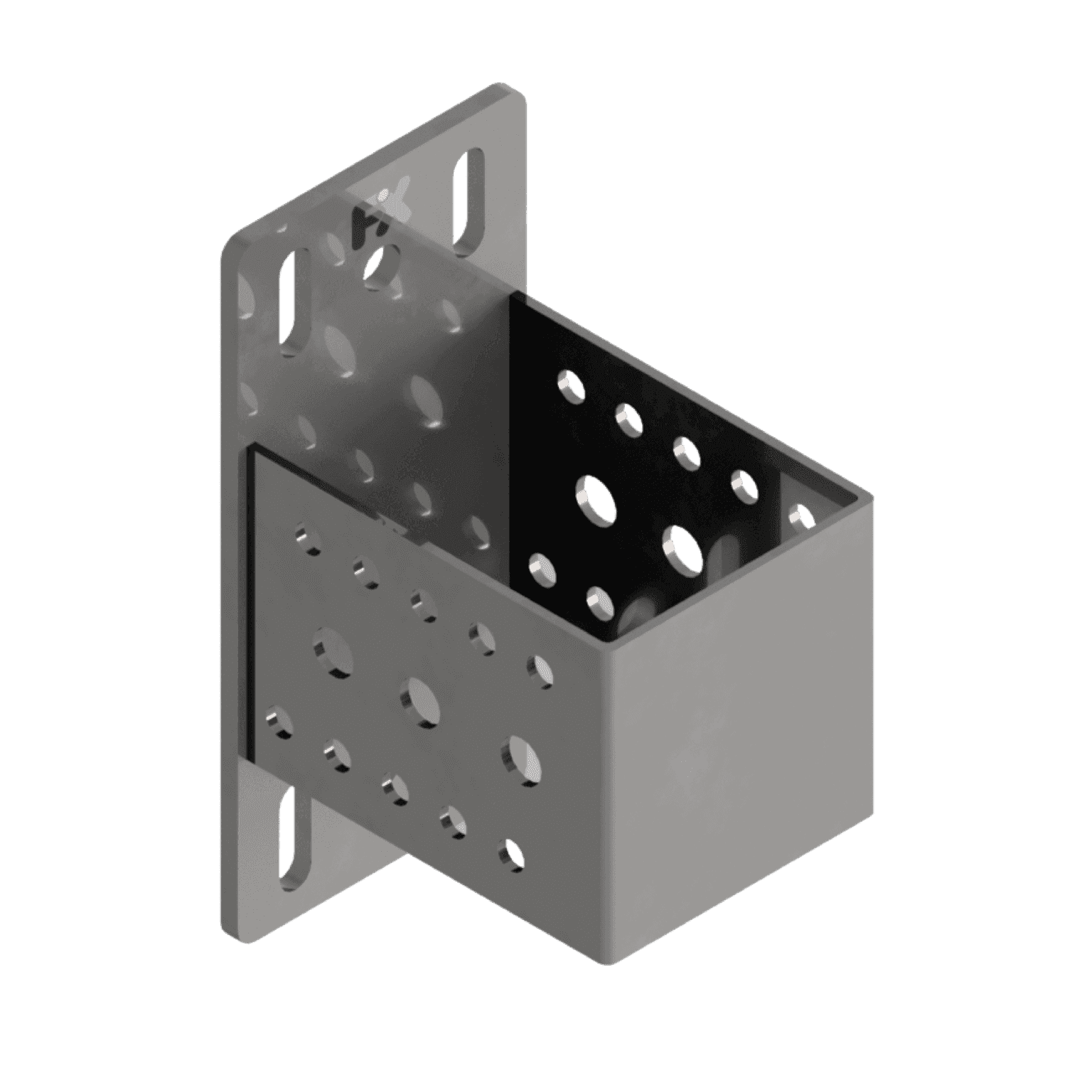

FXT Saddle Flange
Supporting flange for FXT Heavy Rail Profiles
Application
- Structural connection of FXT Heavy Rail Profiles with any supporting material
- Allows for individual creation of cantilever arms
Features & benefits
Provides higher torsional and bending rigidity for FXT Heavy Rail Profiles
Simple installation by inserting the FXT Heavy Rail Profile in the saddle
Allows lateral and vertical adjustment of FXT Heavy Rail Profiles with reliable fastening
High load bearing capacity owing to special material properties and design
Hot-dip galvanized in accordance to EN 1461 assures higher corrosion protection and provides flexibility of using in Indoors as well as outdoors
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
3 of 3
| Article no. | Description | Profile | RFQ |
|---|---|---|---|
| FX-2740 | FXT Saddle Flange, 100|100 | 100|100 | |
| FX-2741 | FXT Saddle Flange, 100|120 | 100|120 | |
| FX-2742 | FXT Saddle Flange, 80|80 | 80|80 |
