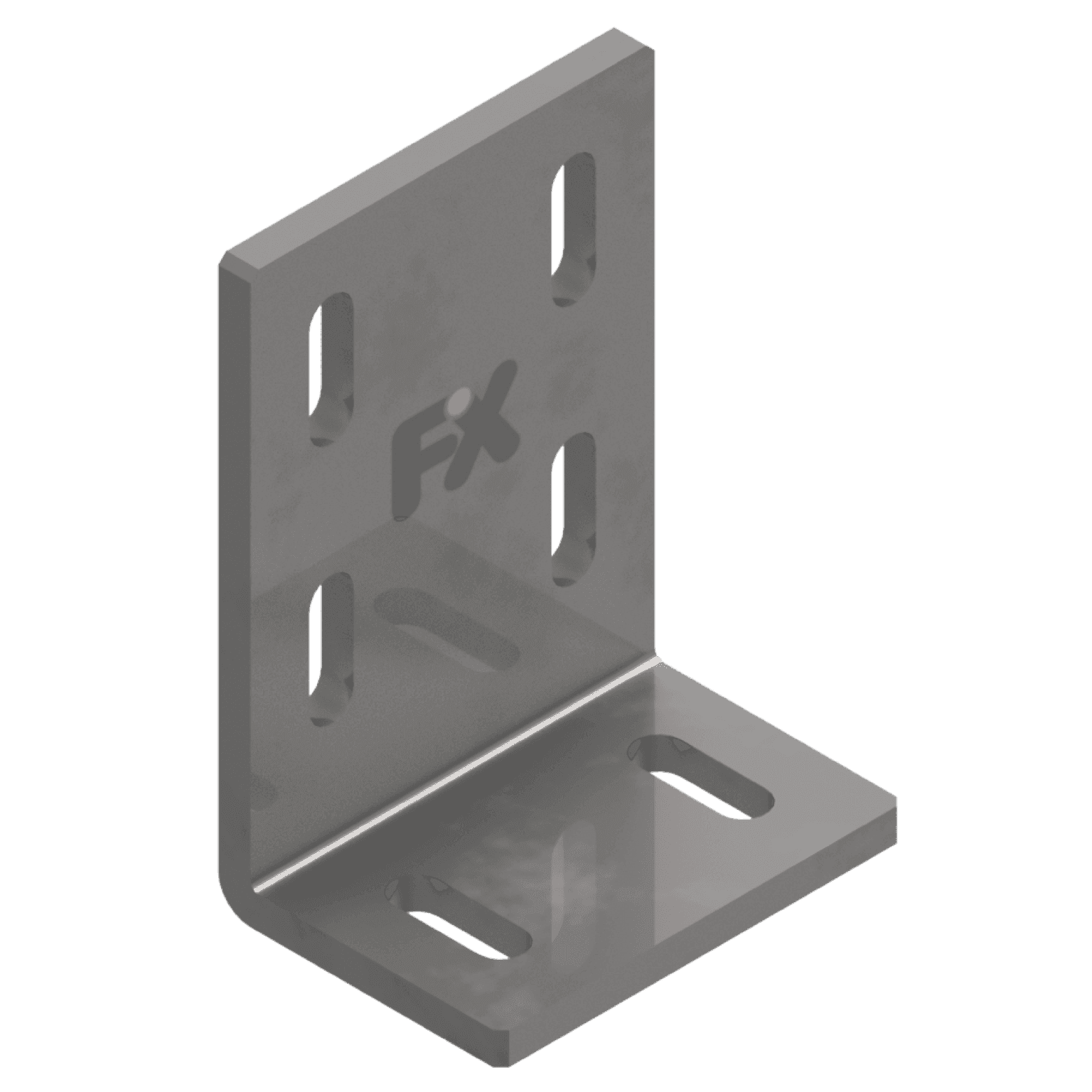

FXT Mounting Angle 90
Connection element for 90° connections of FXT Heavy Rail Profiles
Application
- Building heavy duty frame structures using FXT Heavy Rail Profiles
- Structural connection of FXT Heavy Rail Profiles
- Connecting FXT Heavy Rail Profiles at right angles
Features & benefits
Quick and efficient connections of heavy support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design
Hot-dip galvanized in accordance to EN 1461 assures higher corrosion protection and provides flexibility of using in Indoors as well as outdoors
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
3 of 3
| Article no. | Description | Design | Profile | RFQ |
|---|---|---|---|---|
| FX-4125 | FXT Mounting Angle 90°, (1+1) | (1+1) | 80|80 | |
| FX-4126 | FXT Mounting Angle 90°, (2+1), 80|80 | (2+1) | 80|80 | |
| FX-4128 | FXT Mounting Angle 90° (2+1), 100|100, 100|120, 100|150 | (2+1) | 100|100,100|120,100|150 |
