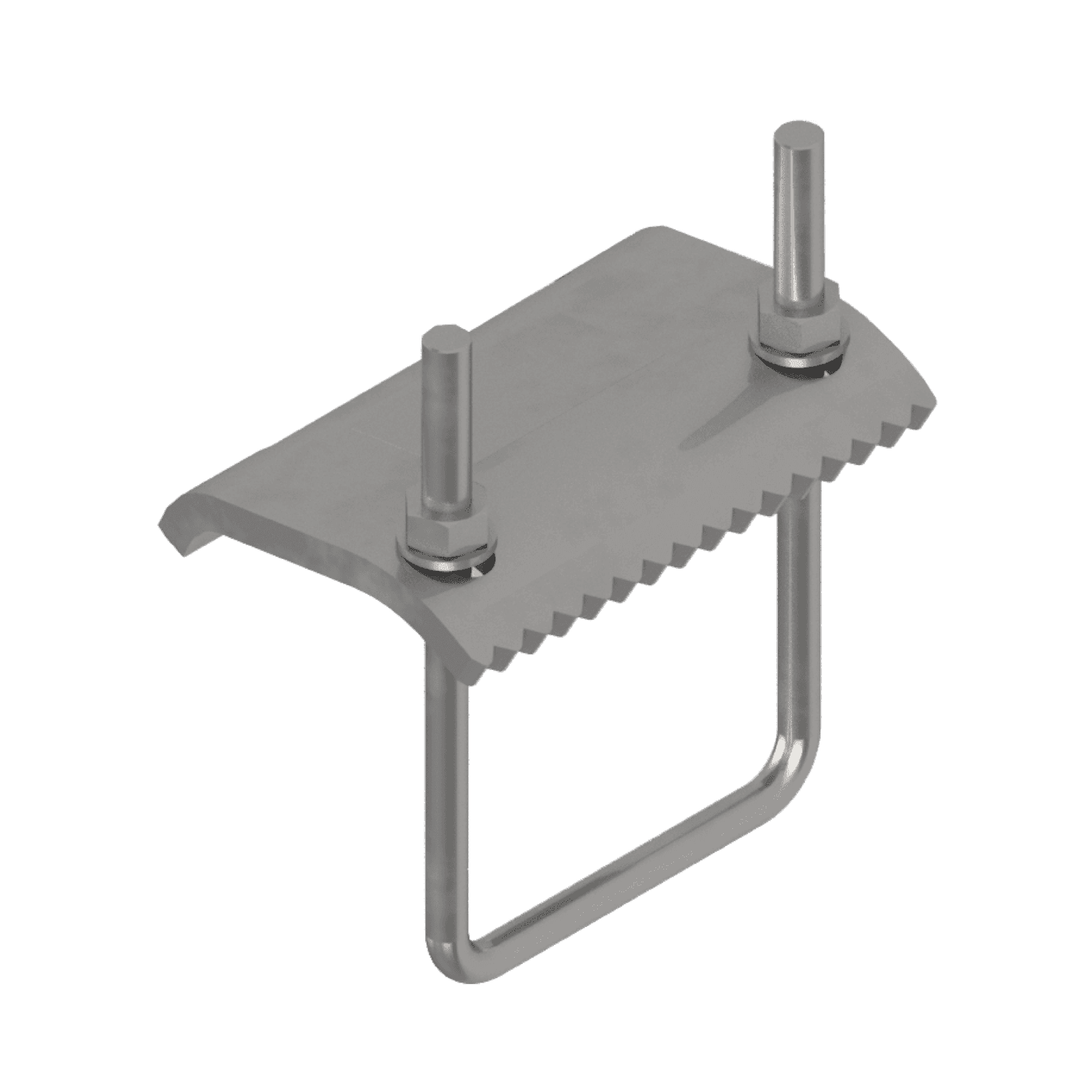

FXT Girder Cleat
Connection element for attachment of FXT Heavy Rail Profiles to steel girders
Application
- Connection of FXT Heavy Rail Profiles to steel girders without welding or drilling
Features & benefits
Easy to install, Pre-assembled Kit
Enables secured transfer of loads from FXT Heavy Rail Profiles to steel girders
Allows adjustment of FXT Heavy Rail Profiles along and across the supporting beam
Suitable for Flange thicknesses of common steel girder profiles
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Profile | RFQ |
|---|---|---|---|
| FX-2765 | FXT Girder Cleat, 100|150 | 100|150 | |
| FX-2766 | FXT Girder Cleat, 80|80 | 80|80 | |
| FX-2767 | FXT Girder Cleat, 100|100 | 100|100 | |
| FX-2768 | FXT Girder Cleat, 100|120 | 100|120 |
