Connectors

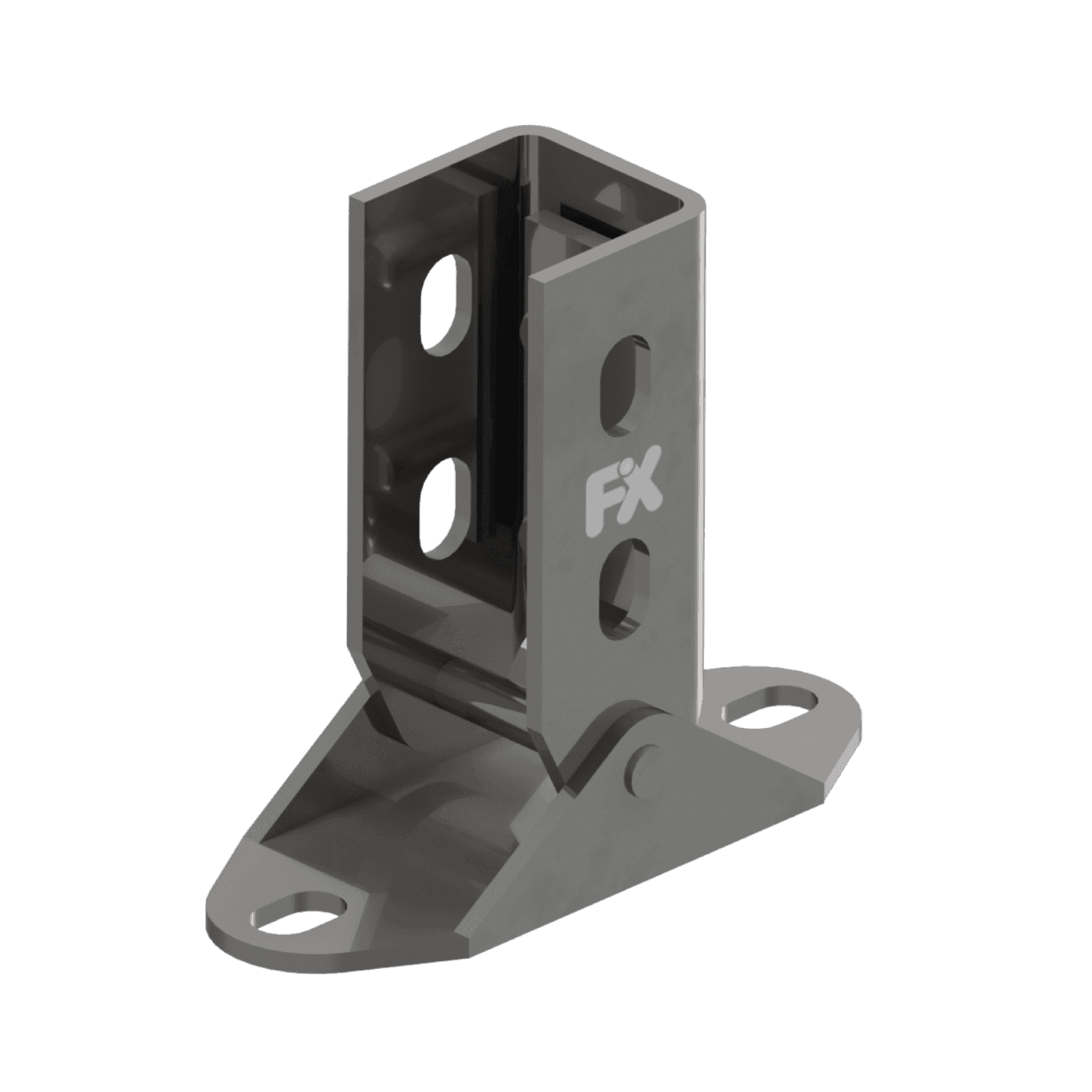

FXC Variable Saddle
Variable supporting flange for FXC Mounting Channels
- Finish
- Galvanized, HDG
- Variants
- 4
Application
- Ideal for bracing installation for FXC Mounting Channel structures and seismic support installations
- Structural connection of FXC Mounting Channels with any supporting material
- Suitable for inclined roof/ceilings in PEB and RCC structures
Features & benefits
Increased flexibility during installation
Ease of installation with less components
Pre-assembled for rapid installation.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
4 of 4
| Article no. | Description | Design | Surface Finish | RFQ |
|---|---|---|---|---|
| FX-2827 | FXC Variable Saddle Flange (1+1) – 38|24, 38|40, 40|60 | (1+1) | Galvanized | |
| FX-2828 | FXC Variable Saddle Flange (1+1) – 38|24, 38|40, 40|60 | (1+1) | HDG | |
| FX-2829 | FXC Variable Saddle Flange (2+2) – 38|24, 38|40, 40|60 | (2+2) | Galvanized | |
| FX-2830 | FXC Variable Saddle Flange (2+2) – 38|24, 38|40, 40|60 | (2+2) | HDG |
