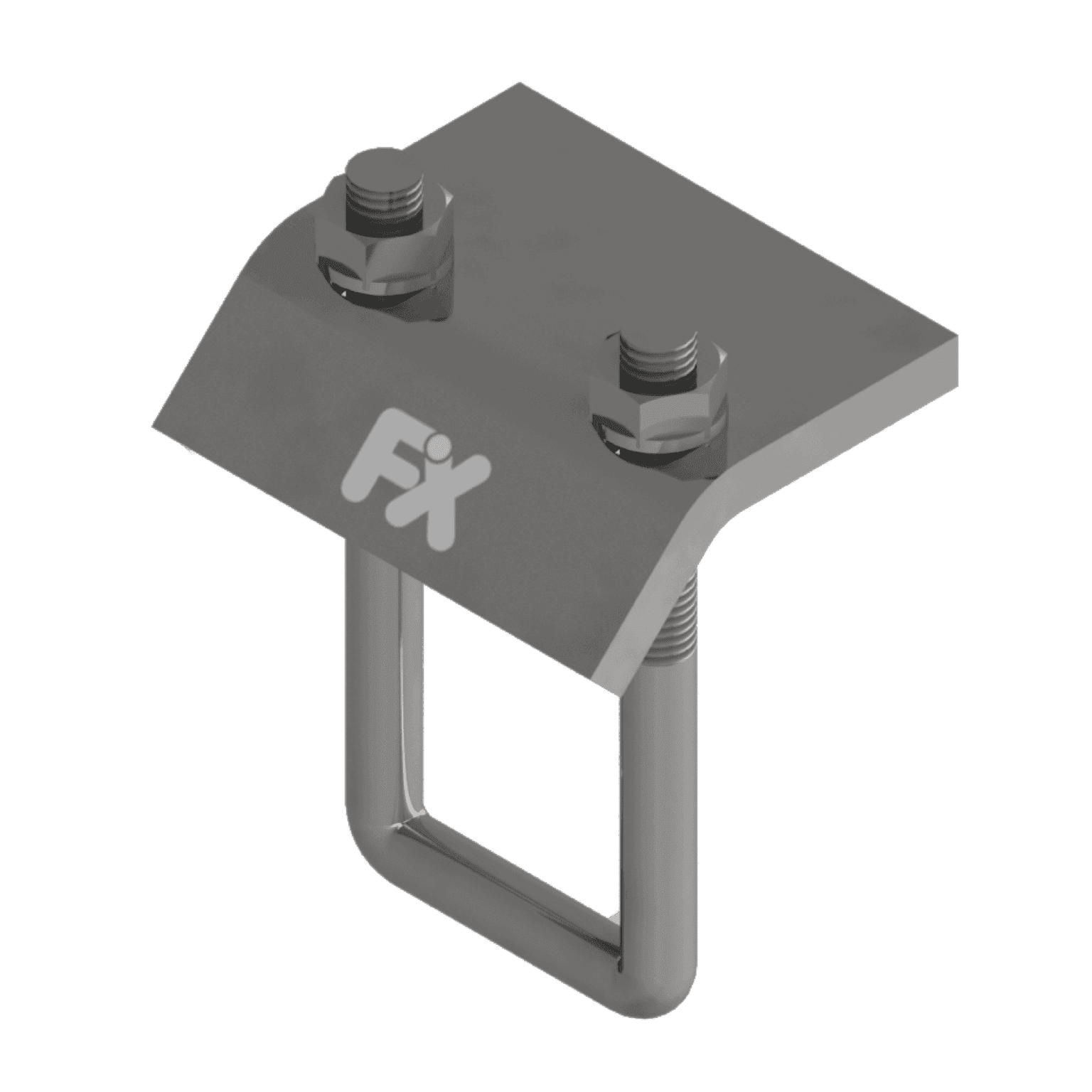

FXC Girder Cleat

Connection element for attachment of FXC Mounting Channels to steel girders without welding or drilling

Application

Connection of FXC Mounting Channels to steel girders without welding or drilling

Features & benefits

Easy to install, Pre-assembled Kit

Enables secured transfer of loads from FXC Mounting Channel to steel girders

Allows adjustment of FXC Mounting Channel along and across the supporting beam

Suitable for Flange thicknesses of common steel girder profiles

Article list

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchThreadProfileSurface Finish

12 of 12

Article no.	Description	Thread	Profile	Surface Finish
FX-1764	FXC Girder Cleat M6 – 27\|18, 28\|30	M6	27\|18, 28\|30	Galvanized
FX-1765	FXC Girder Cleat M6 – 27\|18, 28\|30	M6	27\|18, 28\|30	HDG
FX-1766	FXC Girder Cleat M8 – 38\|24, 38\|40	M8	38\|24, 38\|40	Galvanized
FX-1767	FXC Girder Cleat M8 – 38\|24, 38\|40	M8	38\|24, 38\|40	HDG
FX-1768	FXC Girder Cleat M8 – 40\|60, 38\|80, 40\|80	M8	40\|60, 38\|80, 40\|80	Galvanized
FX-1769	FXC Girder Cleat M8 – 40\|60, 38\|80, 40\|80	M8	40\|60, 38\|80, 40\|80	HDG
FX-1770	FXC Girder Cleat M10 – 38\|40, 40\|60	M10	38\|40, 40\|60	Galvanized
FX-1771	FXC Girder Cleat M10 – 38\|40, 40\|60	M10	38\|40, 40\|60	HDG
FX-1772	FXC Girder Cleat M10 – 38\|80, 40\|80	M10	38\|80, 40\|80	Galvanized
FX-1773	FXC Girder Cleat M10 – 38\|80, 40\|80	M10	38\|80, 40\|80	HDG
FX-1774	FXC Girder Cleat M10 – 40\|120	M10	40\|120	Galvanized
FX-1775	FXC Girder Cleat M10 – 40\|120	M10	40\|120	HDG
