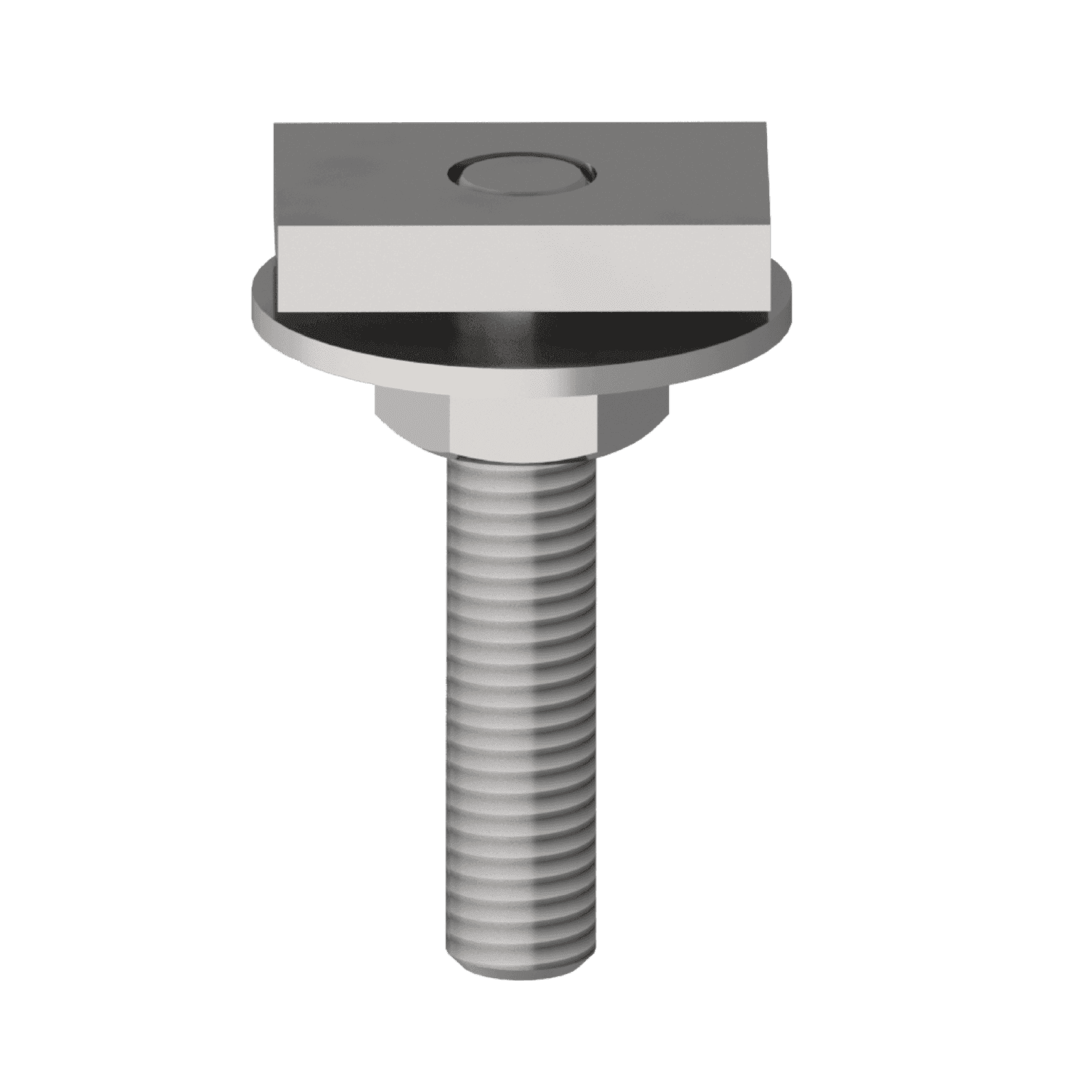

FXC Hammer Head Fastener

Connection element for mounting of pipe clamps to FXC Mounting Channels

Finish: Galvanized, HDG
Thread: M8, M10, M12
Length: 20 – 180
Variants: 78

Add variants to RFQ Datasheet Talk to engineering

Application

Mounting of pipe clamps to the FXR Mounting Channels

Features & benefits

Enables safe load transfer to FXC Mounting Channels

Various lengths and thread diameters can be combined within the same mounting channel

Lateral adjustment at any moment enables proper alignment of the pipeline.

Article list

Variants & article numbers

Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.

SearchThreadProfileLength (mm)Surface Finish

78 of 78

Article no.	Description	Thread	Profile	Length (mm)	Surface Finish
FX-1818	FXC Hammer Head Fastener, M8 x 20 – 27\|18-28\|30	M8	27\|18-28\|30	20	Galvanized
FX-1819	FXC Hammer Head Fastener, M8 x 20 – 27\|18-28\|30	M8	27\|18-28\|30	20	HDG
FX-1820	FXC Hammer Head Fastener, M8 x 30 – 27\|18-28\|30	M8	27\|18-28\|30	30	Galvanized
FX-1821	FXC Hammer Head Fastener, M8 x 30 – 27\|18-28\|30	M8	27\|18-28\|30	30	HDG
FX-1822	FXC Hammer Head Fastener, M8 x 40 – 27\|18-28\|30	M8	27\|18-28\|30	40	Galvanized
FX-1823	FXC Hammer Head Fastener, M8 x 40 – 27\|18-28\|30	M8	27\|18-28\|30	40	HDG
FX-1824	FXC Hammer Head Fastener, M8 x 50 – 27\|18-28\|30	M8	27\|18-28\|30	50	Galvanized
FX-1825	FXC Hammer Head Fastener, M8 x 50 – 27\|18-28\|30	M8	27\|18-28\|30	50	HDG
FX-1826	FXC Hammer Head Fastener, M8 x 60 – 27\|18-28\|30	M8	27\|18-28\|30	60	Galvanized
FX-1827	FXC Hammer Head Fastener, M8 x 60 – 27\|18-28\|30	M8	27\|18-28\|30	60	HDG
FX-1828	FXC Hammer Head Fastener, M8 x 70 – 27\|18-28\|30	M8	27\|18-28\|30	70	Galvanized
FX-1829	FXC Hammer Head Fastener, M8 x 70 – 27\|18-28\|30	M8	27\|18-28\|30	70	HDG
FX-3546	FXC Hammer Head Fastener, M8 x 80 – 27\|18-28\|30	M8	27\|18-28\|30	80	Galvanized
FX-3547	FXC Hammer Head Fastener, M8 x 80 – 27\|18-28\|30	M8	27\|18-28\|30	80	HDG
FX-3548	FXC Hammer Head Fastener, M8 x 90 – 27\|18-28\|30	M8	27\|18-28\|30	90	Galvanized
FX-3549	FXC Hammer Head Fastener, M8 x 90 – 27\|18-28\|30	M8	27\|18-28\|30	90	HDG
FX-3550	FXC Hammer Head Fastener, M8 x 100 – 27\|18-28\|30	M8	27\|18-28\|30	100	Galvanized
FX-3551	FXC Hammer Head Fastener, M8 x 100 – 27\|18-28\|30	M8	27\|18-28\|30	100	HDG
FX-3552	FXC Hammer Head Fastener, M8 x 120 – 27\|18-28\|30	M8	27\|18-28\|30	120	Galvanized
FX-3553	FXC Hammer Head Fastener, M8 x 120 – 27\|18-28\|30	M8	27\|18-28\|30	120	HDG
FX-3554	FXC Hammer Head Fastener, M8 x 140 – 27\|18-28\|30	M8	27\|18-28\|30	140	Galvanized
FX-3555	FXC Hammer Head Fastener, M8 x 140 – 27\|18-28\|30	M8	27\|18-28\|30	140	HDG
FX-3556	FXC Hammer Head Fastener, M8 x 160 – 27\|18-28\|30	M8	27\|18-28\|30	160	Galvanized
FX-3557	FXC Hammer Head Fastener, M8 x 160 – 27\|18-28\|30	M8	27\|18-28\|30	160	HDG
FX-3558	FXC Hammer Head Fastener, M8 x 180 – 27\|18-28\|30	M8	27\|18-28\|30	180	Galvanized
FX-3559	FXC Hammer Head Fastener, M8 x 180 – 27\|18-28\|30	M8	27\|18-28\|30	180	HDG
FX-3560	FXC Hammer Head Fastener, M10 x 35 – 27\|18-28\|30	M10	27\|18-28\|30	35	Galvanized
FX-3561	FXC Hammer Head Fastener, M10 x 35 – 27\|18-28\|30	M10	27\|18-28\|30	35	HDG
FX-3566	FXC Hammer Head Fastener, M8 x 25 – 38\|24-40\|120	M8	38\|24-40\|120	25	Galvanized
FX-3567	FXC Hammer Head Fastener, M8 x 25 – 38\|24-40\|120	M8	38\|24-40\|120	25	HDG
FX-3568	FXC Hammer Head Fastener, M8 x 35 – 38\|24-40\|120	M8	38\|24-40\|120	35	Galvanized
FX-3569	FXC Hammer Head Fastener, M8 x 35 – 38\|24-40\|120	M8	38\|24-40\|120	35	HDG
FX-3570	FXC Hammer Head Fastener, M8 x 40 – 38\|24-40\|120	M8	38\|24-40\|120	40	Galvanized
FX-3571	FXC Hammer Head Fastener, M8 x 40 – 38\|24-40\|120	M8	38\|24-40\|120	40	HDG
FX-3572	FXC Hammer Head Fastener, M8 x 50 – 38\|24-40\|120	M8	38\|24-40\|120	50	Galvanized
FX-3573	FXC Hammer Head Fastener, M8 x 50 – 38\|24-40\|120	M8	38\|24-40\|120	50	HDG
FX-3574	FXC Hammer Head Fastener, M8 x 80 – 38\|24-40\|120	M8	38\|24-40\|120	80	Galvanized
FX-3575	FXC Hammer Head Fastener, M8 x 80 – 38\|24-40\|120	M8	38\|24-40\|120	80	HDG
FX-3576	FXC Hammer Head Fastener, M8 x 100 – 38\|24-40\|120	M8	38\|24-40\|120	100	Galvanized
FX-3577	FXC Hammer Head Fastener, M8 x 100 – 38\|24-40\|120	M8	38\|24-40\|120	100	HDG
FX-3578	FXC Hammer Head Fastener, M8 x 120 – 38\|24-40\|120	M8	38\|24-40\|120	120	Galvanized
FX-3579	FXC Hammer Head Fastener, M8 x 120 – 38\|24-40\|120	M8	38\|24-40\|120	120	HDG
FX-3580	FXC Hammer Head Fastener, M8 x 140 – 38\|24-40\|120	M8	38\|24-40\|120	140	Galvanized
FX-3581	FXC Hammer Head Fastener, M8 x 140 – 38\|24-40\|120	M8	38\|24-40\|120	140	HDG
FX-3582	FXC Hammer Head Fastener, M8 x 160 – 38\|24-40\|120	M8	38\|24-40\|120	160	Galvanized
FX-3583	FXC Hammer Head Fastener, M8 x 160 – 38\|24-40\|120	M8	38\|24-40\|120	160	HDG
FX-3584	FXC Hammer Head Fastener, M8 x 180 – 38\|24-40\|120	M8	38\|24-40\|120	180	Galvanized
FX-3585	FXC Hammer Head Fastener, M8 x 180 – 38\|24-40\|120	M8	38\|24-40\|120	180	HDG
FX-3586	FXC Hammer Head Fastener, M10 x 35 – 38\|24-40\|120	M10	38\|24-40\|120	35	Galvanized
FX-3587	FXC Hammer Head Fastener, M10 x 35 – 38\|24-40\|120	M10	38\|24-40\|120	35	HDG
FX-3588	FXC Hammer Head Fastener, M10 x 55 – 38\|24-40\|120	M10	38\|24-40\|120	55	Galvanized
FX-3589	FXC Hammer Head Fastener, M10 x 55 – 38\|24-40\|120	M10	38\|24-40\|120	55	HDG
FX-3590	FXC Hammer Head Fastener, 10 x 80 – 38\|24-40\|120	M10	38\|24-40\|120	80	Galvanized
FX-3591	FXC Hammer Head Fastener, 10 x 80 – 38\|24-40\|120	M10	38\|24-40\|120	80	HDG
FX-3592	FXC Hammer Head Fastener, M10 x 100 – 38\|24-40\|120	M10	38\|24-40\|120	100	Galvanized
FX-3593	FXC Hammer Head Fastener, M10 x 100 – 38\|24-40\|120	M10	38\|24-40\|120	100	HDG
FX-3594	FXC Hammer Head Fastener, M10 x 120 – 38\|24-40\|120	M10	38\|24-40\|120	120	Galvanized
FX-3595	FXC Hammer Head Fastener, M10 x 120 – 38\|24-40\|120	M10	38\|24-40\|120	120	HDG
FX-3596	FXC Hammer Head Fastener, M10 x 140 – 38\|24-40\|120	M10	38\|24-40\|120	140	Galvanized
FX-3597	FXC Hammer Head Fastener, M10 x 140 – 38\|24-40\|120	M10	38\|24-40\|120	140	HDG
FX-3598	FXC Hammer Head Fastener, M10 x 160 – 38\|24-40\|120	M10	38\|24-40\|120	160	Galvanized
FX-3599	FXC Hammer Head Fastener, M10 x 160 – 38\|24-40\|120	M10	38\|24-40\|120	160	HDG
FX-3600	FXC Hammer Head Fastener, M10 x 180 – 38\|24-40\|120	M10	38\|24-40\|120	180	Galvanized
FX-3601	FXC Hammer Head Fastener, M10 x 180 – 38\|24-40\|120	M10	38\|24-40\|120	180	HDG
FX-3602	FXC Hammer Head Fastener, M12 x 35 – 38\|24-40\|120	M12	38\|24-40\|120	35	Galvanized
FX-3603	FXC Hammer Head Fastener, M12 x 35 – 38\|24-40\|120	M12	38\|24-40\|120	35	HDG
FX-3604	FXC Hammer head fasteners, M12 x 55 – 38\|24-40\|120	M12	38\|24-40\|120	55	Galvanized
FX-3605	FXC Hammer head fasteners, M12 x 55 – 38\|24-40\|120	M12	38\|24-40\|120	55	HDG
FX-3606	FXC Hammer head fasteners, 12 x 80 – 38\|24-40\|120	M12	38\|24-40\|120	80	Galvanized
FX-3607	FXC Hammer head fasteners, 12 x 80 – 38\|24-40\|120	M12	38\|24-40\|120	80	HDG
FX-3608	FXC Hammer head fasteners, M12 x 100 – 38\|24-40\|120	M12	38\|24-40\|120	100	Galvanized
FX-3609	FXC Hammer head fasteners, M12 x 100 – 38\|24-40\|120	M12	38\|24-40\|120	100	HDG
FX-3610	FXC Hammer head fasteners, M12 x 120 – 38\|24-40\|120	M12	38\|24-40\|120	120	Galvanized
FX-3611	FXC Hammer head fasteners, M12 x 120 – 38\|24-40\|120	M12	38\|24-40\|120	120	HDG
FX-3612	FXC Hammer head fasteners, M12 x 140 – 38\|24-40\|120	M12	38\|24-40\|120	140	Galvanized
FX-3613	FXC Hammer head fasteners, M12 x 140 – 38\|24-40\|120	M12	38\|24-40\|120	140	HDG
FX-3614	FXC Hammer head fasteners, M12 x 160 – 38\|24-40\|120	M12	38\|24-40\|120	160	Galvanized
FX-3615	FXC Hammer head fasteners, M12 x 160 – 38\|24-40\|120	M12	38\|24-40\|120	160	HDG
