Brackets

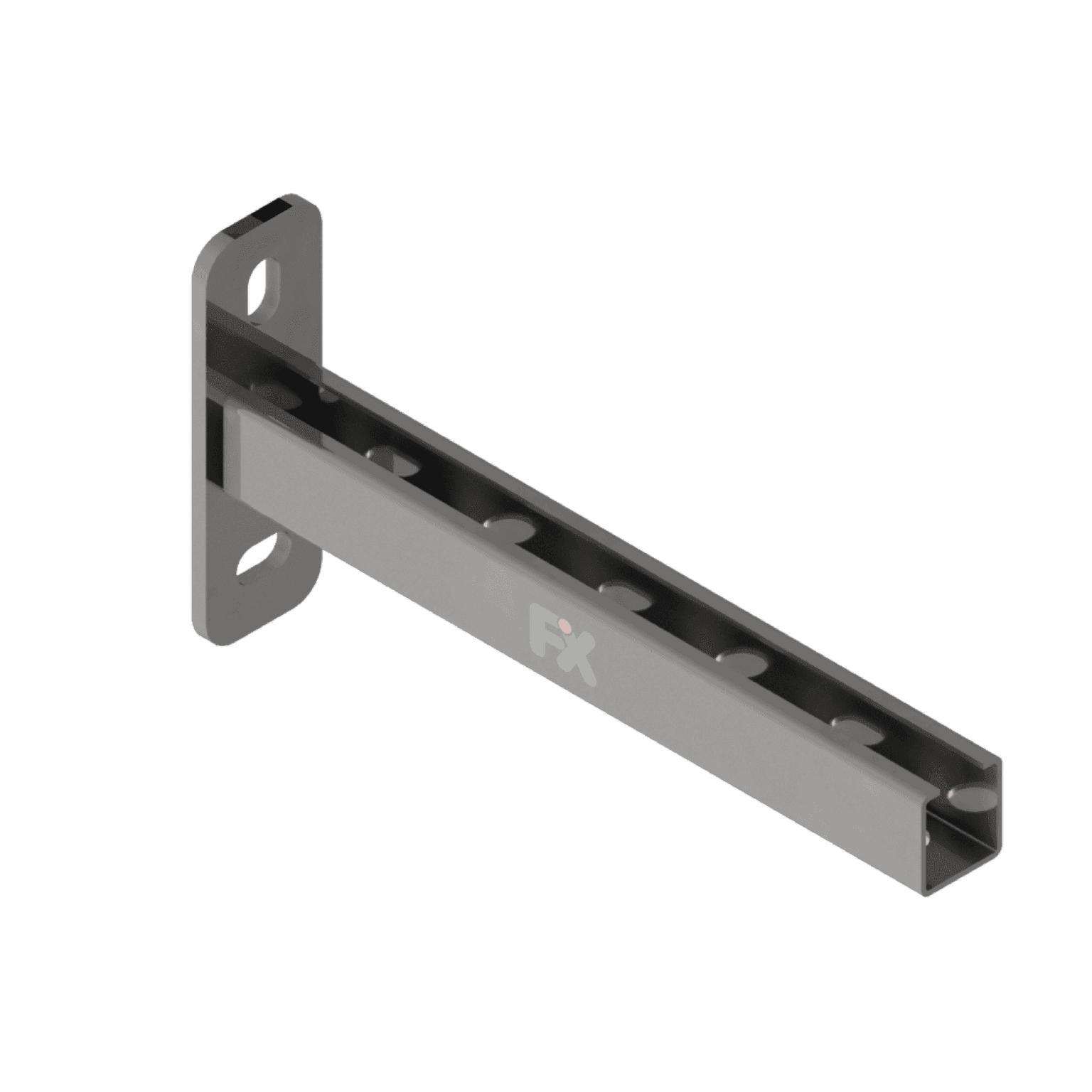

FXC Cantilever Bracket
Pre Fabricated Cantilever Bracket
- Finish
- Galvanized, HDG
- Length
- 160 – 1040
- Variants
- 42
Application
- Fastening light to medium-duty ventilation ducts,plumbing & firefighting pipes and cable trays as a cantilever support structure
- Supporting structures for suspended services
- Suitable for Trench and Tunnel application
Features & benefits
Easy to install with less components
Available in variable lengths (Upto 0.6 m) for supporting different services installations
Ensures secured connections with the FXC Rail nut
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
42 of 42
| Article no. | Description | Profile | Length (mm) | Surface Finish | RFQ |
|---|---|---|---|---|---|
| FX-1660 | FXC Cantilever Bracket 27|18|1.25, 200 mm | 27|18|1.25 | 200 | Galvanized | |
| FX-1661 | FXC Cantilever Bracket 27|18|1.25, 200 mm | 27|18|1.25 | 200 | HDG | |
| FX-1662 | FXC Cantilever Bracket 27|18|1.25, 300 mm | 27|18|1.25 | 300 | Galvanized | |
| FX-1663 | FXC Cantilever Bracket 27|18|1.25, 300 mm | 27|18|1.25 | 300 | HDG | |
| FX-1664 | FXC Cantilever Bracket 27|18|1.25, 500 mm | 27|18|1.25 | 500 | Galvanized | |
| FX-1665 | FXC Cantilever Bracket 27|18|1.25, 500 mm | 27|18|1.25 | 500 | HDG | |
| FX-1666 | FXC Cantilever Bracket 28|30|1.75, 240 mm | 28|30|1.75 | 240 | Galvanized | |
| FX-1667 | FXC Cantilever Bracket 28|30|1.75, 240 mm | 28|30|1.75 | 240 | HDG | |
| FX-1668 | FXC Cantilever Bracket 28|30|1.75, 400 mm | 28|30|1.75 | 400 | Galvanized | |
| FX-1669 | FXC Cantilever Bracket 28|30|1.75, 400 mm | 28|30|1.75 | 400 | HDG | |
| FX-1670 | FXC Cantilever Bracket 38|40|2.00, 160 mm | 38|40|2.00 | 160 | Galvanized | |
| FX-1671 | FXC Cantilever Bracket 38|40|2.00, 160 mm | 38|40|2.00 | 160 | HDG | |
| FX-1672 | FXC Cantilever Bracket 38|40|2.00, 240 mm | 38|40|2.00 | 240 | Galvanized | |
| FX-1673 | FXC Cantilever Bracket 38|40|2.00, 240 mm | 38|40|2.00 | 240 | HDG | |
| FX-1674 | FXC Cantilever Bracket 38|40|2.00, 320 mm | 38|40|2.00 | 320 | Galvanized | |
| FX-1675 | FXC Cantilever Bracket 38|40|2.00, 320 mm | 38|40|2.00 | 320 | HDG | |
| FX-1676 | FXC Cantilever Bracket 38|40|2.00, 400 mm | 38|40|2.00 | 400 | Galvanized | |
| FX-1677 | FXC Cantilever Bracket 38|40|2.00, 400 mm | 38|40|2.00 | 400 | HDG | |
| FX-1678 | FXC Cantilever Bracket 38|40|2.00, 480 mm | 38|40|2.00 | 480 | Galvanized | |
| FX-1679 | FXC Cantilever Bracket 38|40|2.00, 480 mm | 38|40|2.00 | 480 | HDG | |
| FX-1680 | FXC Cantilever Bracket 38|40|2.00, 560 mm | 38|40|2.00 | 560 | Galvanized | |
| FX-1681 | FXC Cantilever Bracket 38|40|2.00, 560 mm | 38|40|2.00 | 560 | HDG | |
| FX-1682 | FXC Cantilever Bracket 38|40|2.00, 640 mm | 38|40|2.00 | 640 | Galvanized | |
| FX-1683 | FXC Cantilever Bracket 38|40|2.00, 640 mm | 38|40|2.00 | 640 | HDG | |
| FX-1684 | FXC Cantilever Bracket 38|40|2.00, 720 mm | 38|40|2.00 | 720 | Galvanized | |
| FX-1685 | FXC Cantilever Bracket 38|40|2.00, 720 mm | 38|40|2.00 | 720 | HDG | |
| FX-1686 | FXC Cantilever Bracket 38|40|2.00, 800 mm | 38|40|2.00 | 800 | Galvanized | |
| FX-1687 | FXC Cantilever Bracket 38|40|2.00, 800 mm | 38|40|2.00 | 800 | HDG | |
| FX-1688 | FXC Cantilever Bracket 38|40|2.00, 1040 mm | 38|40|2.00 | 1040 | Galvanized | |
| FX-1689 | FXC Cantilever Bracket 38|40|2.00, 1040 mm | 38|40|2.00 | 1040 | HDG | |
| FX-1690 | FXC Cantilever Bracket 40|60|3.00, 560 mm | 40|60|3.00 | 560 | Galvanized | |
| FX-1691 | FXC Cantilever Bracket 40|60|3.00, 560 mm | 40|60|3.00 | 560 | HDG | |
| FX-1692 | FXC Cantilever Bracket 40|60|3.00, 640 mm | 40|60|3.00 | 640 | Galvanized | |
| FX-1693 | FXC Cantilever Bracket 40|60|3.00, 640 mm | 40|60|3.00 | 640 | HDG | |
| FX-1694 | FXC Cantilever Bracket 40|60|3.00, 800 mm | 40|60|3.00 | 800 | Galvanized | |
| FX-1695 | FXC Cantilever Bracket 40|60|3.00, 800 mm | 40|60|3.00 | 800 | HDG | |
| FX-1696 | FXC Cantilever Bracket 40|60|3.00, 1040 mm | 40|60|3.00 | 1040 | Galvanized | |
| FX-1697 | FXC Cantilever Bracket 40|60|3.00, 1040 mm | 40|60|3.00 | 1040 | HDG | |
| FX-1698 | FXC Cantilever Bracket 38|80|2.00, 400 mm | 38|80|2.00 | 400 | Galvanized | |
| FX-1699 | FXC Cantilever Bracket 38|80|2.00, 400 mm | 38|80|2.00 | 400 | HDG | |
| FX-1700 | FXC Cantilever Bracket 38|80|2.00, 800 mm | 38|80|2.00 | 800 | Galvanized | |
| FX-1701 | FXC Cantilever Bracket 38|80|2.00, 800 mm | 38|80|2.00 | 800 | HDG |
