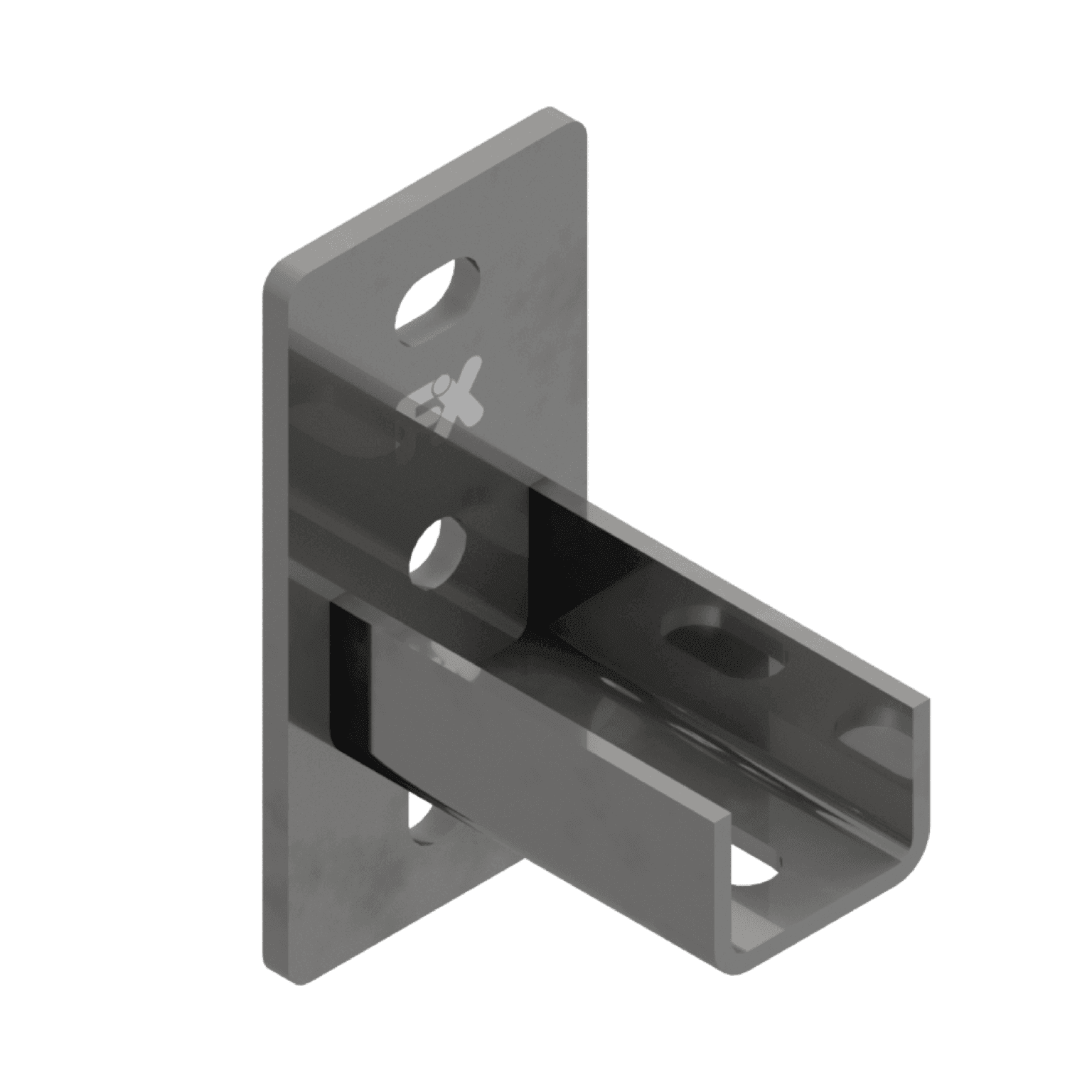

FXC Saddle Flange
Supporting flange for FXC Mounting Channels
- Finish
- Galvanized, HDG
- Variants
- 10
Application
- Structural connection of FXC Mounting Channels with any supporting material
- Allows for individual creation of cantilever arms
Features & benefits
Provides higher torsional and bending rigidity for FXC Mounting Channels
Simple installation by inserting the FXC mounting channel in the saddle
Allows lateral and vertical adjustment of FXC Mounting Channel with reliable fastening
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
10 of 10
| Article no. | Description | Profile | Orientation | Surface Finish | RFQ |
|---|---|---|---|---|---|
| FX-2785 | FXC Saddle Flange – Crosswise – 38|24-40|80 | 38|24-40|80 | Crosswise | Galvanized | |
| FX-2786 | FXC Saddle Flange – Crosswise – 38|24-40|80 | 38|24-40|80 | Crosswise | HDG | |
| FX-2787 | FXC Saddle Flange – Lengthwise – 38|24-40|80 | 38|24-40|80 | Lengthwise | Galvanized | |
| FX-2788 | FXC Saddle Flange – Lengthwise – 38|24-40|80 | 38|24-40|80 | Lengthwise | HDG | |
| FX-2789 | FXC Saddle Flange – Crosswise – 27|18, 28|30 | 27|18, 28|30 | Crosswise | Galvanized | |
| FX-2790 | FXC Saddle Flange – Crosswise – 27|18, 28|30 | 27|18, 28|30 | Crosswise | HDG | |
| FX-2791 | FXC Saddle Flange – Lengthwise – 27|18, 28|30 | 27|18, 28|30 | Lengthwise | Galvanized | |
| FX-2792 | FXC Saddle Flange – Lengthwise – 27|18, 28|30 | 27|18, 28|30 | Lengthwise | HDG | |
| FX-2795 | FXC Saddle Flange – Lengthwise Heavy – 40|120 | 40|120 | Lengthwise | Galvanized | |
| FX-2796 | FXC Saddle Flange – Lengthwise Heavy – 40|120 | 40|120 | Lengthwise | HDG |
