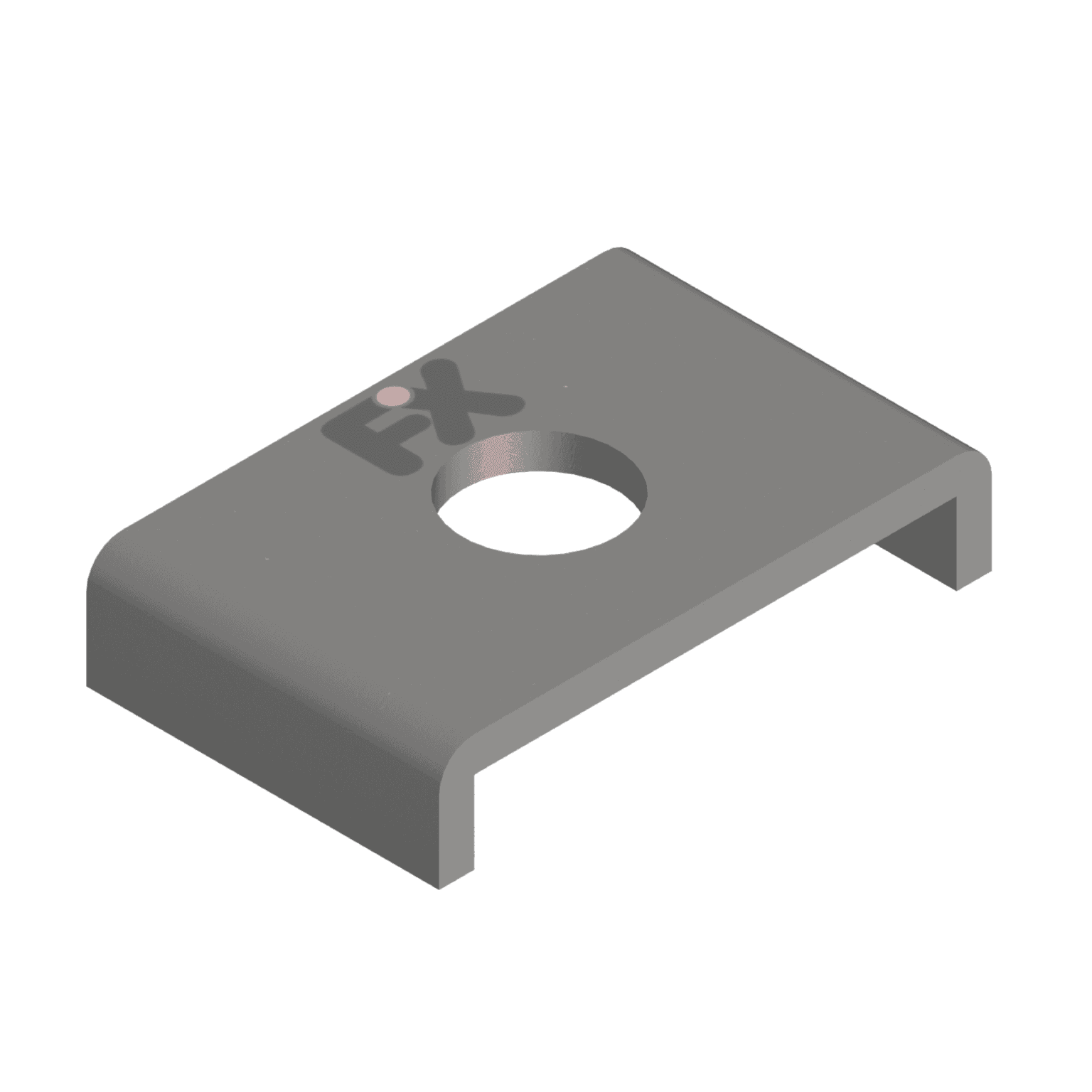

FXC Retaining Clamp
Retaining Clamp for FXC Mounting Channels
- Finish
- Galvanized, HDG
- Thread
- M8, M10, M12, M16
- Variants
- 20
Application
- Fastening metric threaded parts to FXC Mounting Channels
- Ideal for FXC mounting channel assembly for cable tray and piping installations.
Features & benefits
Enables safe load transfer to FXC Mounting Channels
U shaped design prevents expansion of the FXC Mounting Channels profiles
Heavy-duty version available for transferring large forces
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
20 of 20
| Article no. | Description | Thread | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|
| FX-1776 | FXC Retaining Clamp M8 – 27|18, 28|30 | M8 | 27|18, 28|30 | Galvanized | |
| FX-1777 | FXC Retaining Clamp M8 – 27|18, 28|30 | M8 | 27|18, 28|30 | HDG | |
| FX-1778 | FXC Retaining Clamp M10 – 27|18, 28|30 | M10 | 27|18, 28|30 | Galvanized | |
| FX-1779 | FXC Retaining Clamp M10 – 27|18, 28|30 | M10 | 27|18, 28|30 | HDG | |
| FX-1780 | FXC Retaining Clamp M8 – 38|24, 38|40, 38|48, 38|80 | M8 | 38|24, 38|40, 38|48, 38|80 | Galvanized | |
| FX-1781 | FXC Retaining Clamp M8 – 38|24, 38|40, 38|48, 38|80 | M8 | 38|24, 38|40, 38|48, 38|80 | HDG | |
| FX-1782 | FXC Retaining Clamp M10 – 38|24, 38|40, 38|48, 38|80 | M10 | 38|24, 38|40, 38|48, 38|80 | Galvanized | |
| FX-1783 | FXC Retaining Clamp M10 – 38|24, 38|40, 38|48, 38|80 | M10 | 38|24, 38|40, 38|48, 38|80 | HDG | |
| FX-1784 | FXC Retaining Clamp M12 – 38|24, 38|40, 38|48, 38|80 | M12 | 38|24, 38|40, 38|48, 38|80 | Galvanized | |
| FX-1785 | FXC Retaining Clamp M12 – 38|24, 38|40, 38|48, 38|80 | M12 | 38|24, 38|40, 38|48, 38|80 | HDG | |
| FX-1786 | FXC Retaining Clamp M16 – 38|24, 38|40, 38|48, 38|80 | M16 | 38|24, 38|40, 38|48, 38|80 | Galvanized | |
| FX-1787 | FXC Retaining Clamp M16 – 38|24, 38|40, 38|48, 38|80 | M16 | 38|24, 38|40, 38|48, 38|80 | HDG | |
| FX-1788 | FXC Retaining Clamp M8 – 40|60, 40|80, 40|120 | M8 | 40|60, 40|80, 40|120 | Galvanized | |
| FX-1789 | FXC Retaining Clamp M8 – 40|60, 40|80, 40|120 | M8 | 40|60, 40|80, 40|120 | HDG | |
| FX-1790 | FXC Retaining Clamp M10 – 40|60, 40|80, 40|120 | M10 | 40|60, 40|80, 40|120 | Galvanized | |
| FX-1791 | FXC Retaining Clamp M10 – 40|60, 40|80, 40|120 | M10 | 40|60, 40|80, 40|120 | HDG | |
| FX-1792 | FXC Retaining Clamp M12 – 40|60, 40|80, 40|120 | M12 | 40|60, 40|80, 40|120 | Galvanized | |
| FX-1793 | FXC Retaining Clamp M12 – 40|60, 40|80, 40|120 | M12 | 40|60, 40|80, 40|120 | HDG | |
| FX-1794 | FXC Retaining Clamp M16 – 40|60, 40|80, 40|120 | M16 | 40|60, 40|80, 40|120 | Galvanized | |
| FX-1795 | FXC Retaining Clamp M16 – 40|60, 40|80, 40|120 | M16 | 40|60, 40|80, 40|120 | HDG |
