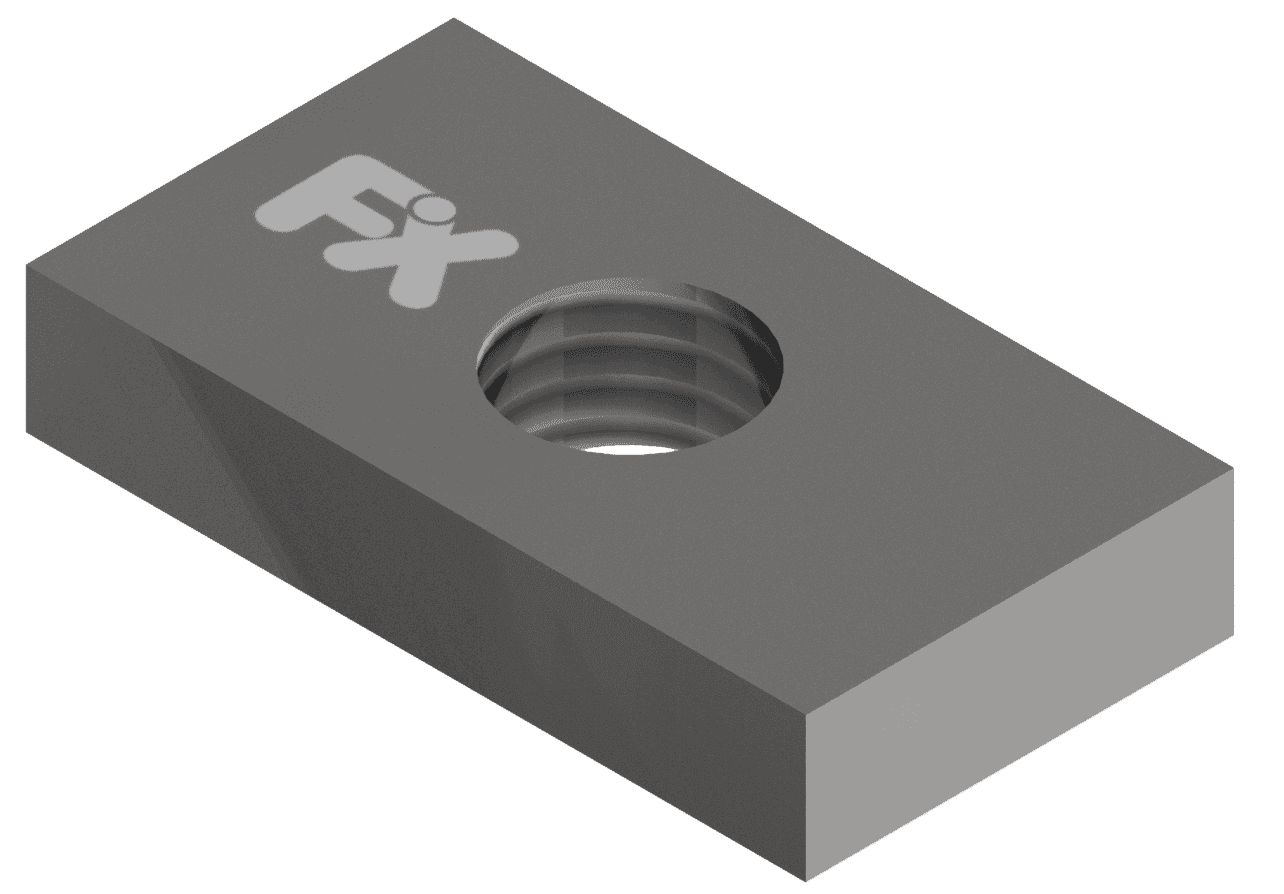

FXC Rail Nut
Connection element for mounting of hex bolt / threaded rod with FXC Mounting Channels
- Finish
- Galvanized, HDG
- Thread
- M6, M8, M10, M12, M16
- Variants
- 14
Application
- Fastening accessories in the FXC Mounting Channels and FXC Cantilever Bracket
- Fastening metric threaded parts to FXC Mounting Channels
Features & benefits
Enables secure fixing and high load bearing capacity with FXC Mounting Channels
Enables safe load transfer to FXC Mounting Channels
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
14 of 14
| Article no. | Description | Thread | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|
| FX-1804 | FXC Rail Nut M6 – 27|18, 28|30 | M6 | 27|18, 28|30 | Galvanized | |
| FX-1805 | FXC Rail Nut M6 – 27|18, 28|30 | M6 | 27|18, 28|30 | HDG | |
| FX-1806 | FXC Rail Nut M8 – 27|18, 28|30 | M8 | 27|18, 28|30 | Galvanized | |
| FX-1807 | FXC Rail Nut M8 – 27|18, 28|30 | M8 | 27|18, 28|30 | HDG | |
| FX-1808 | FXC Rail Nut M6 – 38|24, 38|40, 40|60 | M6 | 38|24, 38|40, 40|60 | Galvanized | |
| FX-1809 | FXC Rail Nut M6 – 38|24, 38|40, 40|60 | M6 | 38|24, 38|40, 40|60 | HDG | |
| FX-1810 | FXC Rail Nut M8 – 38|24, 38|40, 40|60 | M8 | 38|24, 38|40, 40|60 | Galvanized | |
| FX-1811 | FXC Rail Nut M8 – 38|24, 38|40, 40|60 | M8 | 38|24, 38|40, 40|60 | HDG | |
| FX-1812 | FXC Rail Nut M10 – 38|24, 38|40, 40|60 | M10 | 38|24, 38|40, 40|60 | Galvanized | |
| FX-1813 | FXC Rail Nut M10 – 38|24, 38|40, 40|60 | M10 | 38|24, 38|40, 40|60 | HDG | |
| FX-1814 | FXC Rail Nut M12 – 38|24, 38|40, 40|60 | M12 | 38|24, 38|40, 40|60 | Galvanized | |
| FX-1815 | FXC Rail Nut M12 – 38|24, 38|40, 40|60 | M12 | 38|24, 38|40, 40|60 | HDG | |
| FX-1816 | FXC Rail Nut M16 – 38|24, 38|40, 40|60 | M16 | 38|24, 38|40, 40|60 | Galvanized | |
| FX-1817 | FXC Rail Nut M16 – 38|24, 38|40, 40|60 | M16 | 38|24, 38|40, 40|60 | HDG |
