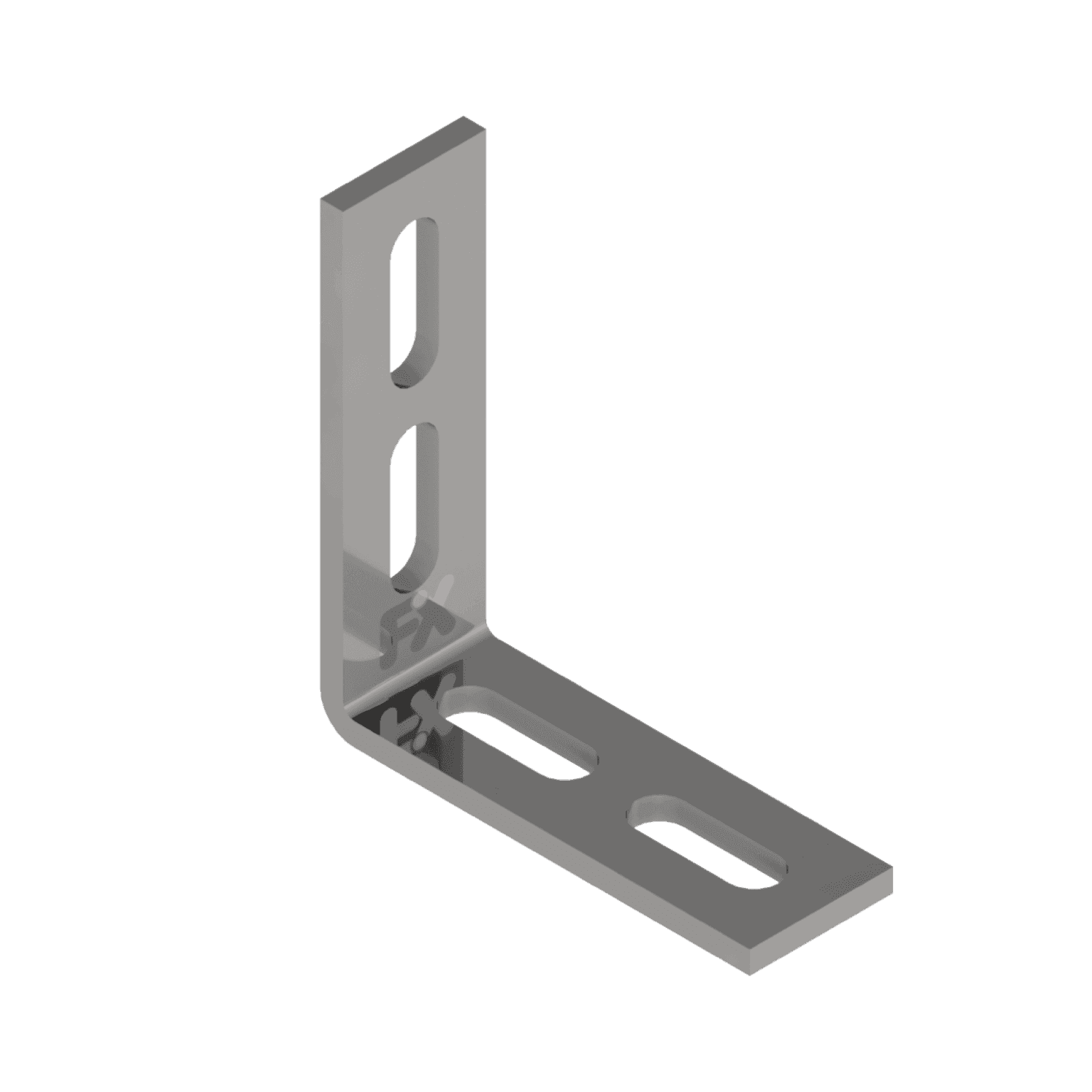

FXC Mounting Angle 90
Connection element for 90° connections of FXC Mounting Channels
- Finish
- Galvanized, HDG
- Variants
- 12
Application
- Building frame structures using FXC Mounting Channels
- Structural connection of FXC Mounting Channels
- Connecting FXC Mounting Channels at right angles
Features & benefits
Quick and efficient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
12 of 12
| Article no. | Description | Angle | Design | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|---|
| FX-1714 | FXC Mounting Angle 90° (2+2) – 27|18, 28|30 | 90° | (2+2) | (2+2) - 27|18, 28|30 | Galvanized | |
| FX-1715 | FXC Mounting Angle 90° (2+2) – 27|18, 28|30 | 90° | (2+2) | (2+2) - 27|18, 28|30 | HDG | |
| FX-1716 | FXC Mounting Angle 90° (2+2) – 38|24, 38|40, 40|60 | 90° | (2+2) | (2+2) - 38|24, 38|40, 40|60 | Galvanized | |
| FX-1717 | FXC Mounting Angle 90° (2+2) – 38|24, 38|40, 40|60 | 90° | (2+2) | (2+2) - 38|24, 38|40, 40|60 | HDG | |
| FX-1718 | FXC Mounting Angle 90° (2+1) – 27|18, 28|30 | 90° | (2+1) | (2+1) - 27|18, 28|30 | Galvanized | |
| FX-1719 | FXC Mounting Angle 90° (2+1) – 27|18, 28|30 | 90° | (2+1) | (2+1) - 27|18, 28|30 | HDG | |
| FX-1720 | FXC Mounting Angle 90° (2+1) – 38|24, 38|40, 40|60 | 90° | (2+1) | (2+1) - 38|24, 38|40, 40|60 | Galvanized | |
| FX-1721 | FXC Mounting Angle 90° (2+1) – 38|24, 38|40, 40|60 | 90° | (2+1) | (2+1) - 38|24, 38|40, 40|60 | HDG | |
| FX-1722 | FXC Mounting Angle 90° (1+1) – 27|18, 28|30 | 90° | (1+1) | (1+1) - 27|18, 28|30 | Galvanized | |
| FX-1723 | FXC Mounting Angle 90° (1+1) – 27|18, 28|30 | 90° | (1+1) | (1+1) - 27|18, 28|30 | HDG | |
| FX-1724 | FXC Mounting Angle 90° (1+1) – 38|24, 38|40, 40|60 | 90° | (1+1) | (1+1) - 38|24, 38|40, 40|60 | Galvanized | |
| FX-1725 | FXC Mounting Angle 90° (1+1) – 38|24, 38|40, 40|60 | 90° | (1+1) | (1+1) - 38|24, 38|40, 40|60 | HDG |
