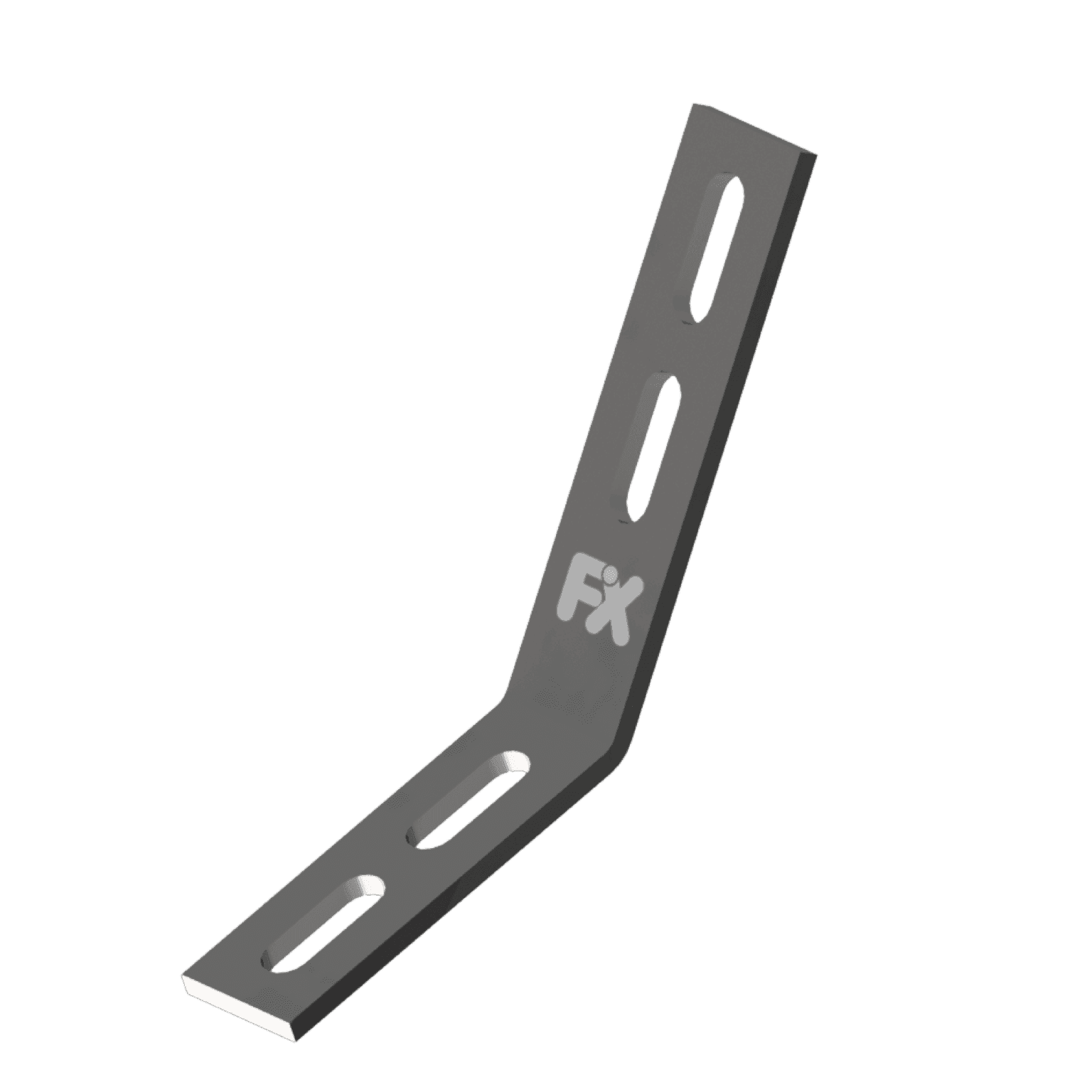

FXC Mounting Angle 135
Connection element for 135° connections of FXC Mounting Channels
- Finish
- Galvanized, HDG
- Variants
- 8
Application
- Building frame structures using FXC Mounting Channels
- Structural connection of FXC Mounting Channels
- Connecting FXC Mounting Channels at 45°/135° angles
Features & benefits
Quick and efficient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
8 of 8
| Article no. | Description | Angle | Design | Profile | Surface Finish | RFQ |
|---|---|---|---|---|---|---|
| FX-1726 | FXC Mounting Angle 135° (2+2) – 27|18, 28|30 | 135° | (2+2) | (2+2) - 27|18, 28|30 | Galvanized | |
| FX-1727 | FXC Mounting Angle 135° (2+2) – 27|18, 28|30 | 135° | (2+2) | (2+2) - 27|18, 28|30 | HDG | |
| FX-1728 | FXC Mounting Angle 135° (2+2) – 38|24, 38|40, 40|60 | 135° | (2+2) | (2+2) - 38|24, 38|40, 40|60 | Galvanized | |
| FX-1729 | FXC Mounting Angle 135° (2+2) – 38|24, 38|40, 40|60 | 135° | (2+2) | (2+2) - 38|24, 38|40, 40|60 | HDG | |
| FX-1730 | FXC Mounting Angle 135° (2+1)-27|18, 28|30 | 135° | (2+1) | (2+1) - 27|18, 28|30 | Galvanized | |
| FX-1731 | FXC Mounting Angle 135° (2+1)-27|18, 28|30 | 135° | (2+1) | (2+1) - 27|18, 28|30 | HDG | |
| FX-1732 | FXC Mounting Angle 135° (2+1)-38|24, 38|40, 40|60 | 135° | (2+1) | (2+1) - 38|24, 38|40, 40|60 | Galvanized | |
| FX-1733 | FXC Mounting Angle 135° (2+1)-38|24, 38|40, 40|60 | 135° | (2+1) | (2+1) - 38|24, 38|40, 40|60 | HDG |
