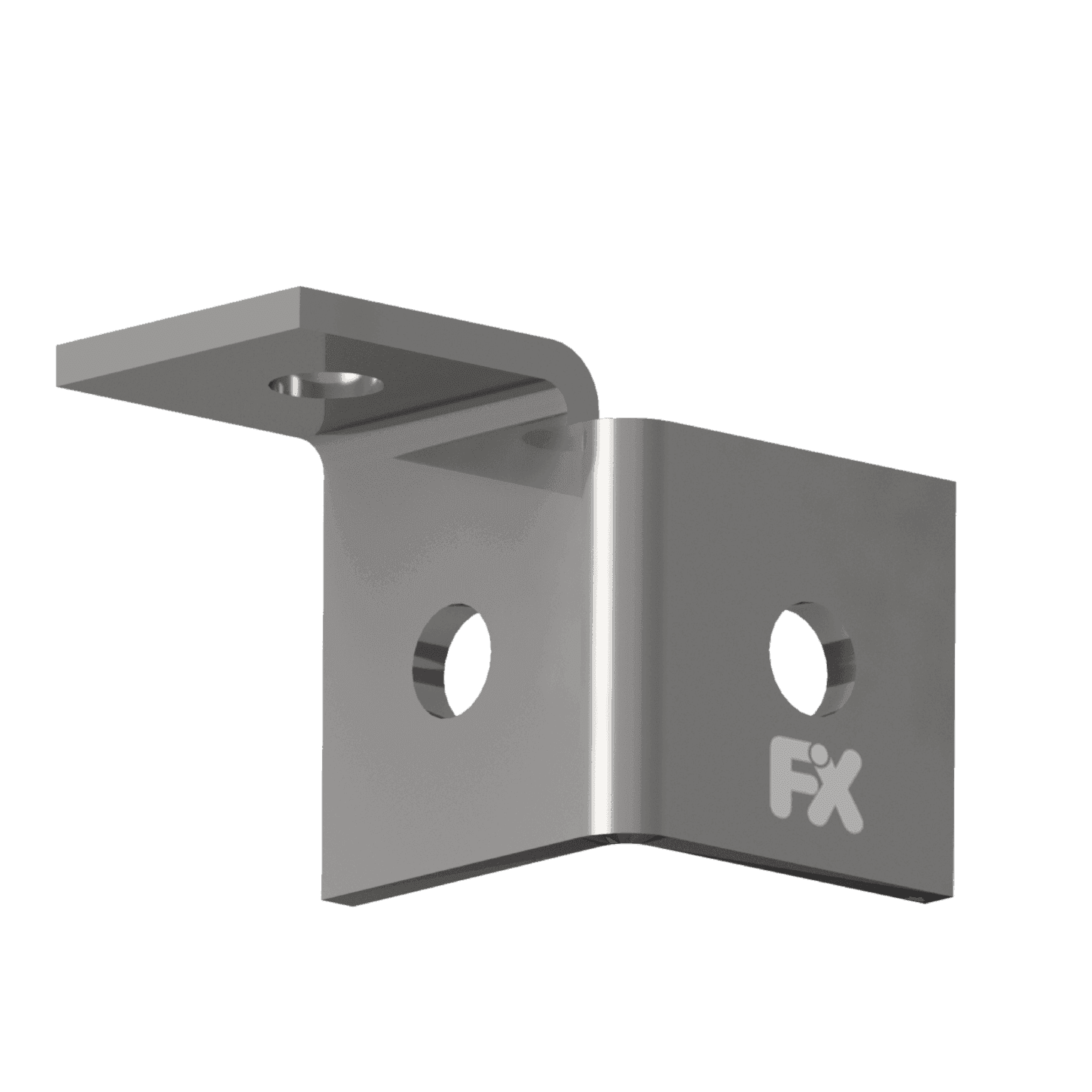

FXC Lateral Angle Connector
Fixing element for lateral connection of FXC Mounting Channels
- Finish
- Galvanized, HDG
- Variants
- 6
Application
- Building 2-Dimensional and 3-Dimensional frame structures using FXC Mounting Channels
- Structural connection of FXC Mounting Channels
Features & benefits
Easy to install with less components
Quick and effcient connections of multiple support structures
Creation of rigid structures without welding
High load bearing capacity owing to special material properties and design
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
6 of 6
| Article no. | Description | Orientation | Surface Finish | RFQ |
|---|---|---|---|---|
| FX-2799 | FX Lateral Angle Connector (1+1) – Double sided | Double sided | Galvanized | |
| FX-2800 | FX Lateral Angle Connector (1+1) – Double sided | Double sided | HDG | |
| FX-2801 | FX Lateral Angle Connector (1+1) – Left | Left | Galvanized | |
| FX-2802 | FX Lateral Angle Connector (1+1) – Left | Left | HDG | |
| FX-2803 | FX Lateral Angle Connector (1+1) – Right | Right | Galvanized | |
| FX-2804 | FX Lateral Angle Connector (1+1) – Right | Right | HDG |
Downloads
Datasheets
