Fasteners

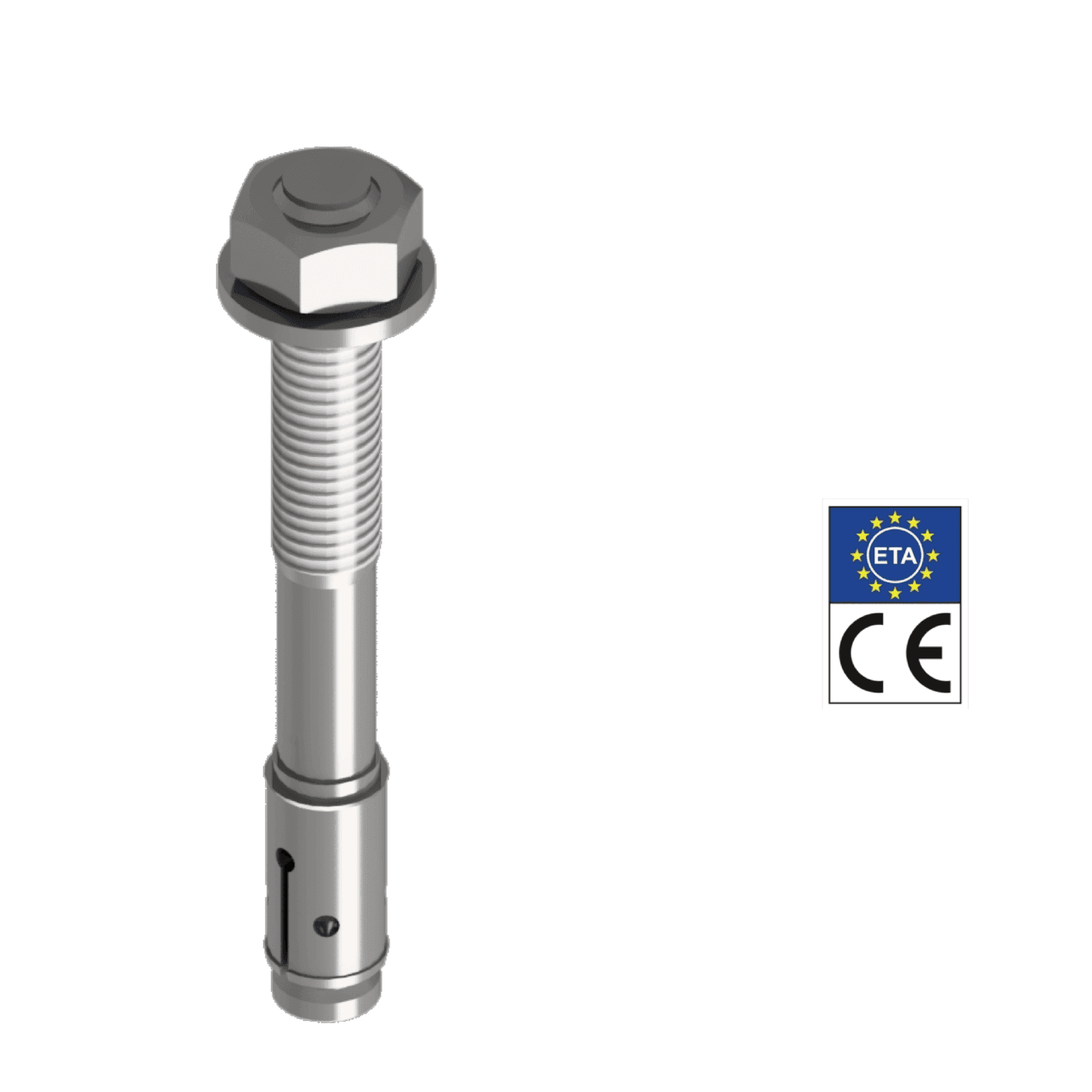

Through Bolt Anchor
Through Bolt Anchor for non cracked concrete
- Thread
- M8, M10, M12, M16
- Length
- 50 – 185
- Variants
- 27
Application
- Anchorage of medium weight pipeline, ventilation ducts & sprinkler systems
Features & benefits
European Technical Approval for non-cracked concrete (Option 7)
Suitable for push through and stand-off installation
Qucik and easy installation
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
27 of 27
| Article no. | Description | Thread | Length (mm) | RFQ |
|---|---|---|---|---|
| FX-3947 | FX Through Bolt ETA Option 7, M8/50/5, vz | M8 | 50 | |
| FX-3948 | FX Through Bolt ETA Option 7, M8/60/10, vz | M8 | 60 | |
| FX-3949 | FX Through Bolt ETA Option 7, M8/80/10, vz | M8 | 80 | |
| FX-3950 | FX Through Bolt ETA Option 7, M8/85/15, vz | M8 | 85 | |
| FX-3951 | FX Through Bolt ETA Option 7, M8/95/25, vz | M8 | 95 | |
| FX-3952 | FX Through Bolt ETA Option 7, M8/115/45, vz | M8 | 115 | |
| FX-3953 | FX Through Bolt ETA Option 7, M8/165/95, vz | M8 | 165 | |
| FX-3954 | FX Through Bolt ETA Option 7, M10/60/5, vz | M10 | 60 | |
| FX-3955 | FX Through Bolt ETA Option 7, M10/70/10, vz | M10 | 70 | |
| FX-3956 | FX Through Bolt ETA Option 7, M10/95/15, vz | M10 | 95 | |
| FX-3957 | FX Through Bolt ETA Option 7, M10/110/30, vz | M10 | 110 | |
| FX-3958 | FX Through Bolt ETA Option 7, M10/125/45, vz | M10 | 125 | |
| FX-3959 | FX Through Bolt ETA Option 7, M10/140/60, vz | M10 | 140 | |
| FX-3960 | FX Through Bolt ETA Option 7, M10/160/80, vz | M10 | 160 | |
| FX-3961 | FX Through Bolt ETA Option 7, M10/180/100, vz | M10 | 180 | |
| FX-3962 | FX Through Bolt ETA Option 7, M12/80/5, vz | M12 | 80 | |
| FX-3963 | FX Through bolt ETA Option 7, M12/110/15, vz | M12 | 110 | |
| FX-3964 | FX Through Bolt ETA Option 7, M12/125/30, vz | M12 | 125 | |
| FX-3965 | FX Through Bolt ETA Option 7, M12/145/50, vz | M12 | 145 | |
| FX-3966 | FX Through Bolt ETA Option 7, M12/165/70, vz | M12 | 165 | |
| FX-3967 | FX Through Bolt ETA Option 7, M12/185/90, vz | M12 | 185 | |
| FX-3968 | FX Through Bolt ETA Option 7, M16/90/5, vz | M16 | 90 | |
| FX-3969 | FX Through Bolt ETA Option 7, M16/115/10, vz | M16 | 115 | |
| FX-3970 | FX Through Bolt ETA Option 7, M16/130/15, vz | M16 | 130 | |
| FX-3971 | FX Through Bolt ETA Option 7, M16/145/30, vz | M16 | 145 | |
| FX-3972 | FX Through Bolt ETA Option 7, M16/160/45, vz | M16 | 160 | |
| FX-3973 | FX Through Bolt ETA Option 7, M16/180/65, vz | M16 | 180 |
Downloads
Datasheets
