FXR Mounting Rails
FXR Mounting Rails

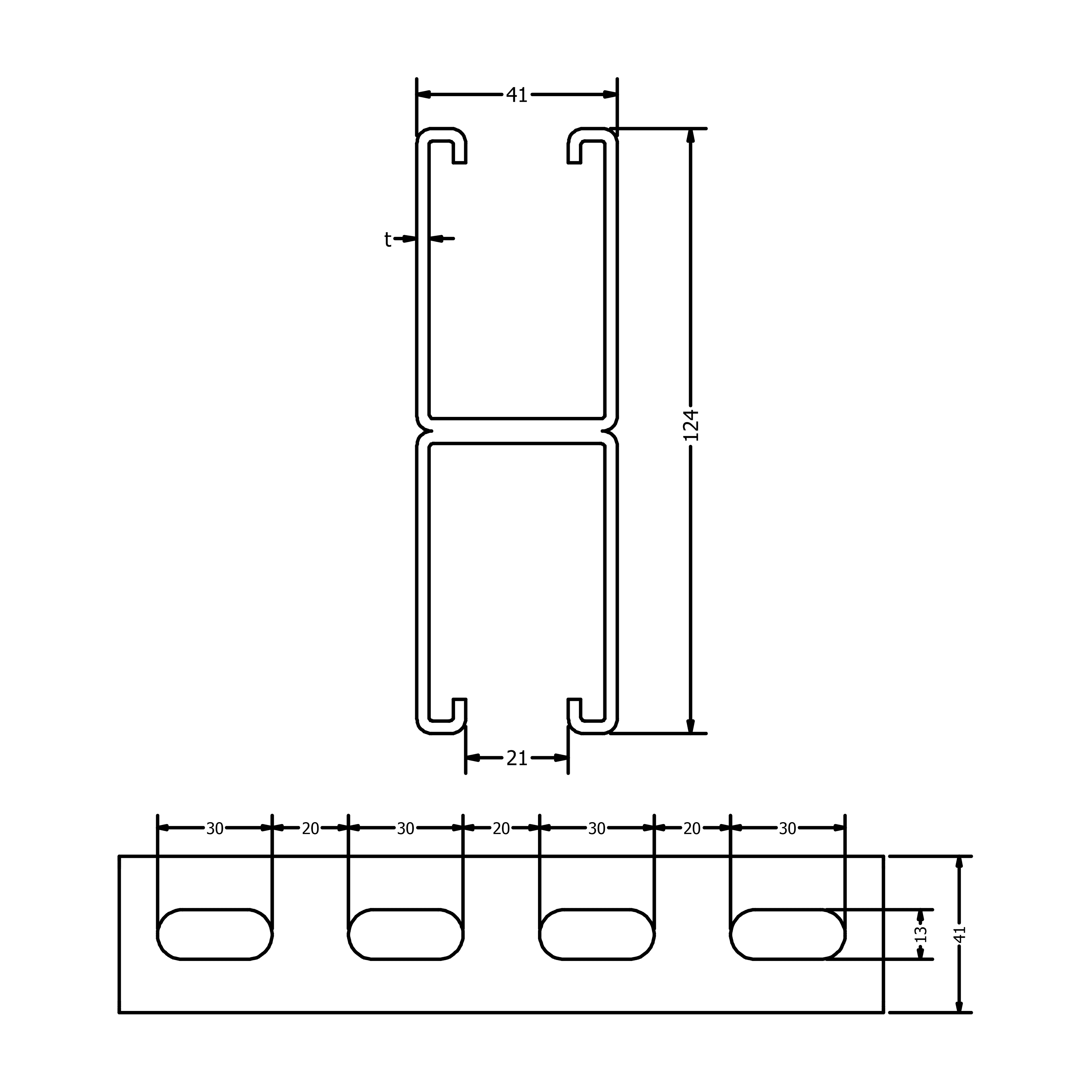

Universal slotted mounting rail profile
- Finish
- Galvanized, HDG
- Length
- 2000 – 6000
- Variants
- 78
Application
- Installation of light to medium-duty ventilation ducts, plumbing & firefighting pipes and cable trays
- Secondary support structure for installation of different services.
Features & benefits
Wide range of mounting options in conjunction with our FXR mounting rail accessories.
Quick and efficient attachment of multiple support structure.
Lateral and vertical adjustment with reliable fastening.
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
78 of 78
| Article no. | Description | Profile | Length (mm) | Surface Finish | RFQ |
|---|---|---|---|---|---|

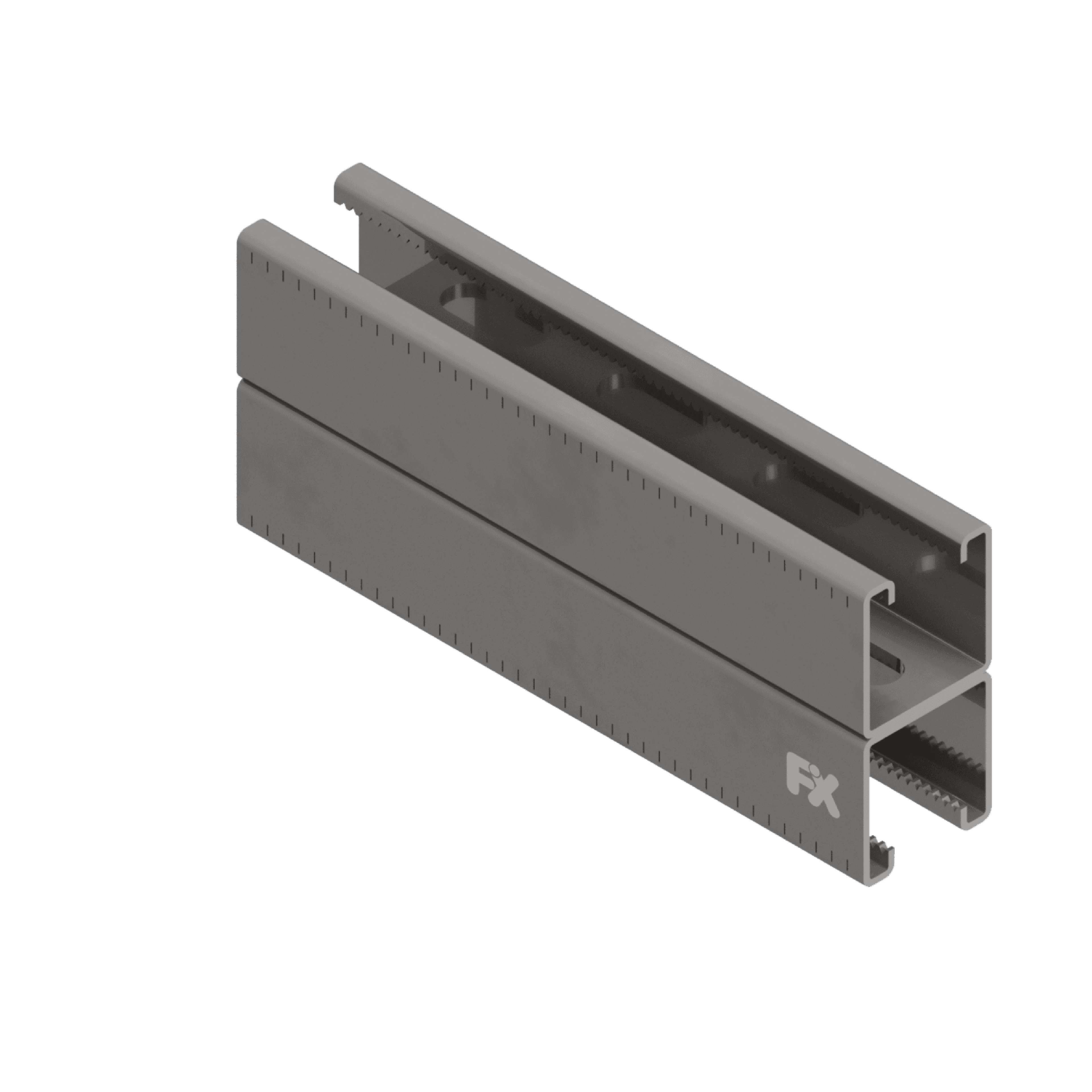

| FX-2132 | FXR Mounting Rail 41|124|2, 2 m | 41|124|2 | 2000 | Galvanized | |
| FX-2133 | FXR Mounting Rail 41|124|2, 2 m | 41|124|2 | 2000 | HDG | |
| FX-2134 | FXR Mounting Rail 41|124|2, 3 m | 41|124|2 | 3000 | Galvanized | |
| FX-2135 | FXR Mounting Rail 41|124|2, 3 m | 41|124|2 | 3000 | HDG | |
| FX-2136 | FXR Mounting Rail 41|124|2, 6 m | 41|124|2 | 6000 | Galvanized | |
| FX-2137 | 602141 | 41|124|2 | 6000 | HDG | |
| FX-2138 | FXR Mounting Rail 41|124|2.5, 2 m | 41|124|2.5 | 2000 | Galvanized | |
| FX-2139 | FXR Mounting Rail 41|124|2.5, 2 m | 41|124|2.5 | 2000 | HDG | |
| FX-2140 | FXR Mounting Rail 41|124|2.5, 3 m | 41|124|2.5 | 3000 | Galvanized | |
| FX-2141 | FXR Mounting Rail 41|124|2.5, 3 m | 41|124|2.5 | 3000 | HDG | |
| FX-2142 | FXR Mounting Rail 41|124|2.5, 6 m | 41|124|2.5 | 6000 | Galvanized | |
| FX-2143 | FXR Mounting Rail 41|124|2.5, 6 m | 41|124|2.5 | 6000 | HDG | |

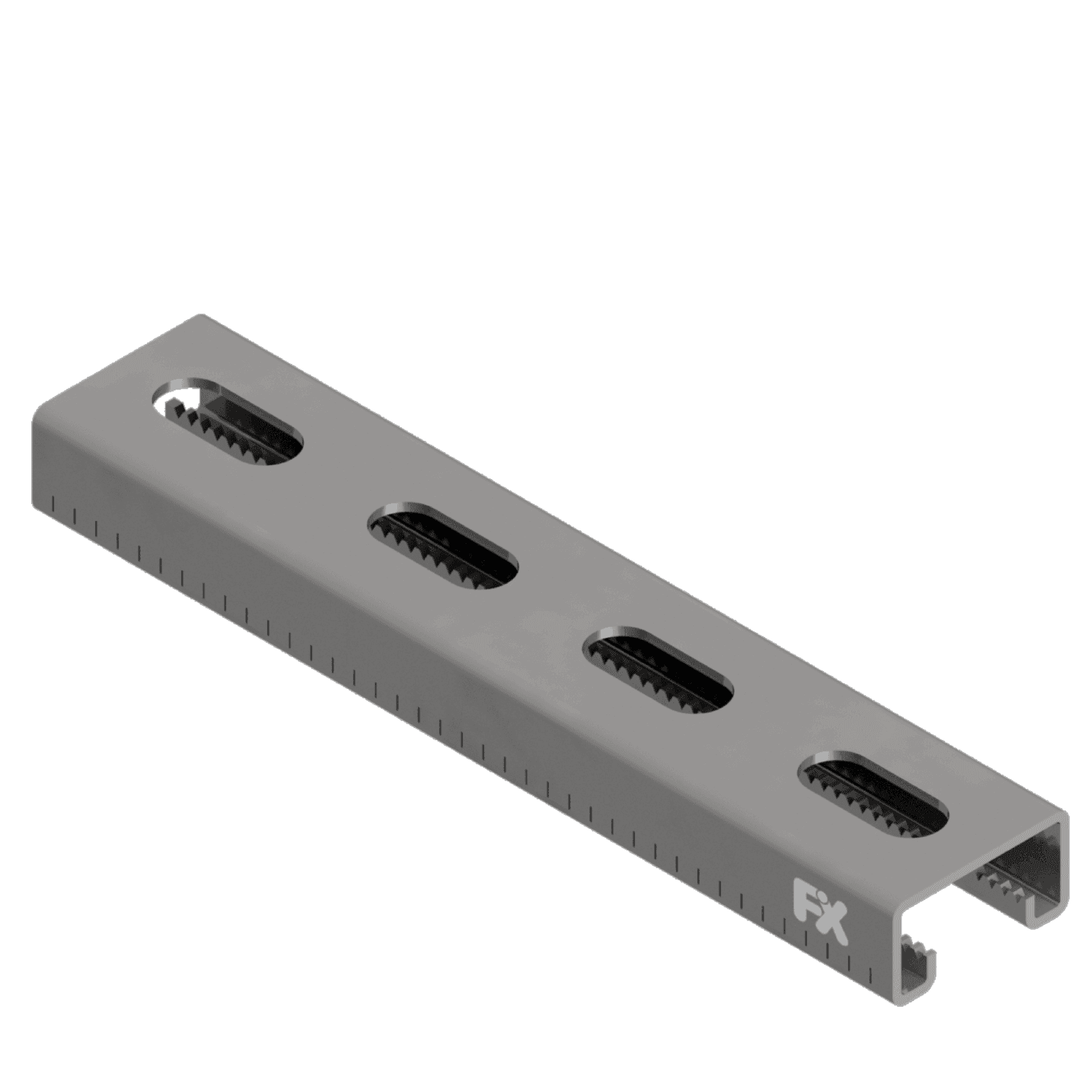

| FX-2144 | FXR Mounting Rail 41|21|1.5, 2 m | 41|21|1.5 | 2000 | Galvanized | |
| FX-2145 | FXR Mounting Rail 41|21|1.5, 2 m | 41|21|1.5 | 2000 | HDG | |
| FX-2146 | FXR Mounting Rail 41|21|1.5, 3 m | 41|21|1.5 | 3000 | Galvanized | |
| FX-2147 | FXR Mounting Rail 41|21|1.5, 3 m | 41|21|1.5 | 3000 | HDG | |
| FX-2148 | FXR Mounting Rail 41|21|1.5, 6 m | 41|21|1.5 | 6000 | Galvanized | |
| FX-2149 | FXR Mounting Rail 41|21|1.5, 6 m | 41|21|1.5 | 6000 | HDG | |
| FX-2150 | FXR Mounting Rail 41|21|2.0, 2 m | 41|21|2.0 | 2000 | Galvanized | |
| FX-2151 | FXR Mounting Rail 41|21|2.0, 2 m | 41|21|2.0 | 2000 | HDG | |
| FX-2152 | FXR Mounting Rail 41|21|2.0, 3 m | 41|21|2.0 | 3000 | Galvanized | |
| FX-2153 | FXR Mounting Rail 41|21|2.0, 3 m | 41|21|2.0 | 3000 | HDG | |
| FX-2154 | FXR Mounting Rail 41|21|2.0, 6 m | 41|21|2.0 | 6000 | Galvanized | |
| FX-2155 | FXR Mounting Rail 41|21|2.0, 6 m | 41|21|2.0 | 6000 | HDG | |
| FX-2156 | FXR Mounting Rail 41|21|2.5, 2 m | 41|21|2.5 | 2000 | Galvanized | |
| FX-2157 | FXR Mounting Rail 41|21|2.5, 2 m | 41|21|2.5 | 2000 | HDG | |
| FX-2158 | FXR Mounting Rail 41|21|2.5, 3 m | 41|21|2.5 | 3000 | Galvanized | |
| FX-2159 | FXR Mounting Rail 41|21|2.5, 3 m | 41|21|2.5 | 3000 | HDG | |
| FX-2160 | FXR Mounting Rail 41|21|2.5, 6 m | 41|21|2.5 | 6000 | Galvanized | |
| FX-2161 | FXR Mounting Rail 41|21|2.5, 6 m | 41|21|2.5 | 6000 | HDG | |

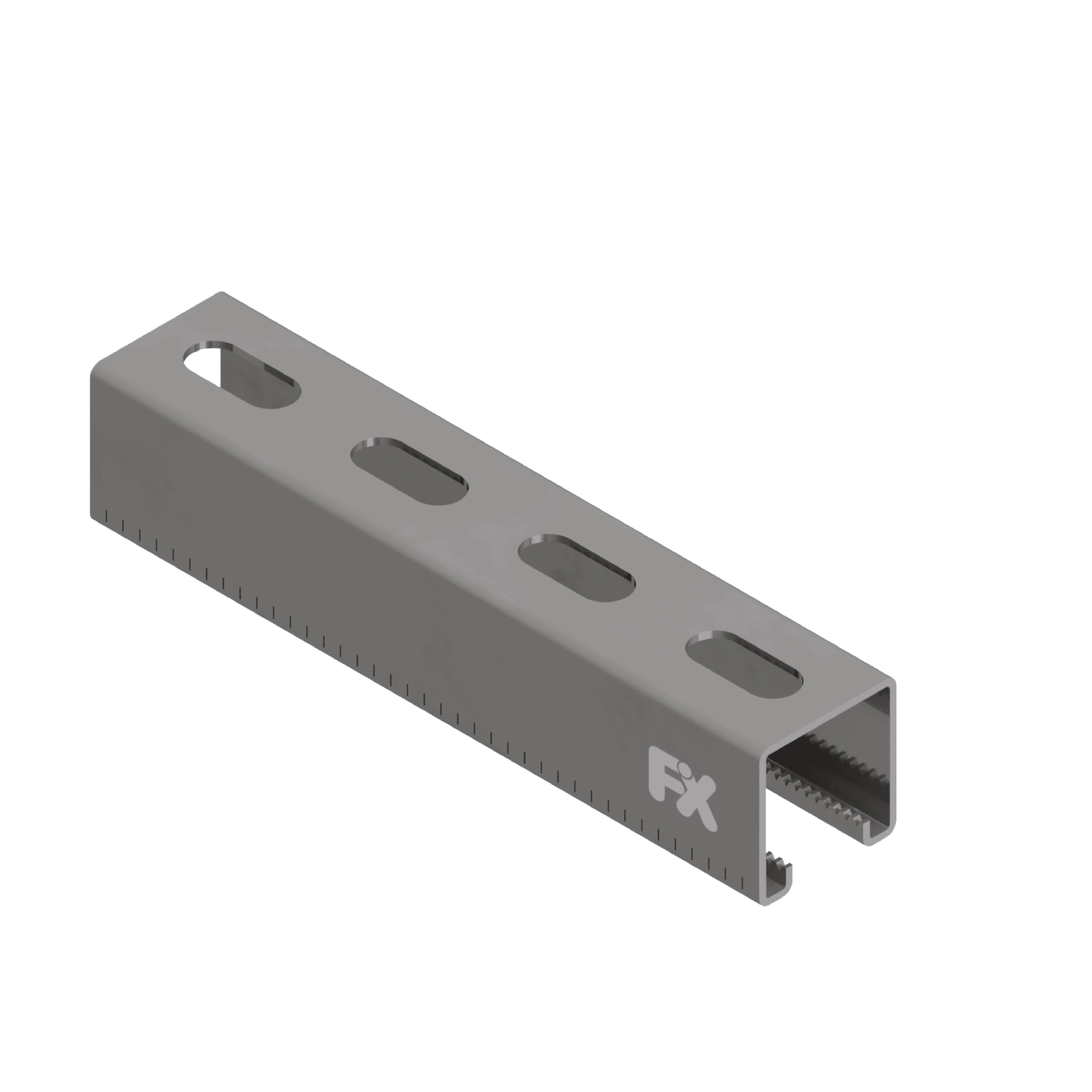

| FX-2162 | FXR Mounting Rail 41|41|1.5, 2 m | 41|41|1.5 | 2000 | Galvanized | |
| FX-2163 | FXR Mounting Rail 41|41|1.5, 2 m | 41|41|1.5 | 2000 | HDG | |
| FX-2164 | FXR Mounting Rail 41|41|1.5, 3 m | 41|41|1.5 | 3000 | Galvanized | |
| FX-2165 | FXR Mounting Rail 41|41|1.5, 3 m | 41|41|1.5 | 3000 | HDG | |
| FX-2166 | FXR Mounting Rail 41|41|1.5, 6 m | 41|41|1.5 | 6000 | Galvanized | |
| FX-2167 | FXR Mounting Rail 41|41|1.5, 6 m | 41|41|1.5 | 6000 | HDG | |
| FX-2168 | FXR Mounting Rail 41|41|2.0, 2 m | 41|41|2.0 | 2000 | Galvanized | |
| FX-2169 | FXR Mounting Rail 41|41|2.0, 2 m | 41|41|2.0 | 2000 | HDG | |
| FX-2170 | FXR Mounting Rail 41|41|2.0, 3 m | 41|41|2.0 | 3000 | Galvanized | |
| FX-2171 | FXR Mounting Rail 41|41|2.0, 3 m | 41|41|2.0 | 3000 | HDG | |
| FX-2172 | FXR Mounting Rail 41|41|2.0, 6 m | 41|41|2.0 | 6000 | Galvanized | |
| FX-2173 | FXR Mounting Rail 41|41|2.0, 6 m | 41|41|2.0 | 6000 | HDG | |
| FX-2174 | FXR Mounting Rail 41|41|2.5, 2 m | 41|41|2.5 | 2000 | Galvanized | |
| FX-2175 | FXR Mounting Rail 41|41|2.5, 2 m | 41|41|2.5 | 2000 | HDG | |
| FX-2176 | FXR Mounting Rail 41|41|2.5, 3 m | 41|41|2.5 | 3000 | Galvanized | |
| FX-2177 | FXR Mounting Rail 41|41|2.5, 3 m | 41|41|2.5 | 3000 | HDG | |
| FX-2178 | FXR Mounting Rail 41|41|2.5, 6 m | 41|41|2.5 | 6000 | Galvanized | |
| FX-2179 | FXR Mounting Rail 41|41|2.5, 6 m | 41|41|2.5 | 6000 | HDG | |

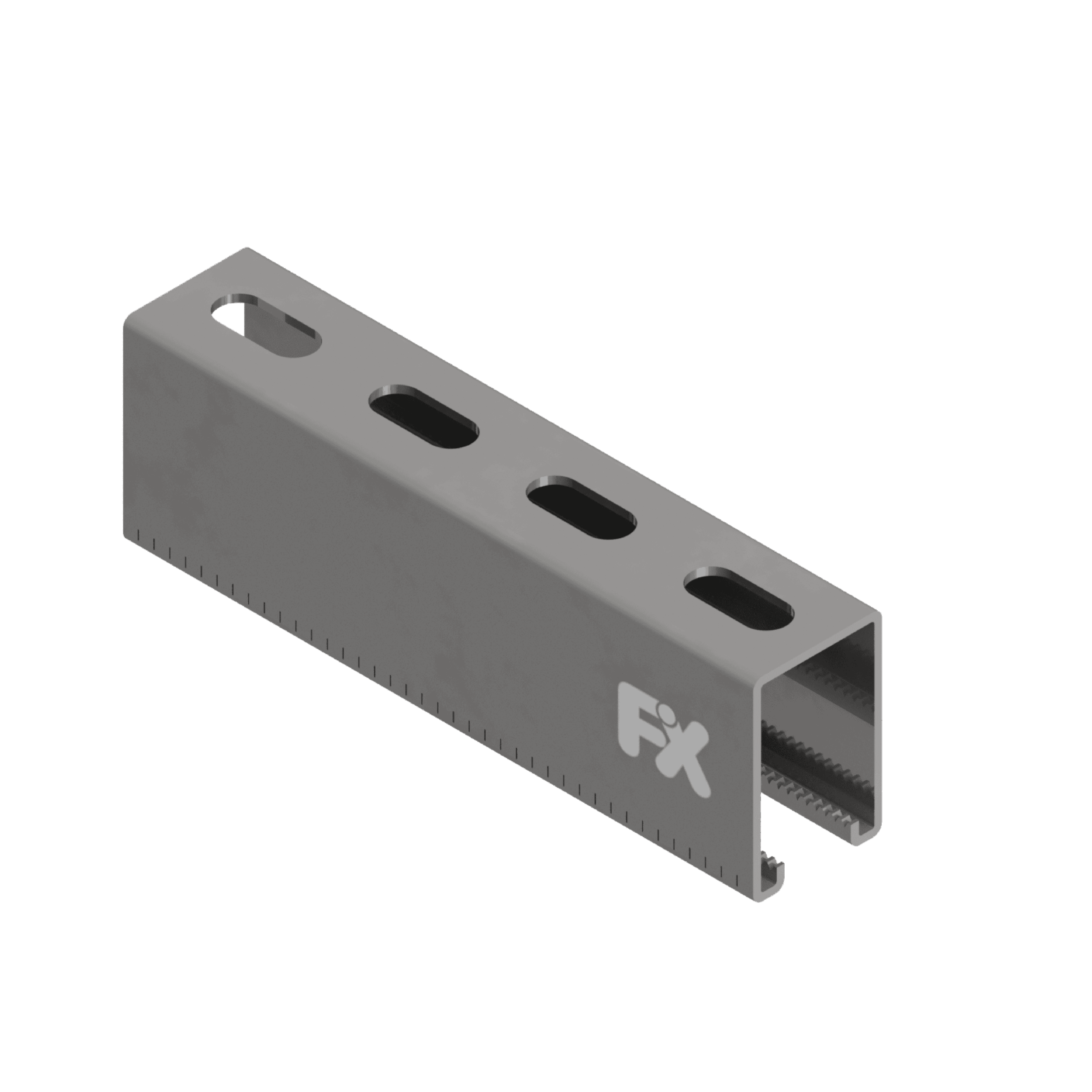

| FX-2180 | FXR Mounting Rail 41|62|2.0, 2 m | 41|62|2.0 | 2000 | Galvanized | |
| FX-2181 | FXR Mounting Rail 41|62|2.0, 2 m | 41|62|2.0 | 2000 | HDG | |
| FX-2182 | FXR Mounting Rail 41|62|2.0, 3 m | 41|62|2.0 | 3000 | Galvanized | |
| FX-2183 | FXR Mounting Rail 41|62|2.0, 3 m | 41|62|2.0 | 3000 | HDG | |
| FX-2184 | FXR Mounting Rail 41|62|2.0, 6 m | 41|62|2.0 | 6000 | Galvanized | |
| FX-2185 | FXR Mounting Rail 41|62|2.0, 6 m | 41|62|2.0 | 6000 | HDG | |
| FX-2186 | FXR Mounting Rail 41|62|2.5, 2 m | 41|62|2.5 | 2000 | Galvanized | |
| FX-2187 | FXR Mounting Rails 41|62|2.5 2000 HDG | 41|62|2.5 | 2000 | HDG | |
| FX-2188 | FXR Mounting Rail 41|62|2.5, 3 m | 41|62|2.5 | 3000 | Galvanized | |
| FX-2189 | FXR Mounting Rail 41|62|2.5, 3 m | 41|62|2.5 | 3000 | HDG | |
| FX-2190 | FXR Mounting Rail 41|62|2.5, 6 m | 41|62|2.5 | 6000 | Galvanized | |
| FX-2191 | FXR Mounting Rail 41|62|2.5, 6 m | 41|62|2.5 | 6000 | HDG | |

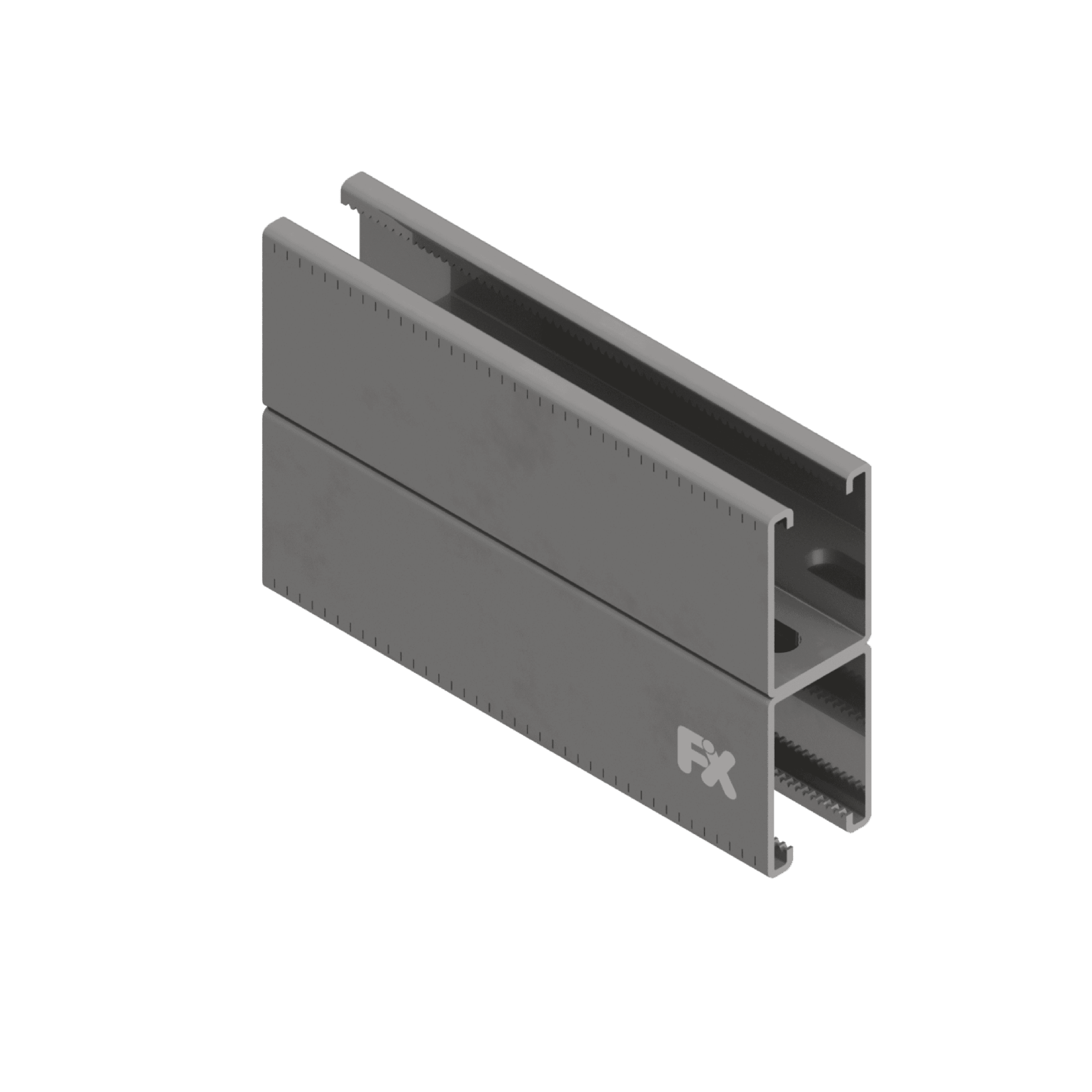

| FX-2192 | FXR Mounting Rail 41|82|2.0, 2 m | 41|82|2.0 | 2000 | Galvanized | |
| FX-2193 | FXR Mounting Rail 41|82|2.0, 2 m | 41|82|2.0 | 2000 | HDG | |
| FX-2194 | FXR Mounting Rail 41|82|2.0, 3 m | 41|82|2.0 | 3000 | Galvanized | |
| FX-2195 | FXR Mounting Rail 41|82|2.0, 3 m | 41|82|2.0 | 3000 | HDG | |
| FX-2196 | FXR Mounting Rail 41|82|2.0, 6 m | 41|82|2.0 | 6000 | Galvanized | |
| FX-2197 | FXR Mounting Rail 41|82|2.0, 6 m | 41|82|2.0 | 6000 | HDG | |
| FX-2198 | FXR Mounting Rail 41|82|2.5, 2 m | 41|82|2.5 | 2000 | Galvanized | |
| FX-2199 | FXR Mounting Rail 41|82|2.5, 2 m | 41|82|2.5 | 2000 | HDG | |
| FX-2200 | FXR Mounting Rail 41|82|2.5, 3 m | 41|82|2.5 | 3000 | Galvanized | |
| FX-2201 | FXR Mounting Rail 41|82|2.5, 3 m | 41|82|2.5 | 3000 | HDG | |
| FX-2202 | FXR Mounting Rail 41|82|2.5, 6 m | 41|82|2.5 | 6000 | Galvanized | |
| FX-2203 | FXR Mounting Rail 41|82|2.5, 6 m | 41|82|2.5 | 6000 | HDG | |

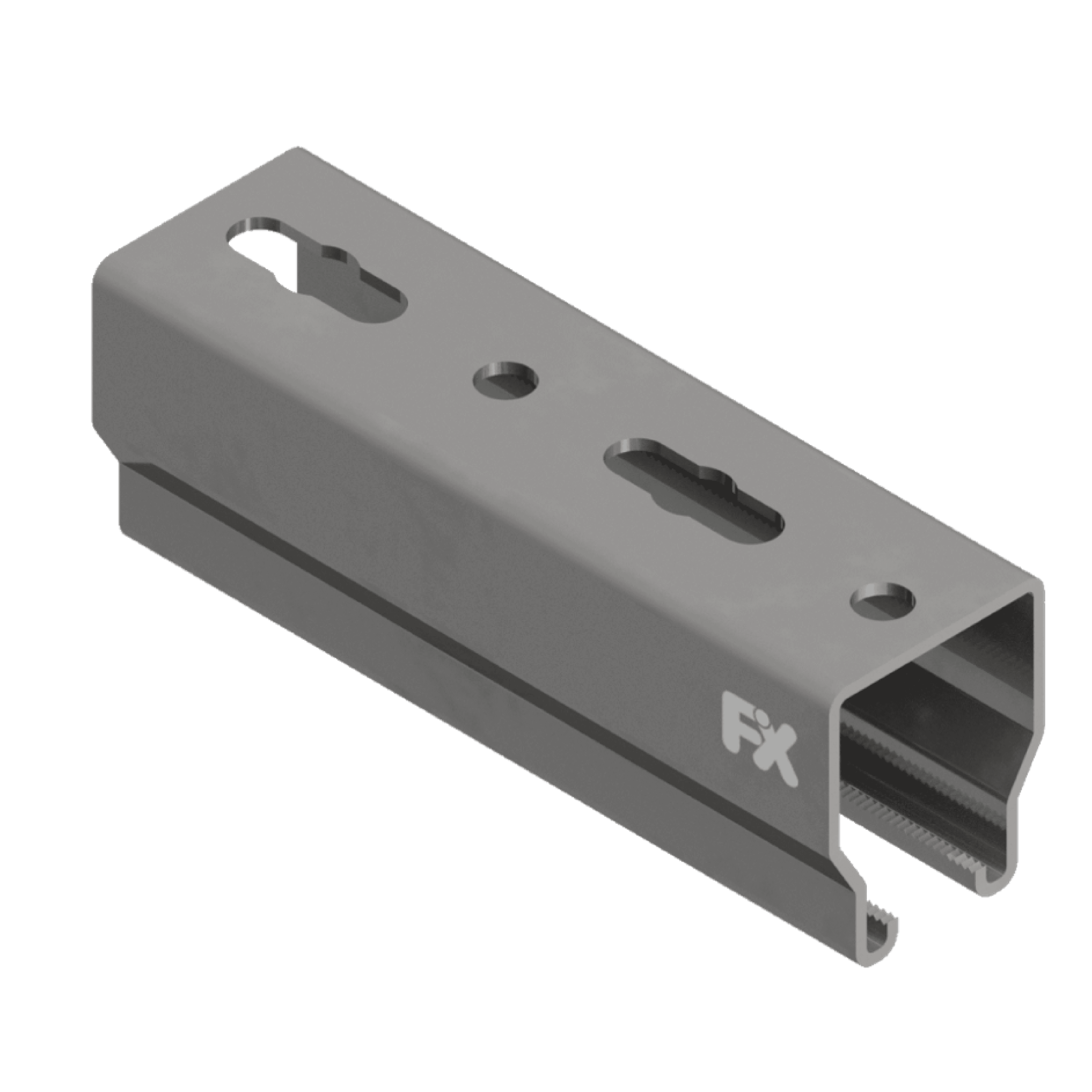

| FX-2204 | FXR Mounting Rail 60|70|3.0, 2 m | 60|70|3.0 | 2000 | Galvanized | |
| FX-2205 | FXR Mounting Rail 60|70|3.0, 2 m | 60|70|3.0 | 2000 | HDG | |
| FX-2206 | FXR Mounting Rail 60|70|3.0, 3 m | 60|70|3.0 | 3000 | Galvanized | |
| FX-2207 | FXR Mounting Rail 60|70|3.0, 3 m | 60|70|3.0 | 3000 | HDG | |
| FX-2208 | FXR Mounting Rail 60|70|3.0, 6 m | 60|70|3.0 | 6000 | Galvanized | |
| FX-2209 | FXR Mounting Rail 60|70|3.0, 6 m | 60|70|3.0 | 6000 | HDG |
Downloads
Datasheets
Need help selecting a support system?
Share your drawings or BOQ. Our engineers respond with a technical recommendation and quotation.
