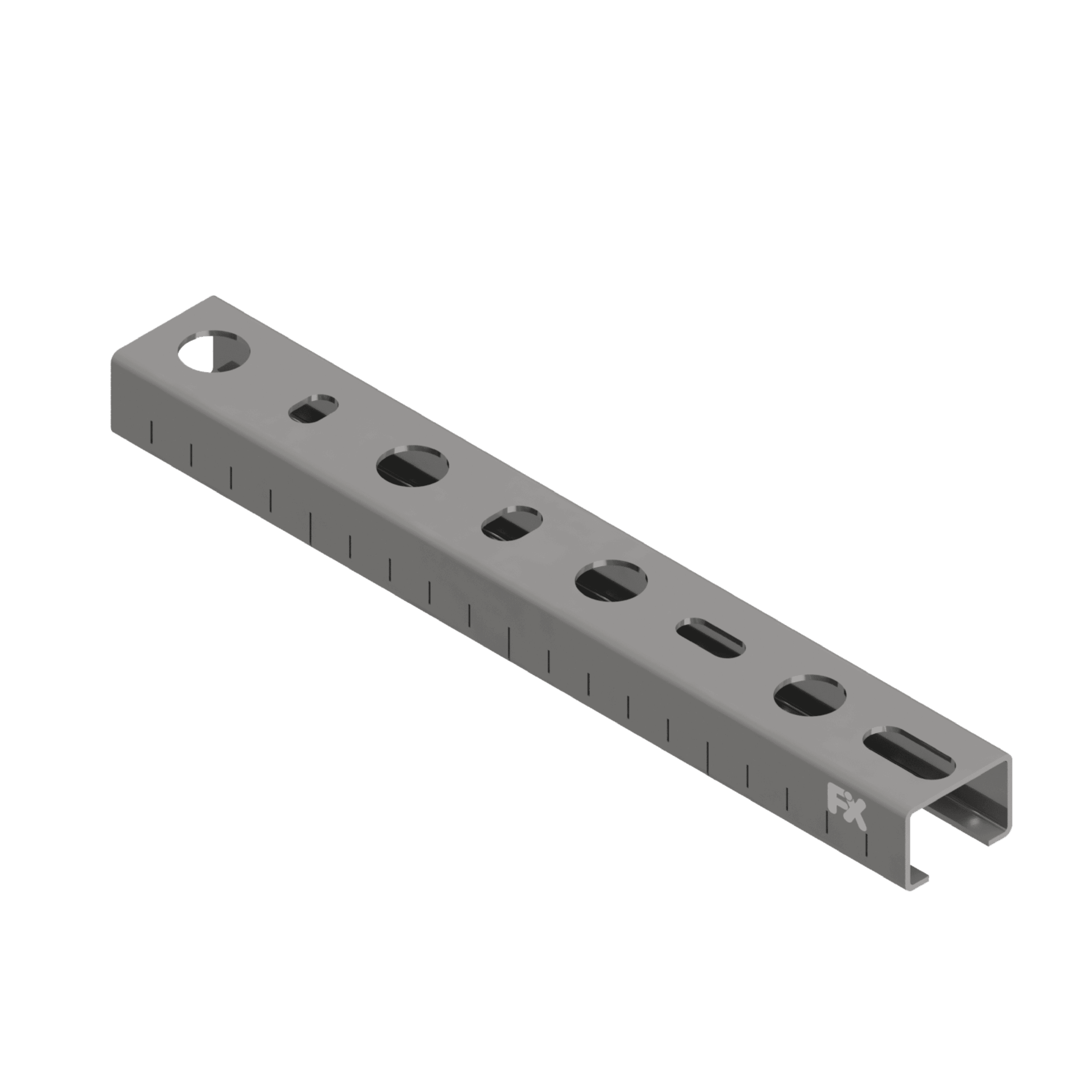

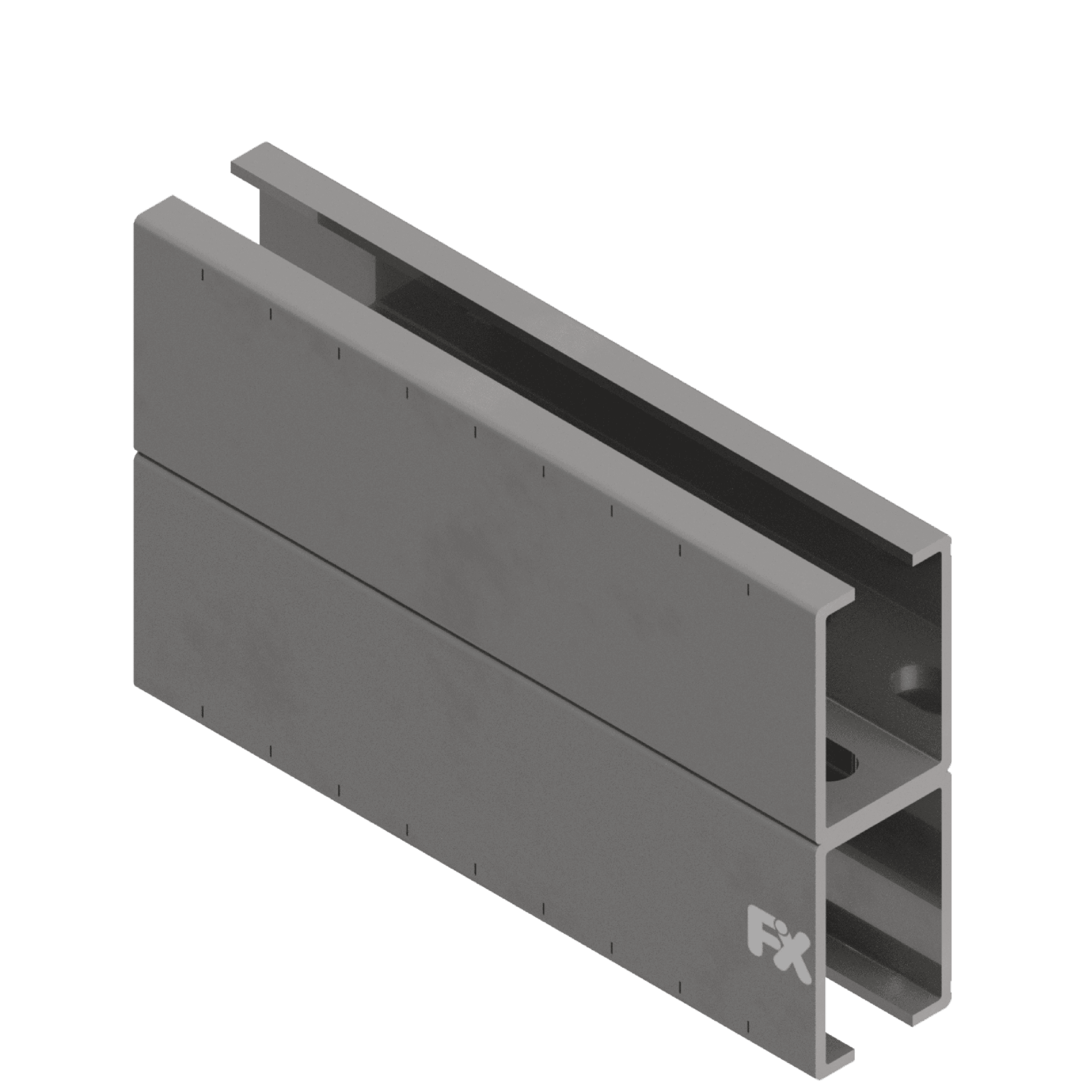

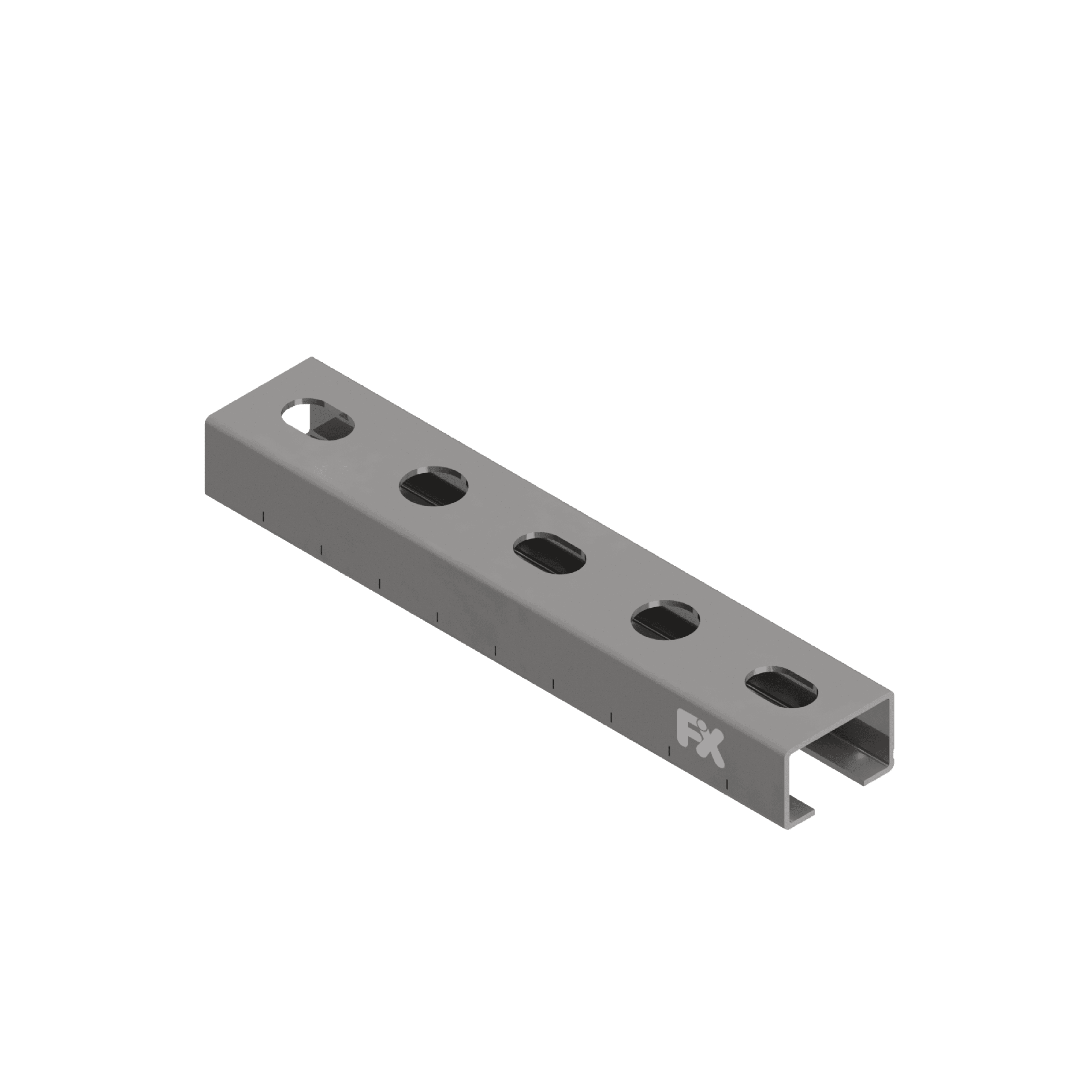

FXC Mounting Channels
FXC Mounting Channels
Universally slotted mounting channel profile
- Finish
- Galvanized, HDG
- Length
- 1000 – 6000
- Variants
- 56
Application
- Installation of light to medium-duty ventilation ducts, plumbing & firefighting pipes and cable trays
- Secondary support structure for installation of di erent services
Features & benefits
Wide range of mounting options in conjunction with our FXC mounting channel accessories
Quick and e cient attachment of multiple support structure.
Lateral and vertical adjustment with reliable fastening.
High load bearing capacity owing to special material properties and design.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
56 of 56
| Article no. | Description | Profile | Length (mm) | Surface Finish | RFQ |
|---|---|---|---|---|---|
| FX-1832 | FXC Mounting Channel 40|80|3, 2 m | 40|80|3 | 2000 | Galvanized | |
| FX-1833 | FXC Mounting Channel 40|80|3, 2 m | 40|80|3 | 2000 | HDG | |
| FX-1834 | FXC Mounting Channel 40|80|3, 3 m | 40|80|3 | 3000 | Galvanized | |
| FX-1835 | FXC Mounting Channel 40|80|3, 3 m | 40|80|3 | 3000 | HDG | |
| FX-1836 | FXC Mounting Channel 40|80|3, 6 m | 40|80|3 | 6000 | Galvanized | |
| FX-1837 | FXC Mounting Channel 40|80|3, 6 m | 40|80|3 | 6000 | HDG | |

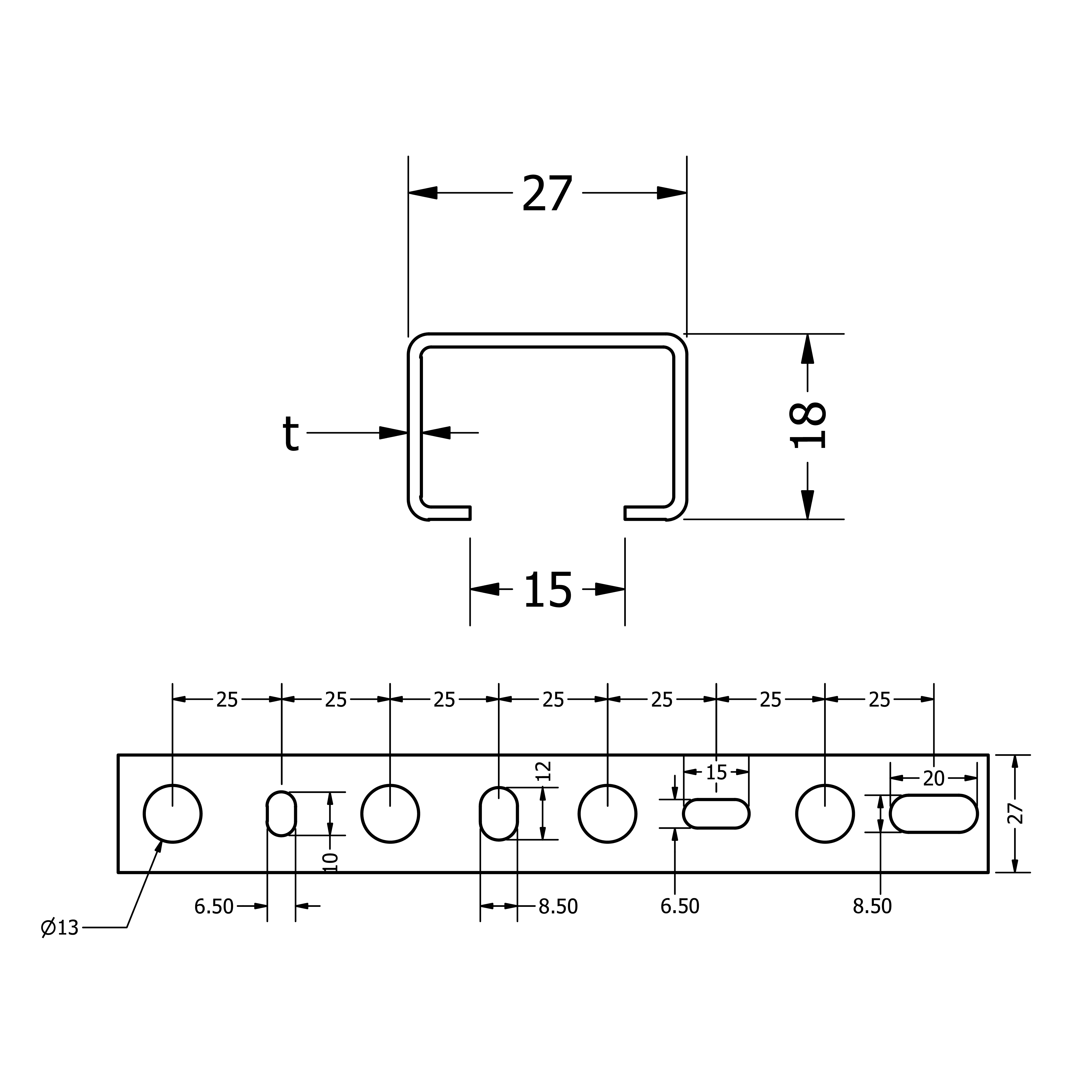

| FX-1838 | FXC Mounting Channel 27|18|1.25, 1 m | 27|18|1.25 | 1000 | Galvanized | |
| FX-1839 | FXC Mounting Channel 27|18|1.25, 1 m | 27|18|1.25 | 1000 | HDG | |
| FX-1840 | FXC Mounting Channel 27|18|1.25, 2 m | 27|18|1.25 | 2000 | Galvanized | |
| FX-1841 | FXC Mounting Channel 27|18|1.25, 2 m | 27|18|1.25 | 2000 | HDG | |
| FX-1842 | FXC Mounting Channel 27|18|1.25, 3 m | 27|18|1.25 | 3000 | Galvanized | |
| FX-1843 | FXC Mounting Channel 27|18|1.25, 3 m | 27|18|1.25 | 3000 | HDG | |
| FX-1844 | FXC Mounting Channel 27|18|1.25, 6 m | 27|18|1.25 | 6000 | Galvanized | |
| FX-1845 | FXC Mounting Channel 27|18|1.25, 6 m | 27|18|1.25 | 6000 | HDG | |
| FX-1848 | FXC Mounting Channel 28|30|1.75, 2 m | 28|30|1.75 | 2000 | Galvanized | |
| FX-1849 | FXC Mounting Channel 28|30|1.75, 2 m | 28|30|1.75 | 2000 | HDG | |
| FX-1850 | FXC Mounting Channel 28|30|1.75, 3 m | 28|30|1.75 | 3000 | Galvanized | |
| FX-1851 | FXC Mounting Channel 28|30|1.75, 3 m | 28|30|1.75 | 3000 | HDG | |
| FX-1852 | FXC Mounting Channel 28|30|1.75, 6 m | 28|30|1.75 | 6000 | Galvanized | |
| FX-1853 | FXC Mounting Channel 28|30|1.75, 6 m | 28|30|1.75 | 6000 | HDG | |
| FX-1856 | FXC Mounting Channel 38|24|1.75, 2 m | 38|24|1.75 | 2000 | Galvanized | |
| FX-1857 | FXC Mounting Channel 38|24|1.75, 2 m | 38|24|1.75 | 2000 | HDG | |
| FX-1858 | FXC Mounting Channel 38|24|1.75, 3 m | 38|24|1.75 | 3000 | Galvanized | |
| FX-1859 | FXC Mounting Channel 38|24|1.75, 3 m | 38|24|1.75 | 3000 | HDG | |
| FX-1860 | FXC Mounting Channel 38|24|1.75, 6 m | 38|24|1.75 | 6000 | Galvanized | |
| FX-1861 | FXC Mounting Channel 38|24|1.75, 6 m | 38|24|1.75 | 6000 | HDG | |
| FX-1864 | FXC Mounting Channel 38|40|2, 2 m | 38|40|2.0 | 2000 | Galvanized | |
| FX-1865 | FXC Mounting Channel 38|40|2, 2 m | 38|40|2.0 | 2000 | HDG | |
| FX-1866 | FXC Mounting Channel 38|40|2, 3 m | 38|40|2.0 | 3000 | Galvanized | |
| FX-1867 | FXC Mounting Channel 38|40|2, 3 m | 38|40|2.0 | 3000 | HDG | |
| FX-1868 | FXC Mounting Channel 38|40|2, 6 m | 38|40|2.0 | 6000 | Galvanized | |
| FX-1869 | FXC Mounting Channel 38|40|2, 6 m | 38|40|2.0 | 6000 | HDG | |
| FX-1872 | FXC Mounting Channel 40|60|3, 2 m | 40|60|3.0 | 2000 | Galvanized | |
| FX-1873 | FXC Mounting Channel 40|60|3, 2 m | 40|60|3.0 | 2000 | HDG | |
| FX-1874 | FXC Mounting Channel 40|60|3, 3 m | 40|60|3.0 | 3000 | Galvanized | |
| FX-1875 | FXC Mounting Channel 40|60|3, 3 m | 40|60|3.0 | 3000 | HDG | |
| FX-1876 | FXC Mounting Channel 40|60|3, 6 m | 40|60|3.0 | 6000 | Galvanized | |
| FX-1877 | FXC Mounting Channel 40|60|3, 6 m | 40|60|3.0 | 6000 | HDG | |
| FX-1880 | FXC Mounting Channel 38|48|1.75, 2 m | 38|48|1.75 | 2000 | Galvanized | |
| FX-1881 | FXC Mounting Channel 38|48|1.75, 2 m | 38|48|1.75 | 2000 | HDG | |
| FX-1882 | FXC Mounting Channel 38|48|1.75, 3 m | 38|48|1.75 | 3000 | Galvanized | |
| FX-1883 | FXC Mounting Channel 38|48|1.75, 3 m | 38|48|1.75 | 3000 | HDG | |
| FX-1884 | FXC Mounting Channel 38|48|1.75, 6 m | 38|48|1.75 | 6000 | Galvanized | |
| FX-1885 | FXC Mounting Channel 38|48|1.75, 6 m | 38|48|1.75 | 6000 | HDG | |
| FX-1888 | FXC Mounting Channel 38|80|2, 2 m | 38|80|2.0 | 2000 | Galvanized | |
| FX-1889 | FXC Mounting Channel 38|80|2, 2 m | 38|80|2.0 | 2000 | HDG | |
| FX-1890 | FXC Mounting Channel 38|80|2, 3 m | 38|80|2.0 | 3000 | Galvanized | |
| FX-1891 | FXC Mounting Channel 38|80|2, 3 m | 38|80|2.0 | 3000 | HDG | |
| FX-1892 | FXC Mounting Channel 38|80|2, 6 m | 38|80|2.0 | 6000 | Galvanized | |
| FX-1893 | FXC Mounting Channel 38|80|2, 6 m | 38|80|2.0 | 6000 | HDG | |
| FX-1896 | FXC Mounting Channel 40|120|3, 2 m | 40|120|3.0 | 2000 | Galvanized | |
| FX-1897 | FXC Mounting Channel 40|120|3, 2 m | 40|120|3.0 | 2000 | HDG | |
| FX-1898 | FXC Mounting Channel 40|120|3, 3 m | 40|120|3.0 | 3000 | HDG | |
| FX-1899 | FXC Mounting Channel 40|120|3, 3 m | 40|120|3.0 | 3000 | Galvanized | |
| FX-1900 | FXC Mounting Channel 40|120|3, 6 m | 40|120|3.0 | 6000 | Galvanized | |
| FX-1901 | FXC Mounting Channel 40|120|3, 6 m | 40|120|3.0 | 6000 | HDG |
Downloads
Datasheets
FXC 27 18DATASHEET · FXC-27-18.pdf · 289 KBFXC 27 18DATASHEET · FXC-27-18.pdf · 135 KBFXC 28 30DATASHEET · FXC-28-30.pdf · 276 KBFXC 28 30DATASHEET · FXC-28-30.pdf · 120 KBFXC 38 24DATASHEET · FXC-38-24.pdf · 275 KBFXC 38 24DATASHEET · FXC-38-24.pdf · 120 KBFXC 38 40DATASHEET · FXC-38-40.pdf · 276 KBFXC 38 40DATASHEET · FXC-38-40.pdf · 122 KBFXC 38 48DATASHEET · FXC-38-48.pdf · 128 KBFXC 38 48DATASHEET · FXC-38-48.pdf · 278 KBFXC 38 80DATASHEET · FXC-38-80.pdf · 131 KBFXC 38 80DATASHEET · FXC-38-80.pdf · 279 KBFXC 40 120DATASHEET · FXC-40-120.pdf · 277 KBFXC 40 120DATASHEET · FXC-40-120.pdf · 128 KBFXC 40 120 Technical dataDATASHEET · FXC-40-120-Technical-data.pdf · 283 KBFXC 40 120 Technical data (2)DATASHEET · FXC-40-120-Technical-data-2.pdf · 142 KBFXC 40 60DATASHEET · FXC-40-60.pdf · 275 KBFXC 40 60DATASHEET · FXC-40-60.pdf · 122 KBFXC 40 80DATASHEET · FXC-40-80.pdf · 276 KBFXC 40 80DATASHEET · FXC-40-80.pdf · 124 KB
Need help selecting a support system?
Share your drawings or BOQ. Our engineers respond with a technical recommendation and quotation.
