Mounting Plate

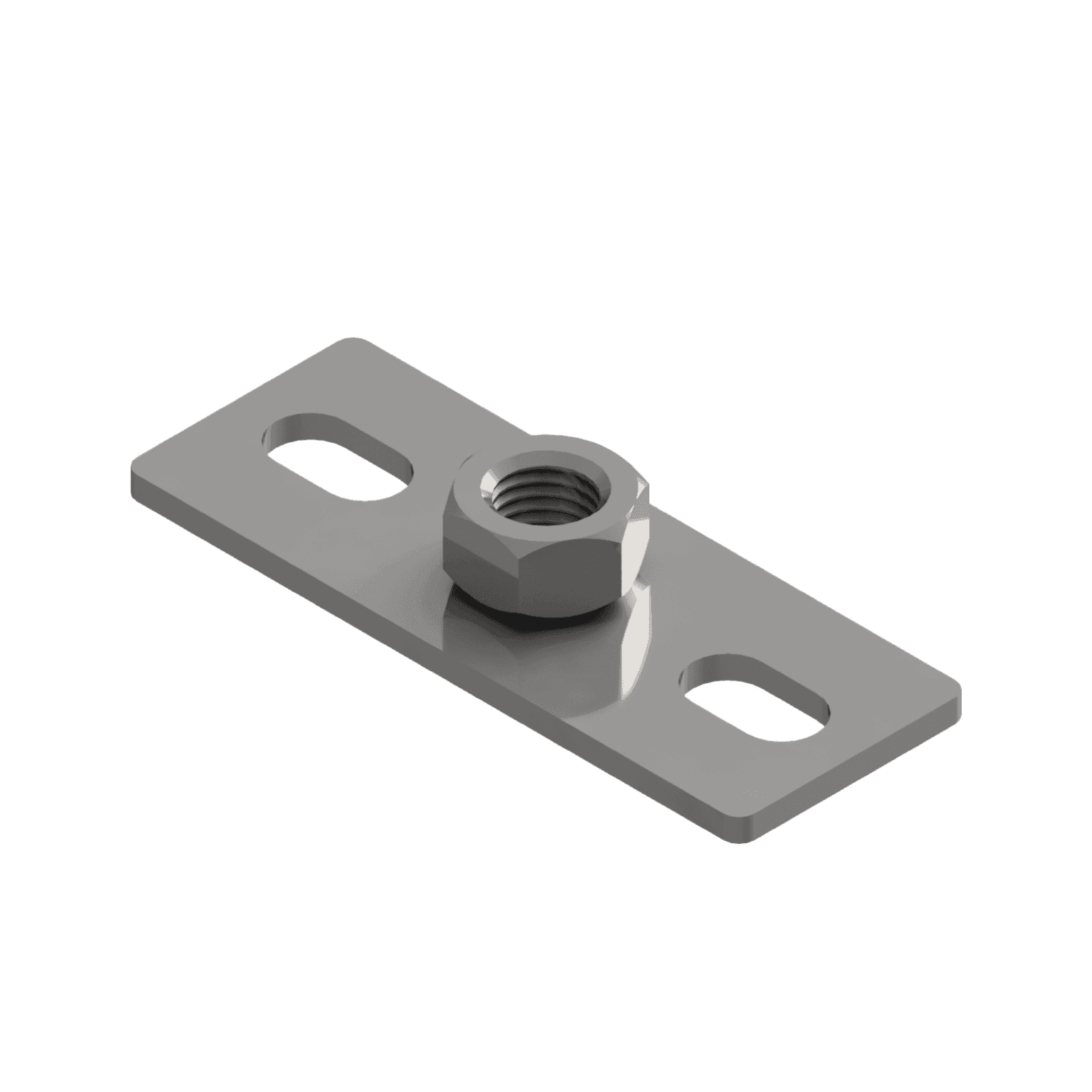

Base Plate TR
Pre Fabricated mounting plate for installation of threaded rods
- Thread
- M8, M10, M12, M16
- Variants
- 7
Application
- Secured mounting of threaded rods
Features & benefits
Quick and easy to Install
Secure installation of threaded rods is ensured by an all-around welded hexagonal nut.
Article list
Variants & article numbers
Add the sizes you need to your RFQ basket. Pricing is quoted by our sales team based on quantity and project.
7 of 7
| Article no. | Description | Design | Thread | RFQ |
|---|---|---|---|---|
| FX-2927 | FX Base plate TR, 120 x 40 x 4 mm, M8 | 120 x 40 x 4 | M8 | |
| FX-2928 | FX Base plate TR, 120 x 40 x 4 mm, M10 | 120 x 40 x 4 | M10 | |
| FX-2929 | FX Base plate TR, 120 x 40 x 4 mm, M12 | 120 x 40 x 4 | M12 | |
| FX-2930 | FX Base plate TR, 120 x 40 x 4 mm, M16 | 120 x 40 x 4 | M16 | |
| FX-2931 | FX Base plate TR, 80 x 30 x 3 mm, M8 | 80 x 30 x 3 | M8 | |
| FX-2932 | FX Base plate TR, 80 x 30 x 3 mm, M10 | 80 x 30 x 3 | M10 | |
| FX-2933 | FX Base plate TR, 80 x 30 x 3 mm, M12 | 80 x 30 x 3 | M12 |
Downloads
Datasheets
